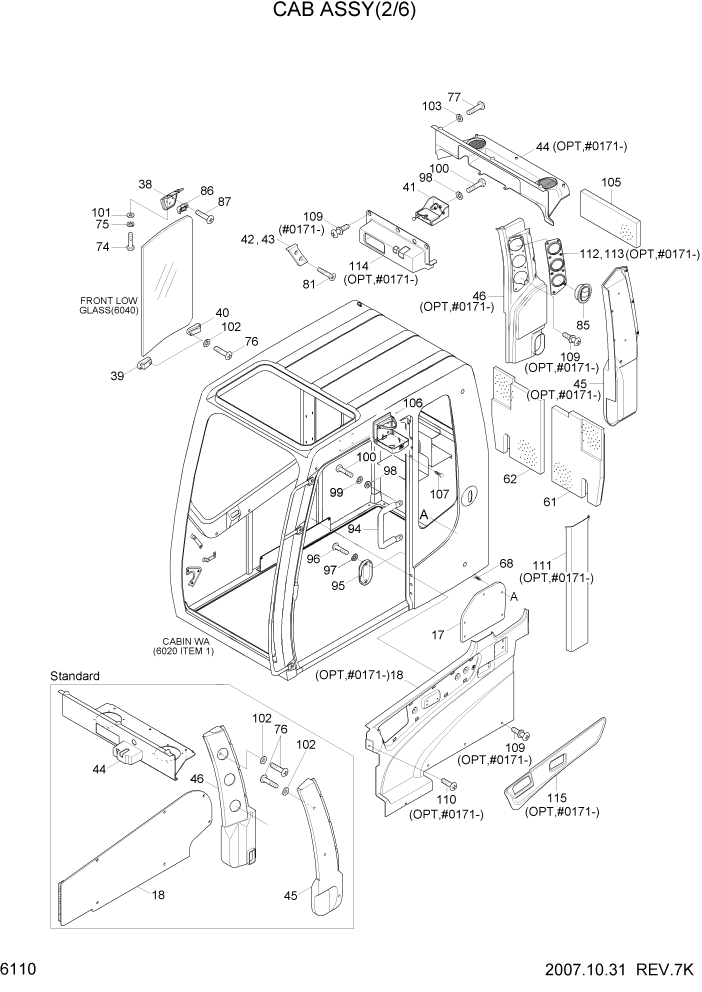

Запчасти Hyundai R80-7 PAGE 6110 CAB ASSY(2/6) СТРУКТУРА

*

@

CAB ASSY

NOT

1шт.

17

71N6-02790

WALL TRIM-LH

1шт.

18

71N6-02801

WALL TRIM-RH

STD-CABIN

1шт.

18

76N6-02800

TRIM ASSY-RH

OPT-UPGRADE CAB #0171

1шт.

38

71N6-03061

HOLDER

1шт.

39

71N6-03071

HOLDER

1шт.

40

71N6-03081

HOLDER

1шт.

41

71N6-03091

LATCH ASSY

1шт.

42

71N6-03101

STOPPER-LH

1шт.

43

71N6-03111

STOPPER-RH

1шт.

44

71N6-03121

COVER-REAR

STD-CABIN

1шт.

44

73N6-20060

SPEAKER COVER

OPT-UPGRADE CAB #0171

1шт.

45

71N6-03131

DUCT-LH

STD-CABIN

1шт.

45

76N6-03130

DUCT ASSY-LH

OPT-UPGRADE CAB #0171

1шт.

46

71N6-03141

DUCT-RH

STD-CABIN

1шт.

46

76N6-03140

DUCT ASSY-RH

OPT-UPGRADE CAB #0171

1шт.

61

71N6-03210

INSULATION FOAM

1шт.

62

71N6-03220

INSULATION FOAM

1шт.

68

E171-1310

PLUG

11шт.

74

S015-080206

BOLT-HEX

2шт.

75

S411-080006

WASHER-SPRING

2шт.

76

S162-060206

SCREW-C/RECESS,RD

12шт.

77

S162-060166

SCREW

6шт.

81

S141-060206

SCREW-FLAT HD

4шт.

85

71N6-03300

AIR VENT

6шт.

86

71N6-03311

HOLDER

1шт.

87

S161-080256

SCREW-RD HD

3шт.

94

71N6-20341

RAIL-HAND

1шт.

95

71N6-03601

COVER-BACK LATCH

1шт.

96

S161-050166

SCREW-RD HD

2шт.

97

S411-050006

WASHER-SPRING

2шт.

98

S411-100006

WASHER-SPRING

5шт.

99

S403-102006

WASHER-PLAIN

2шт.

100

S017-100206

BOLT-HEX

5шт.

101

S403-082006

WASHER-PLAIN

2шт.

102

S403-062006

WASHER-PLAIN

12шт.

103

S411-060006

WASHER-SPRING

6шт.

105

71N6-03660

SPONGE

1шт.

106

71M8-20870

HOLDER-CUP

1шт.

107

S141-040166

SCREW-FLAT HD

4шт.

109

S132-061256

SCREW-W/WASHER

OPT-UPGRADE CAB #0171

25шт.

110

S151-050126

SCREW-TAPPING

OPT-UPGRADE CAB #0171

1шт.

111

73N6-20050

PILLAR COVER-RH

OPT-UPGRADE CAB #0171

1шт.

112

73N6-20220

REAR DUCT COVER-LH

OPT-UPGRADE CAB #0171

1шт.

113

73N6-20210

REAR DUCT COVER-RH

OPT-UPGRADE CAB #0171

1шт.

114

73N6-20070

RADIO COVER

OPT-UPGRADE CAB #0171

1шт.

115

73N6-20040

DECO PANEL-S/TRIM RH

OPT-UPGRADE CAB #0171

1шт.
