Запчасти Hyundai R80-7 PAGE 6210 CAB INTERIOR 2 СТРУКТУРА

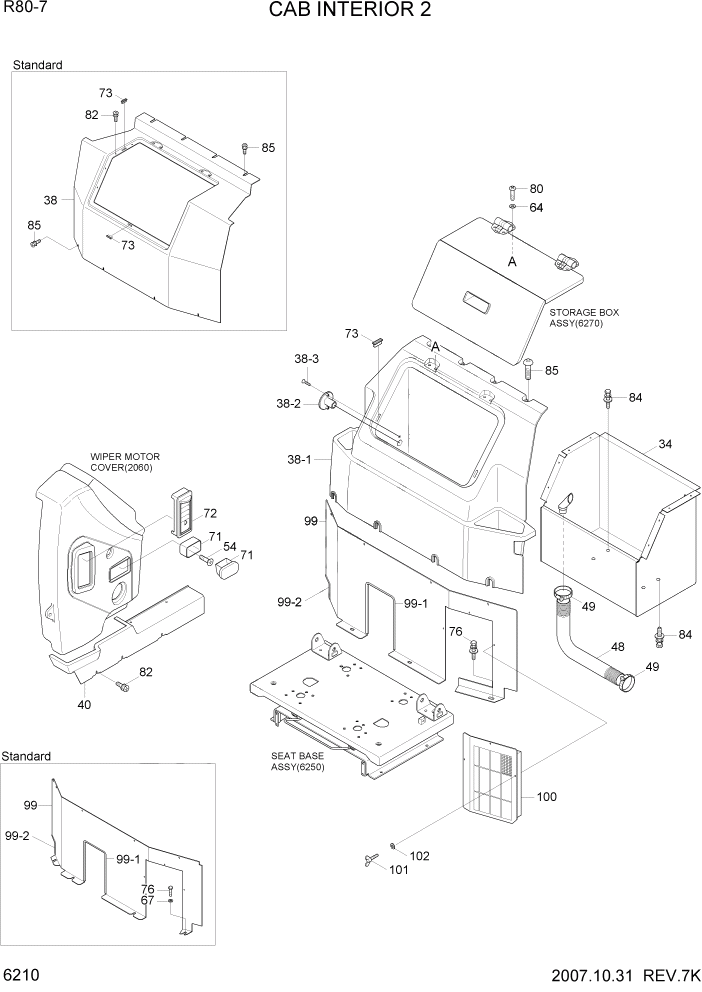

Схема запчастей Hyundai R80-7 - PAGE 6210 CAB INTERIOR 2 СТРУКТУРА

Артикул

Название

Примечание

Количество

34

71N6-20470

STORAGE BOX ASSY

1шт.

38

71N6-20311

AIRCON COVER-UP

STD-CABIN

1шт.

38

73N6-21060

AIRCON COVER ASSY

UPGRADE CAB #0171

1шт.

38-1

73N6-20080

AIRCON COVER

UPGRADE CAB #0171

1шт.

38-2

73N6-20280

HOSE CAP-AC

UPGRADE CAB #0171

1шт.

38-3

S151-040156

SCREW-TAPPING

UPGRADE CAB #0171

2шт.

40

71N6-20331

COVER-DEF,HOSE

1шт.

48

71N6-20360

HOSE-STORAGE BOX

1шт.

49

71N6-20370

CLIP-HOSE

2шт.

54

S141-040166

SCREW-FLAT HD

2шт.

64

S403-052006

WASHER-PLAIN

4шт.

67

S403-102006

WASHER-PLAIN

4шт.

71

E171-1176

ASHTRAY

1шт.

72

71N6-20380

AIR NOZZLE

1шт.

73

71N6-20390

MAGNETIC

STD-CABIN

3шт.

73

71N6-20390

MAGNETIC

UPGRADE CAB #0171

2шт.

76

S017-100166

BOLT-HEX

STD-CABIN

4шт.

76

S037-102026

BOLT-W/WASHER

UPGRADE CAB #0171

4шт.

80

S161-050206

SCREW-CROSS ROUND

4шт.

82

S132-061676

SCREW-W/WASHER

17шт.

84

S037-102026

BOLT-W/WASHER

4шт.

85

S132-062076

SCREW-W/WASHER

STD-CABIN

8шт.

85

S002-06015B

SCREW-TRUS HEAD

UPGRADE CAB #0171

13шт.

99

71N6-20292

AIRCON COVER-LOW

STD-CABIN

1шт.

99

73N6-21050

AIRCON COVER LOW

UPGRADE CAB #0171

1шт.

99-1

S791-016054

GROMMET-PLATE

1шт.

99-2

S791-016010

GROMMET-PLATE

1шт.

100

11N6-91340

FILTER-REC

UPGRADE CAB #0171

1шт.

101

S091-060166

BOLT-WING

UPGRADE CAB #0171

3шт.

102

S403-06200B

WASHER-PLAIN

UPGRADE CAB #0171

3шт.

Выбрано товаров: 30
