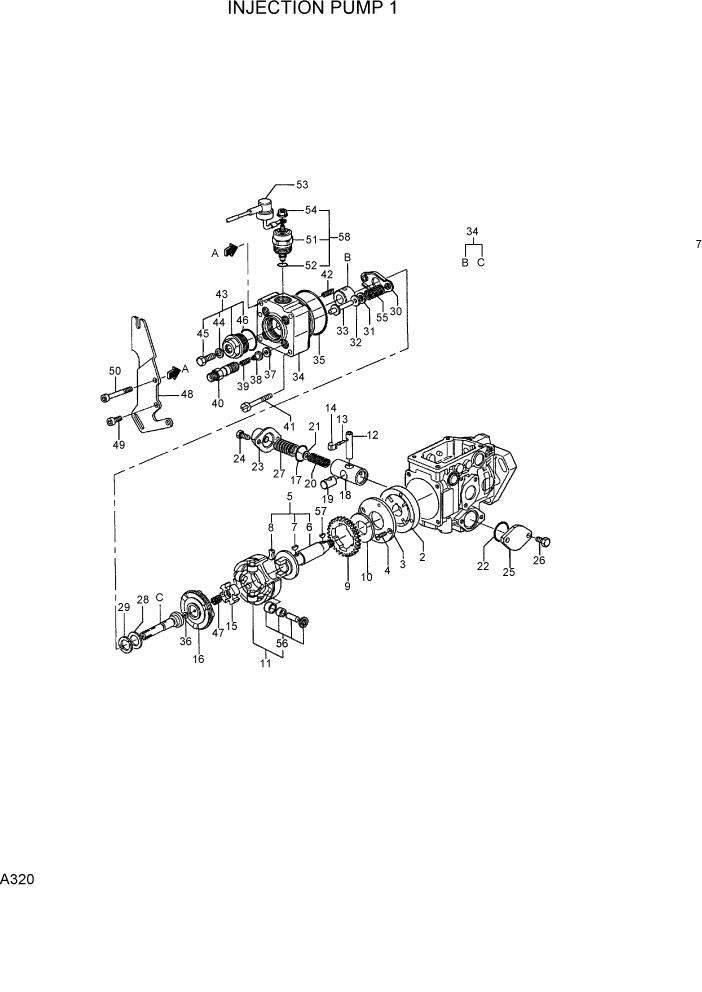

Запчасти Hyundai R75-7 PAGE A320 INJECTION PUMP 1 ДВИГАТЕЛЬ БАЗА

1

XJAF-01787

PUMP ASSY-FUEL INJ

1шт.

2

XJAF-01292

PUMP-FEED

1шт.

3

XJAF-01293

COVER

1шт.

4

XJAF-01281

SCREW

2шт.

5

XJAF-01300

SHAFT-DRIVE

1шт.

6

XJAF-01299

SHAFT-DRIVE

1шт.

7

XJAF-01289

KEY-WOODRUFF

1шт.

8

XJAF-01301

DAMPER

2шт.

9

XJAF-01302

GEAR

1шт.

10

XJAF-01303

WASHER

1шт.

11

XJAF-01306

ROLLER ASSY

1шт.

12

XJAF-01316

PIN

1шт.

13

XJAF-01317

PIN

1шт.

14

XJAF-01318

CLIP

1шт.

15

XJAF-01304

DISK

1шт.

16

XJAF-01308

CAM-DISK

1шт.

17

XJAF-01468

O-RING

1шт.

18

XJAF-01321

PISTON

1шт.

19

XJAF-01315

SLIDER

1шт.

20

XJAF-01323

SPRING-TIMER

ARшт.

20

XJAF-01324

SPRING-TIMER

ARшт.

20

XJAF-01325

SPRING-TIMER

ARшт.

21

XJAF-01499

SHIM(0.1T)

ARшт.

21

XJAF-01500

SHIM(0.2T)

ARшт.

21

XJAF-01501

SHIM(0.25T)

ARшт.

21

XJAF-01502

SHIM(1.0T)

ARшт.

21

XJAF-01503

SHIM(2.0T)

ARшт.

21

XJAF-01504

SHIM(0.5T)

ARшт.

21

XJAF-01505

SHIM(0.75T)

ARшт.

22

XJAF-01468

O-RING

1шт.

23

XJAF-01320

COVER

1шт.

24

XJAF-01487

BOLT

2шт.

25

XJAF-01319

COVER

1шт.

26

XJAF-01487

BOLT

2шт.

27

XJAF-01322

SPRING-TIMER

1шт.

28

XJAF-01309

SHIM

1шт.

29

XJAF-01310

WASHER

1шт.

30

XJAF-01311

SEAT-SPRING

1шт.

31

XJAF-01313

SEAT-SPRING

2шт.

32

XJAF-01479

SHIM(0.5T)

ARшт.

32

XJAF-01480

SHIM(0.8T)

ARшт.

32

XJAF-01481

SHIM(1.0T)

ARшт.

32

XJAF-01482

SHIM(1.2T)

ARшт.

32

XJAF-01483

SHIM(1.5T)

ARшт.

32

XJAF-01484

SHIM(1.8T)

ARшт.

32

XJAF-01485

SHIM(2.0T)

ARшт.

32

XJAF-01493

SHIM(0.9T)

ARшт.

32

XJAF-01494

SHIM(1.1T)

ARшт.

32

XJAF-01495

SHIM(1.3T)

ARшт.

32

XJAF-01496

SHIM(1.4T)

ARшт.

32

XJAF-01497

SHIM(1.6T)

ARшт.

32

XJAF-01498

SHIM(1.7T)

ARшт.

32

XJAF-01506

SHIM(2.1T)

ARшт.

32

XJAF-01507

SHIM(2.2T)

ARшт.

32

XJAF-01508

SHIM(2.3T)

ARшт.

32

XJAF-01509

SHIM(2.4T)

ARшт.

32

XJAF-01510

SHIM(2.5T)

ARшт.

32

XJAF-01511

SHIM(2.6T)

ARшт.

32

XJAF-01512

SHIM(2.7T)

ARшт.

32

XJAF-01513

SHIM(2.8T)

ARшт.

32

XJAF-01514

SHIM(2.9T)

ARшт.

32

XJAF-01515

SHIM(3.0T)

ARшт.

32

XJAF-01516

SHIM(3.1T)

ARшт.

32

XJAF-01517

SHIM(3.2T)

ARшт.

32

XJAF-01518

SHIM(3.3T)

ARшт.

32

XJAF-01519

SHIM(3.4T)

ARшт.

32

XJAF-01520

SHIM(0.4T)

ARшт.

32

XJAF-01521

SHIM(0.6T)

ARшт.

32

XJAF-01522

SHIM(0.7T)

ARшт.

32

XJAF-01523

SHIM(1.9T)

ARшт.

32

XJAF-01524

SHIM(0.2T)

ARшт.

33

XJAF-01314

PIN-GUIDE

2шт.

34

XJAF-01326

HEAD-DISTRIBUTOR

1шт.

35

XJAF-01461

O-RING

1шт.

36

XJAF-01327

SHIM(1.90T)

ARшт.

36

XJAF-01328

SHIM(1.92T)

ARшт.

36

XJAF-01329

SHIM(1.94T)

ARшт.

36

XJAF-01330

SHIM(1.96T)

ARшт.

36

XJAF-01331

SHIM(1.98T)

ARшт.

36

XJAF-01332

SHIM(2.00T)

ARшт.

36

XJAF-01333

SHIM(2.02T)

ARшт.

36

XJAF-01334

SHIM(2.04T)

ARшт.

36

XJAF-01335

SHIM(2.06T)

ARшт.

36

XJAF-01336

SHIM(2.08T)

ARшт.

36

XJAF-01337

SHIM(2.10T)

ARшт.

36

XJAF-01338

SHIM(2.12T)

ARшт.

36

XJAF-01339

SHIM(2.14T)

ARшт.

36

XJAF-01340

SHIM(2.16T)

ARшт.

36

XJAF-01341

SHIM(2.18T)

ARшт.

36

XJAF-01342

SHIM(2.20T)

ARшт.

36

XJAF-01343

SHIM(2.22T)

ARшт.

36

XJAF-01344

SHIM(2.24T)

ARшт.

36

XJAF-01345

SHIM(2.26T)

ARшт.

36

XJAF-01346

SHIM(2.28T)

ARшт.

36

XJAF-01347

SHIM(2.30T)

ARшт.

36

XJAF-01348

SHIM(2.32T)

ARшт.

36

XJAF-01349

SHIM(2.34T)

ARшт.

36

XJAF-01350

SHIM(2.36T)

ARшт.

36

XJAF-01351

SHIM(2.38T)

ARшт.

36

XJAF-01352

SHIM(2.40T)

ARшт.

36

XJAF-01353

SHIM(2.42T)

ARшт.

36

XJAF-01354

SHIM(2.44T)

ARшт.

36

XJAF-01355

SHIM(2.46T)

ARшт.

36

XJAF-01356

SHIM(2.48T)

ARшт.

36

XJAF-01357

SHIM(2.50T)

ARшт.

36

XJAF-01358

SHIM(2.52T)

ARшт.

36

XJAF-01359

SHIM(2.54T)

ARшт.

36

XJAF-01360

SHIM(2.56T)

ARшт.

36

XJAF-01361

SHIM(2.58T)

ARшт.

36

XJAF-01362

SHIM(2.60T)

ARшт.

36

XJAF-01363

SHIM(2.62T)

ARшт.

36

XJAF-01364

SHIM(2.64T)

ARшт.

36

XJAF-01365

SHIM(2.66T)

ARшт.

36

XJAF-01366

SHIM(2.68T)

ARшт.

36

XJAF-01367

SHIM(2.70T)

ARшт.

36

XJAF-01368

SHIM(2.72T)

ARшт.

36

XJAF-01369

SHIM(2.74T)

ARшт.

36

XJAF-01370

SHIM(2.76T)

ARшт.

36

XJAF-01371

SHIM(2.78T)

ARшт.

36

XJAF-01372

SHIM(2.80T)

ARшт.

36

XJAF-01373

SHIM(2.82T)

ARшт.

36

XJAF-01374

SHIM(2.84T)

ARшт.

36

XJAF-01375

SHIM(2.86T)

ARшт.

36

XJAF-01376

SHIM(2.88T)

ARшт.

36

XJAF-01377

SHIM(2.90T)

ARшт.

36

XJAF-01378

SHIM(1.74T)

ARшт.

36

XJAF-01379

SHIM(1.76T)

ARшт.

36

XJAF-01380

SHIM(1.78T)

ARшт.

36

XJAF-01381

SHIM(1.80T)

ARшт.

36

XJAF-01382

SHIM(1.82T)

ARшт.

36

XJAF-01383

SHIM(1.84T)

ARшт.

36

XJAF-01384

SHIM(1.86T)

ARшт.

36

XJAF-01385

SHIM(1.88T)

ARшт.

37

XJAF-01390

GASKET

4шт.

38

XJAF-01388

VALVE-DELIVERY

4шт.

39

XJAF-01389

SPRING

4шт.

40

XJAF-01391

HOLDER

4шт.

41

XJAF-01282

SCREW

3шт.

42

XJAF-01454

SPRING

2шт.

43

XJAF-01386

PLUG

1шт.

44

XJAF-01182

GASKET

1шт.

45

XJAF-01387

BOLT

1шт.

46

XJAF-01465

O-RING

1шт.

47

XJAF-01305

SPRING

1шт.

48

XJAF-01542

BRACKET

1шт.

49

XJAF-01175

BOLT-SOCKETHEAD

2шт.

50

XJAF-01486

BOLT-SOCKETHEAD

1шт.

51

XJAF-01490

VALVE-MAGNET

1шт.

52

XJAF-01472

O-RING

1шт.

53

XJAF-01491

WIRE

1шт.

54

XJAF-01489

NUT

1шт.

55

XJAF-01312

SPRING-PLUNGER KIT

1шт.

56

XJAF-01307

ROLLER KIT

1шт.

57

XJAF-01181

KEY-WOODRUFF

1шт.

58

XJAF-01525

VALVE KIT

1шт.
