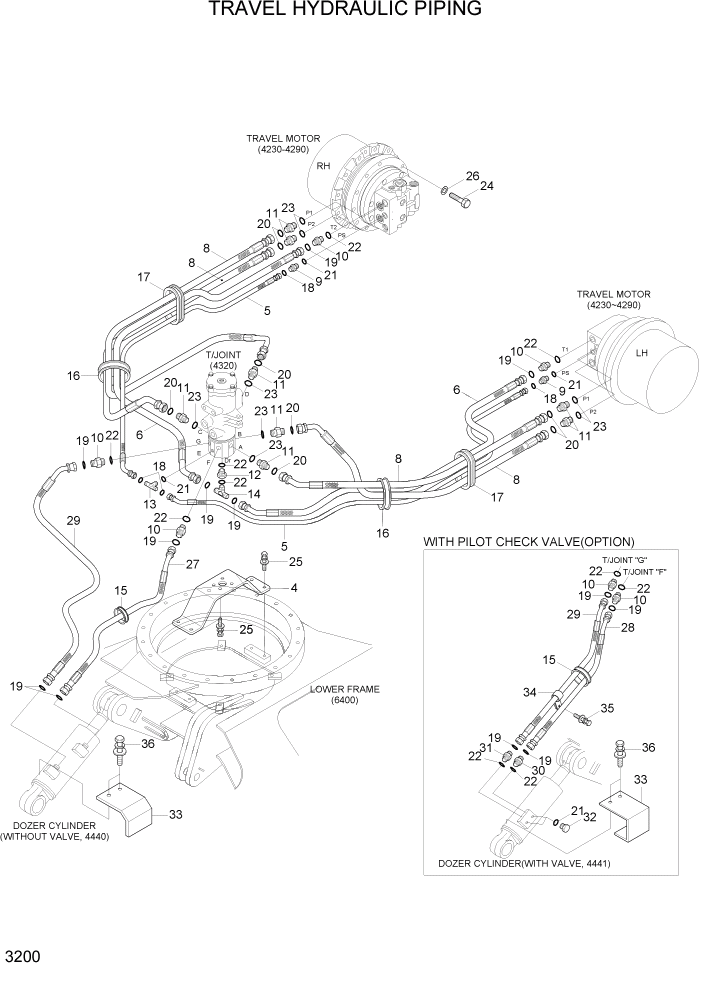

Запчасти Hyundai R55-7A PAGE 3200 TRAVEL HYDRAULIC PIPING ГИДРАВЛИЧЕСКАЯ СИСТЕМА

4

31M8-40110

BRACKET-T/JOINT

1шт.

5

P920-042027

HOSE ASSY-ORFS 0X45

2шт.

6

P920-062025

HOSE ASSY-ORFS 0X45

2шт.

8

P920-085025

HOSE ASSY-ORFS 0X45

4шт.

9

X500-110001

CONNECTOR-ORFS

2шт.

10

X500-110002

CONNECTOR-ORFS

4шт.

11

X500-110003

CONNECTOR-ORFS

8шт.

12

31EK-30130

CONNECTOR-LONG

1шт.

13

X810-045151

TEE-B/TYPE,ORFS

1шт.

14

X810-065252

TEE-B/TYPE,ORFS

1шт.

15

S760-070806

GROMMET

1шт.

16

S760-071812

GROMMET

2шт.

17

S760-081208

GROMMET

2шт.

18

S621-011001

O-RING

4шт.

19

S621-012001

O-RING

8шт.

20

S621-014001

O-RING

8шт.

21

S631-011004

O-RING

W/O VALVE

3шт.

21

S631-011004

O-RING

WITH VALVE

5шт.

22

S631-014004

O-RING

W/O VALVE

6шт.

22

S631-014004

O-RING

W/O VALVE

8шт.

23

S631-018004

O-RING

8шт.

24

S017-14040A

BOLT-HEX(COATING)

24шт.

25

S037-123526

BOLT-W/WASHER

8шт.

26

S441-140006

WASHER-HARDENED

24шт.

27

P923-065019

HOSE ASSY-ORFS 0X45

W/O VALVE

1шт.

28

P923-065023

HOSE ASSY-ORFS 0X45

1шт.

29

P923-065025

HOSE ASSY-ORFS 0X45

1шт.

30

31M8-40161

ELBOW 90-ORIFICE(2.5)

WITH VALVE

1шт.

31

31M8-41091

ELBOW 90-ORIFICE(3.0)

WITH VALVE

1шт.

32

P220-110102

PLUG

WITH VALVE

2шт.

33

31M8-40120

COVER-DOZER CYL

W/O VALVE

1шт.

33

31M8-40130

COVER-DOZER CYL

WITH VALVE

1шт.

34

81FF-80120

CLAMP-TUBE

WITH VALVE

1шт.

35

S035-082026

BOLT-W/WASHER

WITH VALVE

1шт.

36

S037-122526

BOLT-W/WASHER

2шт.
