Запчасти Hyundai R55-7A PAGE 8100 DECALS ДРУГИЕ ЧАСТИ

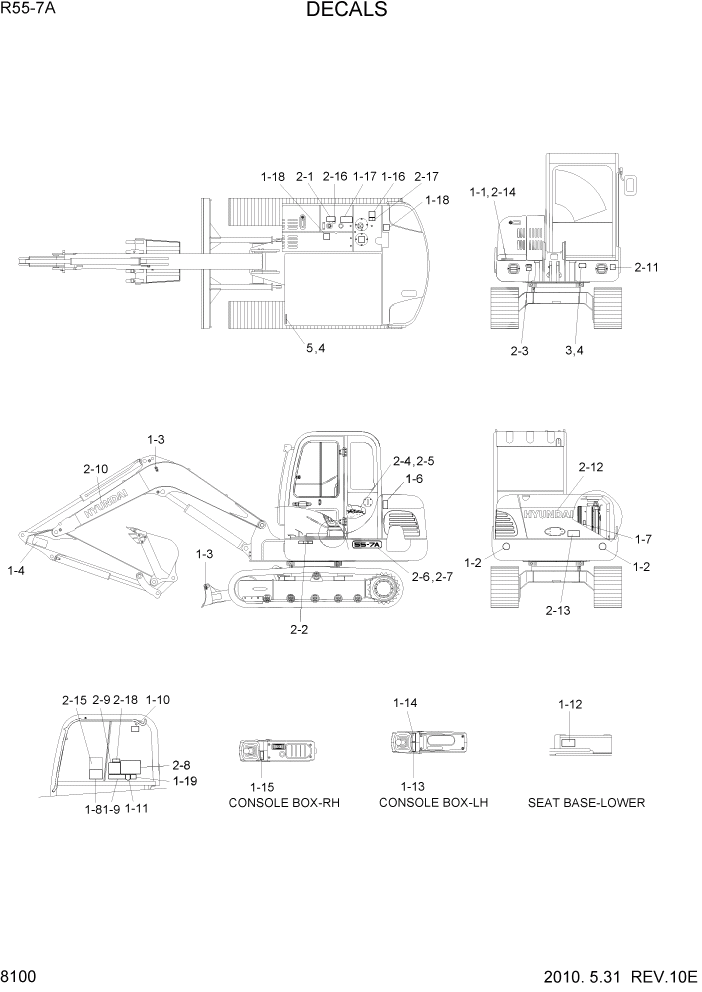

Схема запчастей Hyundai R55-7A - PAGE 8100 DECALS ДРУГИЕ ЧАСТИ

Артикул

Название

Примечание

Количество

1

91M8-00100

DECAL KIT(A)

1шт.

1-1

91M8-02120

BATTERY ACCIDENT

1шт.

1-2

91M8-04020

REFLECTING

2шт.

1-3

91M8-05110

LIFTING POINT

4шт.

1-4

91M8-06110

KEEP CLEAR-ATT

2шт.

1-6

91M8-07020

KEEP CLEAR-SIDE

2шт.

1-7

91M8-07110

CAUTION-ENG

1шт.

1-8

91M8-07220

CONTROL-SWIVEL

ISO PATT

1шт.

1-8

91M8-08220

CONTROL-SWIVEL

NON ISO PATT(C)

1шт.

1-9

91M8-07241

CAUTIONS-CAB

1шт.

1-1

91M8-07250

SAFETY-FR WINDOW

2шт.

1-11

91M8-07260

EMERGENCY EXIT

1шт.

1-12

91M8-07270

AIRCON FILTER

1шт.

1-13

91M8-07300

DECAL-CONSOLE TILTING

1шт.

1-14

91M8-07310

CONTTOL IDEOGRAM-LH

1шт.

1-14

91M8-08310

CONTROL IDEOGRAM-LH

1шт.

1-15

91M8-07320

CONTROL IDEOGRAM-RH

1шт.

1-16

91N6-03111

DECAL-OIL LUBRICATION

1шт.

1-17

91N6-03140

DECAL-FALLING

1шт.

1-18

91N6-07131

DECAL-NO STEP

2шт.

1-19

91M8-07350

BOOM SWING LOCK

1шт.

2

91M8-01201

DECAL KIT(B)

#0191

1шт.

2

91M8-01202

DECAL KIT(B)

#0192 - #0220

1шт.

2

91M8-01204

DECAL KIT(B)

#0221

1шт.

2-1

91M8-01140

DECAL-FUELING

1шт.

2-2

91M8-04110

WARNINGS-FRAME

1шт.

2-3

91M8-04140

GREASE

1шт.

2-4

91M8-17240

ROBEX-LH

1шт.

2-5

91M8-17250

ROBEX-RH

1шт.

2-6

91M8-18110

MODEL NAME-LH

1шт.

2-7

91M8-18120

MODEL NAME-RH

1шт.

2-8

91M8-18160

SERVICE INSTRUCTION

#0191

1шт.

2-8

91M8-18161

SERVICE INSTRUCTION

#0192 - #0220

1шт.

2-8

91M8-18162

SERVICE INSTRUCTION

#0221

1шт.

2-9

91M8-18400

LIFTING CHART KIT

1шт.

2-1

91N6-23050

HYUNDAI LOGO-BOOM

2шт.

2-11

91N6-22080

NOISE LWA-98DB

1шт.

2-12

91N6-23070

HYUNDAI LOGO

1шт.

2-13

91M8-07010

KEEP CLEAR-REAR

1шт.

2-14

91M8-02140

ECU CONNECTOR

1шт.

2-15

91M8-07360

MACHINE CTRL-CABIN

1шт.

2-16

91M8-03001

FUEL-LOW SULFUR

1шт.

2-17

91Q6-03230

DECAL-FUEL SHUT OFF

#0221

1шт.

2-18

91Q4-07180

DECAL-WATER SEPARATOR

#0221

1шт.

3

91E1-14110

NAME PLATE

EXPORT

1шт.

3

91E1-14130

NAME PLATE

EUROPE

1шт.

4

91EK-12010

RIVET

8шт.

5

91M8-01280

PLATE-ROPS

1шт.

Выбрано товаров: 48
