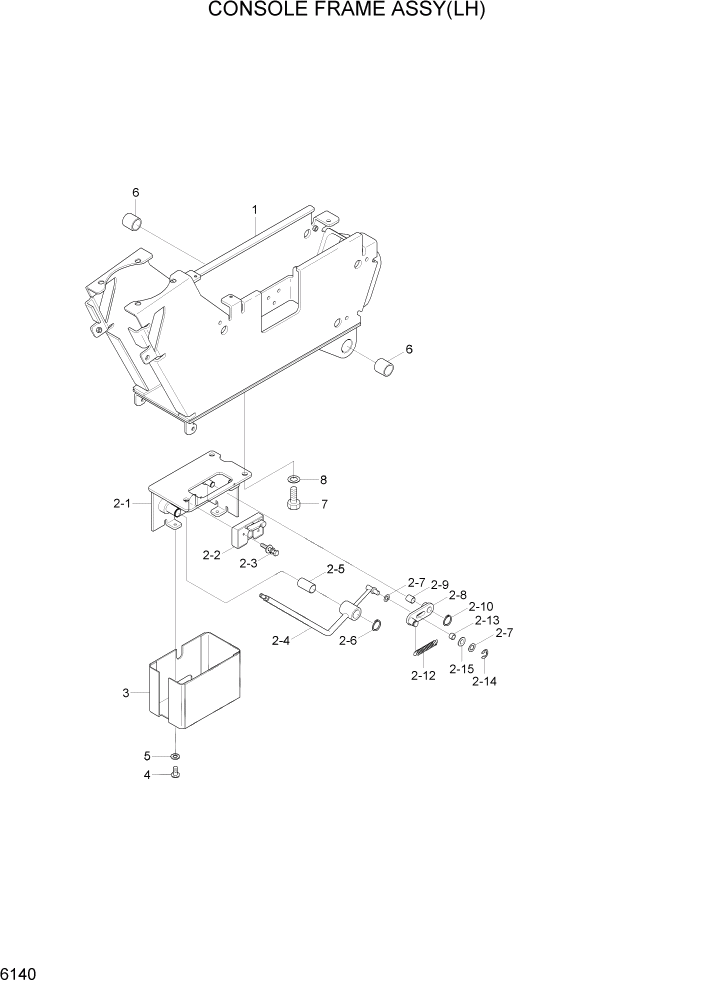

Запчасти Hyundai R55-7A PAGE 6140 CONSOLE FRAME ASSY(LH) СТРУКТУРА

*

72M8-21180

CONSOLE FRAME ASSY(LH)

1шт.

1

72M8-20280

FRAME WA-CONSOLE(LH)

1шт.

2

71M8-20490

BRACKET ASSY-TILT

1шт.

2-1

71M8-20501

BRACKET WA-TILT

1шт.

2-2

71M8-20570

LATCH-TILT

1шт.

2-3

S035-062026

BOLT-W/WASHER

2шт.

2-4

71M8-20580

SAFETY LEVER WA

1шт.

2-5

S731-020025

BUSHING-DU

1шт.

2-6

S601-020004

RING-RETAINING

1шт.

2-7

S403-08200B

WASHER-PLAIN

2шт.

2-8

71M8-20651

LINK-SAFETY LEVER

1шт.

2-9

S731-010012

BUSHING-DU

1шт.

2-1

S601-010002

RING-RETAINING

1шт.

2-12

71N6-21610

SPRING

1шт.

2-13

71M8-21420

ROLLER

1шт.

2-14

P560-040002

RING-E/SNAP

1шт.

2-15

71M8-21430

SHIM

1шт.

3

71M8-21170

COVER-TILT LATCH

1шт.

4

S161-060106

SCREW-CROSS R/ROUND

2шт.

5

S403-062006

WASHER-PLAIN

2шт.

6

S731-020025

BUSHING-DU

2шт.

7

S015-080156

BOLT-HEX

3шт.

8

S403-082006

WASHER-PLAIN

3шт.
