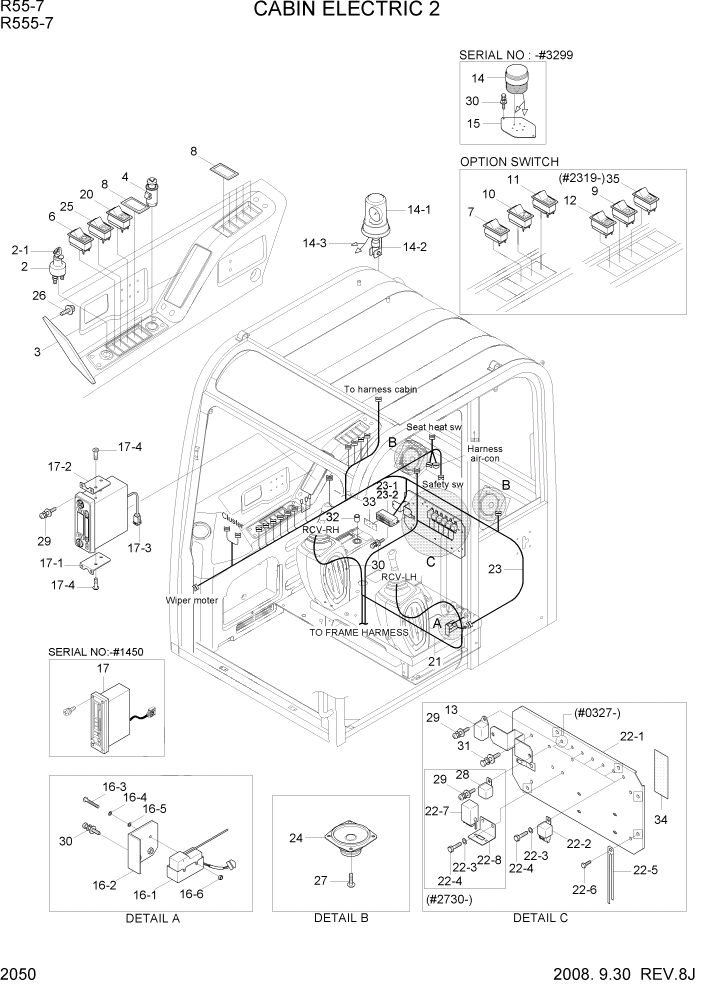

Запчасти Hyundai R55-7 PAGE 2050 CABIN ELECTRIC 2 ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

2

21N4-10400

SWITCH ASSY-INCL KEY

SAME

1шт.

2

21N4-10430

SWITCH ASSY-INCL KEY

VARIET #3297

1шт.

2

21N3-00020

SWITCH ASSY-INCL KEY

VARIET #3298

1шт.

2-1

21N4-10400K

KEY-START

SAME

1шт.

2-1

21N4-10430K100

KEY-START

VARIET #3297

1шт.

2-1

21N3-00030

KEY-START

VARIET #3298

1шт.

3

21M8-50011

CLUSTER ASSY

#2318

1шт.

3

21M8-51010

CLUSTER ASSY

#2319 - #3051

1шт.

3

21M8-51011

CLUSTER ASSY

#3052

1шт.

4

21S4-01110

LIGHTER-CIGAR

1шт.

6

21M8-01101

SWITCH-MAIN LIGHT

1шт.

7

21M8-01111

SWITCH-AIRCON

OPTION

1шт.

8

21E6-10460

COVER

8шт.

9

21S1-31600

SWITCH-BEACON

OPTION

1шт.

10

21M5-25030

SWITCH-BREAKER

OPTION

1шт.

11

21M6-53850

SWITCH-QUICK CLAMP

OPTION

1шт.

12

21M6-53800

SW-TRAVEL ALARM

OPTION

1шт.

13

21M6-54070

TIMER ASSY

1шт.

14

F23842010

STROBE LAMP-RED

OPTION #3299

1шт.

14

21N1-00010

BEACON LAMP ASSY(12V)

OPTION #3300

1шт.

14

21FG-10810

STROBE LAMP-AMBER

OPTION #2319 - #3299

1шт.

14

21FG-10820

STROBE LAMP-BLUE

OPTION #2319 - #3299

1шт.

14-1

21Q4-20700

BEACON LAMP

#3300

1шт.

14-2

21Q4-20600

BRACKET-TILT

#3300

1шт.

14-3

21N4-02830

HARNESS-BEACON LAMP

#3300

1шт.

15

21M8-01901

PLATE

OPTION #0235

1шт.

15

21M8-01902

PLATE

OPTION #0236 - #3299

1шт.

16

21M8-01410

SWITCH ASSY-SAFETY

1шт.

16-1

21M8-01400

SWITCH-SAFETY

1шт.

16-2

21M8-01430

PLATE

1шт.

16-3

S015-040306

BOLT-HEX

2шт.

16-4

S411-040006

WASHER-SPRING

2шт.

16-5

S403-042006

WASHER-PLAIN

4шт.

16-6

S205-041002

NUT-HEX

2шт.

N17

@

CASSETTE RADIO

NOT

1шт.

17

21M6-40020

CASSETTE RADIO

EU ONLY

1шт.

17

21M6-40030

CASSETTE RADIO

USA ONLY

1шт.

N17

21M6-40040

CASSETTE RADIO

NOT

1шт.

17

21M8-40010

CASSETTE RADIO

#1451 - #3250

1шт.

17

21M8-40020

CASSETTE RADIO

#3251

1шт.

17-1

21M8-10470

BRACKET-LH

#1451

1шт.

17-2

21M8-10460

BRACKET-RH

#1451

1шт.

17-3

21N8-01610

HARNESS-EXT WIRE

#1451

1шт.

17-4

S141-050102

SCREW-FLAT HD

#1451

4шт.

20

21M8-32020

SWITCH-WASHER

#2729

1шт.

20

21M8-32021

SWITCH-WASHER

#2730

1шт.

21

21M8-02302

HARNESS-CONSOLE

1шт.

22

21M8-01701

RELAY BOARD ASSY

#0326

1шт.

22

21M8-01702

RELAY BOARD ASSY

#0327 - #2729

1шт.

22

21M8-01703

RELAY BOARD ASSY

#2730

1шт.

22-1

21M8-01711

PLATE

#0235

1шт.

22-1

21M8-01712

PLATE

#0236 - #2729

1шт.

22-1

21M8-01713

PLATE

#2730

1шт.

22-2

21E3-0011

RELAY

#0326

5шт.

22-2

21E3-0011

RELAY

#0327

6шт.

22-3

S411-060006

WASHER-SPRING

5шт.

22-4

S015-060126

BOLT-HEX

5шт.

22-5

21E9-00170

CLIP-HARNESS

5шт.

22-6

S017-100102

BOLT-HEX

5шт.

22-7

21M6-40060

RELAY-INT WIPER

#2730

1шт.

22-8

21M8-32720

PLATE

#2730

1шт.

23

21M8-02202

HARNESS-CABIN ROOM

#0326

1шт.

23

21M8-02203

HARNESS-CABIN ROOM

#0327 - #1880

1шт.

23

21M8-02204

HARNESS-CABIN ROOM

#1881 - #2729

1шт.

23

21M8-02205

HARNESS-CABIN ROOM

#2730 - #3252

1шт.

23

21M8-02206

HARNESS-CABIN ROOM

#3253

1шт.

23-1

21L7-00250

FUSE BOX

#0001

1шт.

23-2

21M8-02111

COVER-FUSE BOX

#0001

1шт.

24

21LB-20400

SPEAKER ASSY

#0409

2шт.

24

21LB-20401

SPEAKER ASSY

#0410 - #1450

2шт.

24

21LB-34270

SPEAKER ASSY

#1451

2шт.

25

21M6-53300

SWITCH-WIPER/WASHER

#2729

1шт.

25

21M8-32011

SWITCH-INT WIPER

#2730

1шт.

26

S161-050456

SCREW-CROSS R/ROUND

4шт.

27

S161-040206

SCREW-CROSS R/ROUND

8шт.

28

340005070

RELAY-12V,5P

LOCAL

1шт.

29

S131-051546

SCREW-W/WASHER

#2729

5шт.

29

S131-051546

SCREW-W/WASHER

#2730

6шт.

30

S035-062026

BOLT-W/WASHER

#3299

3шт.

31

S035-081526

BOLT-W/WASHER

4шт.

32

21M8-01420

SOCKET ASSY

1шт.

33

21M8-02110

DECAL-FUSE BOX

1шт.

34

21M8-02141

DECAL-RELAY

#0001

1шт.

35

21M8-43020

SWITCHT-SEAT HEATING

#2319

1шт.
