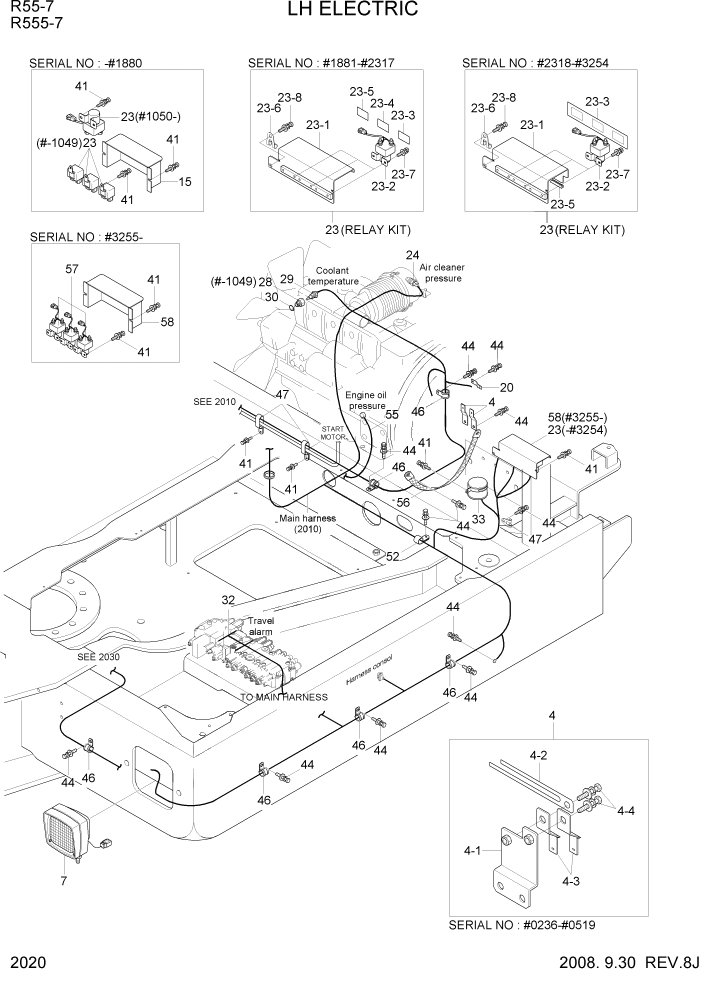

Запчасти Hyundai R55-7 PAGE 2020 LH ELECTRIC ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

4

21M8-01640

PLATE ASSY

#0236 - #0519

1шт.

4

21E7-0612

PLATE-CONNECTOR

#0520

2шт.

4-1

21M8-01650

PLATE ASSY

#0236 - #0519

1шт.

4-2

S593-001302

CLIP-HARNESS

#0236 - #0519

1шт.

4-3

21E7-0612

PLATE-CONNECTOR

#0236 - #0519

2шт.

4-4

S037-102026

BOLT-W/WASHER

#0236 - #0519

2шт.

7

21M8-01300

LAMP-WORK

1шт.

15

21M8-01961

COVER

#1481

1шт.

15

21M8-01962

COVER

#1482 - #1880

1шт.

20

21E7-0612

PLATE-CONNECTOR

2шт.

23

21S7-00100

RELAY-START

#1049

3шт.

23

21S7-00101

RELAY-START

#1050 - #1880

3шт.

23

21M8-00110

RELAY KIT ASSY

#1881 - #2317

1шт.

23

21M8-00111

RELAY KIT ASSY

#2318 - #3254

1шт.

23-1

21M8-00120

PLATE

#1881 - #2317

1шт.

23-1

21M8-00121

PLATE

#2318 - #3254

1шт.

23-2

21S7-00101

RELAY-START

#1881 - #3254

3шт.

23-3

21M8-00160

DECAL-RELAY KIT

#2318 - #3254

1шт.

23-4

21M8-00140

DECAL-START

#1881 - #2317

1шт.

23-5

21M8-00150

DECAL-FUEL CUT OFF

#1881 - #2317

1шт.

23-6

S593-001302

CLIP-HARNESS

#1881 - #3254

1шт.

23-7

S161-060106

SCREW-CROSS R/ROUND

#1881 - #3254

6шт.

23-8

S035-062026

BOLT-W/WASHER

#1881 - #3254

1шт.

24

330003050

SENSOR-AIR CLEANER

#0829

1шт.

24

11FG-20110

SENSOR-AIR CLEANER

#0830

1шт.

25

21M8-01210

STRAP-EARTH

#0001

1шт.

28

21M6-55111

FITTING-TEMP SWITCH

#1049

1шт.

29

21EN-40100

SENDER-TEMP

#1049

1шт.

29

21EA-62010

SENDER-WATER TEMP

#1050

1шт.

30

21EA-50260

PACKING-TEMP SW

#1049

1шт.

30

P392-160000

WASHER-COPPER

#1050

1шт.

32

21M8-02500

HARNESS-ALARM

1шт.

33

21E3-2003

BUZZER-BACK UP

#1049

1шт.

33

21M8-20030

BUZZER-BACK UP

#1050

1шт.

41

S035-062026

BOLT-W/WASHER

#1880

9шт.

41

S035-062026

BOLT-W/WASHER

#1881

6шт.

42

S035-083026

BOLT-W/WASHER

1шт.

44

S037-102026

BOLT-W/WASHER

20шт.

46

S593-000902

CLIP-HARNESS

16шт.

47

21E9-00170

CLIP-HARNESS

#0001

5шт.

52

S543-260002

CLAMP-TUBE

1шт.

55

21M8-02150

HARNESS-EXT,ENG OIL

#0001

1шт.

56

21M8-01210

STRAP-EARTH

1шт.

57

21S7-00101

RELAY-START

#3255 - #3285

3шт.

57

21M9-00100

RELAY-START

#3286

3шт.

58

21M8-01962

COVER

#3255 - #3285

1шт.

58

21M8-00121

PLATE

#3286

1шт.
