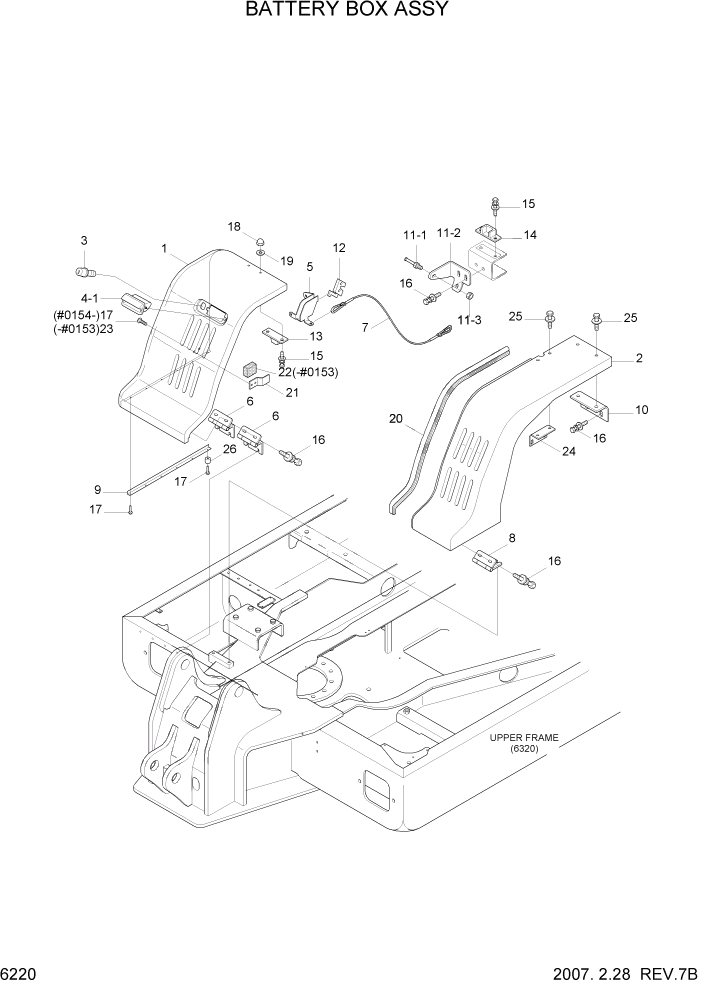

Запчасти Hyundai R55-7 PAGE 6220 BATTERY BOX ASSY СТРУКТУРА

*

71M8-41001

BATTERY BOX ASSY

1шт.

1

71M8-41011

COVER-FRONT

1шт.

2

71M8-41021

COVER-FIX

1шт.

3

71M8-41030

KEY-PUSH

#2546

1шт.

3

71M8-41031

KEY-PUSH

#2547

1шт.

4

71M8-41041

HOLDER-PULLS

1шт.

4-1

71M8-41141

EMBED-PULLS

#0001

1шт.

5

71M8-41310

BRACKET WA-LATCH

1шт.

6

71M8-41061

HINGE ASSY

2шт.

7

71M8-41071

WIRE ASSY-STEEL

1шт.

8

71M8-41081

HINGE ASSY

1шт.

9

71M8-41091

ANGLE-REINFORCEMENT

#0011

1шт.

9

71M8-41092

ANGLE-REINFORCEMENT

#0012

1шт.

10

71M8-41101

PLATE

1шт.

11

71M8-41110

STRIKER ASSY

#0011

1шт.

11

71M8-41111

STRIKER ASSY

#0012

1шт.

11-1

71M8-41120

STRIKER

#0011

1шт.

11-1

71M8-41120

STRIKER

#0012 - #0153

1шт.

11-1

71M8-41370

STRIKER

#0154

1шт.

11-2

71M8-41131

BRACKET WA

#0011

1шт.

11-2

71M8-41132

BRACKET WA

#0012

1шт.

11-3

S205-121002

NUT-HEX

1шт.

12

71M8-51140

LATCH ASSY

1шт.

13

71EE-53531

STOPPER-A

#0001

1шт.

14

71EE-53540

STOPPER-B

1шт.

15

S035-061522

BOLT-W/WASHER

4шт.

16

S035-082022

BOLT-W/WASHER

9шт.

17

S181-148164

RIVET(POP)

#0153

5шт.

17

S181-148164

RIVET(POP)

#0154

7шт.

18

S291-060002

NUT-DOMED CAP

3шт.

19

S403-061002

WASHER-PLAIN

3шт.

20

71M8-51040

RUBBER-CUSHION

3шт.

21

71M7-40110

PLATE-LIMIT

#0153

1шт.

21

71M8-41170

PLATE-LIMIT

#0154

1шт.

22

71M7-40120

SPONGE

#0153

1шт.

23

S161-050156

SCREW-CROSS R/ROUND

#0153

2шт.

24

71M8-41150

BRACKET

1шт.

25

S037-101552

BOLT-W/WASHER

4шт.

26

71M8-41160

DAMPER-LIMIT

#0154

1шт.
