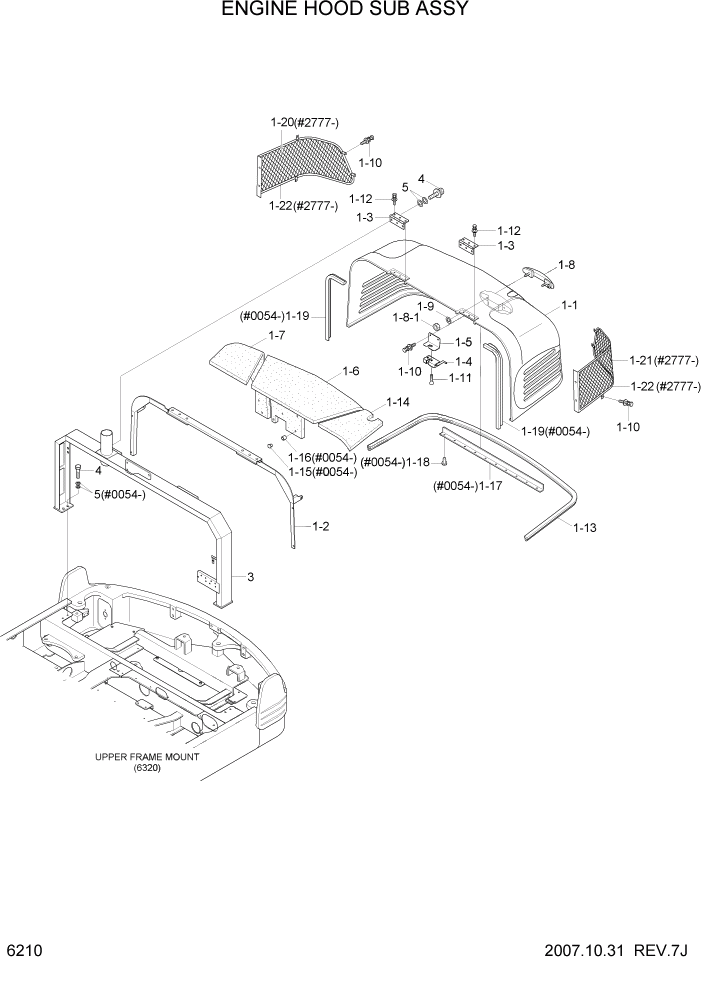

Запчасти Hyundai R55-7 PAGE 6210 ENGINE HOOD SUB ASSY СТРУКТУРА

*

71M8-51001

ENGINE HOOD SUB ASSY

#2726

1шт.

*

71M8-61001

ENGINE HOOD SUB ASSY

#2727 - #2776

1шт.

*

71M8-61002

ENGINE HOOD SUB ASSY

#2727

1шт.

1

71M8-51101

ENGINE HOOD ASSY

#2776

1шт.

1

71M8-61100

ENGINE HOOD ASSY

#2777

1шт.

1-1

71M8-51111

BODY-ENGINE HOOD

1шт.

1-2

71M8-51122

SUPPORT WA

1шт.

1-3

71M8-51131

HINGE ASSY

2шт.

1-4

71M8-51140

LATCH ASSY

#0053

1шт.

1-4

71M8-55140

LATCH ASSY

#0054

1шт.

1-5

71M8-51151

BRACKET WA-LATCH

#0053

1шт.

1-5

71M8-51152

BRACKET WA-LATCH

#0054

1шт.

1-6

71M8-51161

SPONGE

1шт.

1-7

71M8-51171

SPONGE

1шт.

1-8

71M8-00831

LATCH ASSY-OUT

1шт.

1-8-1

S275-080002

NUT-SELF LOCKING

2шт.

1-9

S403-10100B

WASHER-PLAIN

2шт.

1-1

S035-081526

BOLT-W/WASHER

#2776

10шт.

1-1

S035-081526

BOLT-W/WASHER

#2777

22шт.

1-11

S141-080406

SCREW-FLAT HD

2шт.

1-12

S037-103026

BOLT-W/WASHER

7шт.

1-13

S771-025000

WEATHER STRIP

1шт.

1-14

71M8-51190

SPONGE-AL COATING

1шт.

1-15

71M7-52200

CAP-INSULAION

#0054

15шт.

1-16

71M7-52300

BOSS-INSULAION

#0054

15шт.

1-17

71M8-51330

ANGLE-REINFOCEMENT

#0054

1шт.

1-18

S181-148164

RIVET(POP)

#0054

10шт.

1-19

S772-008500

WEATHER STRIP

#0054

2шт.

1-2

71M8-61200

WIRE NET-RH

#2777

1шт.

1-21

71M8-61300

WIRE NET-LH

#2777

1шт.

1-22

S791-016100

GROMMET-PLATE

#2777

2шт.

3

71M8-52101

SUPPORT ASSY

#2726

1шт.

3

71M8-62100

SUPPORT ASSY

#2727

1шт.

4

S037-102022

BOLT-W/WASHER

#0053

6шт.

4

S017-100206

BOLT-HEX

#0054

6шт.

5

S403-10500B

WASHER-PLAIN

#0054

12шт.
