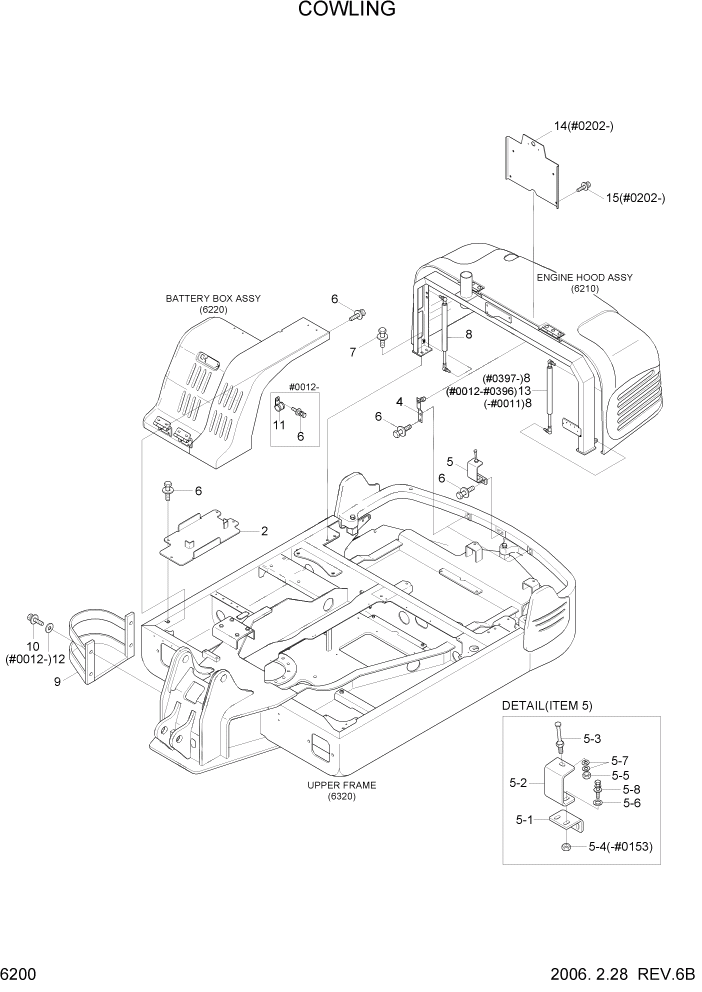

Запчасти Hyundai R55-7 PAGE 6200 COWLING СТРУКТУРА

2

71M8-41301

COVER-TOOL

1шт.

4

71M8-51010

BRACKET WA-DAMPER

2шт.

5

71M8-51030

BRACKET ASSY-LATCH

#0153

1шт.

5

71M8-51031

BRACKET ASSY-LATCH

#0154

1шт.

5-1

71M8-51350

BRACKET-LATCH

#0153

1шт.

5-1

71M8-51351

BRACKET-LATCH

#0154

1шт.

5-2

71M8-51360

BRACKET-LATCH

#0153

1шт.

5-2

71M8-51361

BRACKET-LATCH

#0154

1шт.

5-3

71M8-41120

STRIKER

1шт.

5-4

S201-101002

NUT-HEX

#0153

2шт.

5-5

S201-121002

NUT-HEX

1шт.

5-6

S401-102002

WASHER-PLAIN

#0153

2шт.

5-6

S403-105002

WASHER-PLAIN

#0154

2шт.

5-7

S401-122002

WASHER-PLAIN

#0153

1шт.

5-7

S403-125002

WASHER-PLAIN

#0154

2шт.

5-8

S037-102522

BOLT-W/WASHER

1шт.

6

S037-102052

BOLT-W/WASHER

#0011

22шт.

6

S037-102052

BOLT-W/WASHER

#0012

23шт.

7

S037-123052

BOLT-W/WASHER

#0011

4шт.

7

S017-120352

BOLT-HEX

#0012

4шт.

8

71M8-51202

GAS SPRING

#0011

2шт.

8

71M8-51202

GAS SPRING

#0012 - #0396

1шт.

8

71M8-51202

GAS SPRING

#0397 - #0409

2шт.

8

71M8-51202

GAS SPRING

LOCAL #0410 - #1671

2шт.

8

71M8-51203

GAS SPRING

LOCAL #1672

2шт.

8

71M8-51400

GAS SPRING

EXPORT #0410 - #1671

2шт.

8

71M8-51401

GAS SPRING

EXPORT #1672

2шт.

9

71M8-51050

BRACKET-GREASE CAN

1шт.

10

S037-122552

BOLT-W/WASHER

4шт.

11

S543-100002

CLAMP-TUBE

#0012

1шт.

12

S403-125002

WASHER-PLAIN

#0012

4шт.

13

71M8-51340

GAS SPRING

#0012 - #0396

1шт.

14

71M8-54500

PLATE-LICENCE

#0202

1шт.

15

S037-122052

BOLT-W/WASHER

#0202 - #0409

2шт.

15

S017-120152

BOLT-HEX

#0410

2шт.
