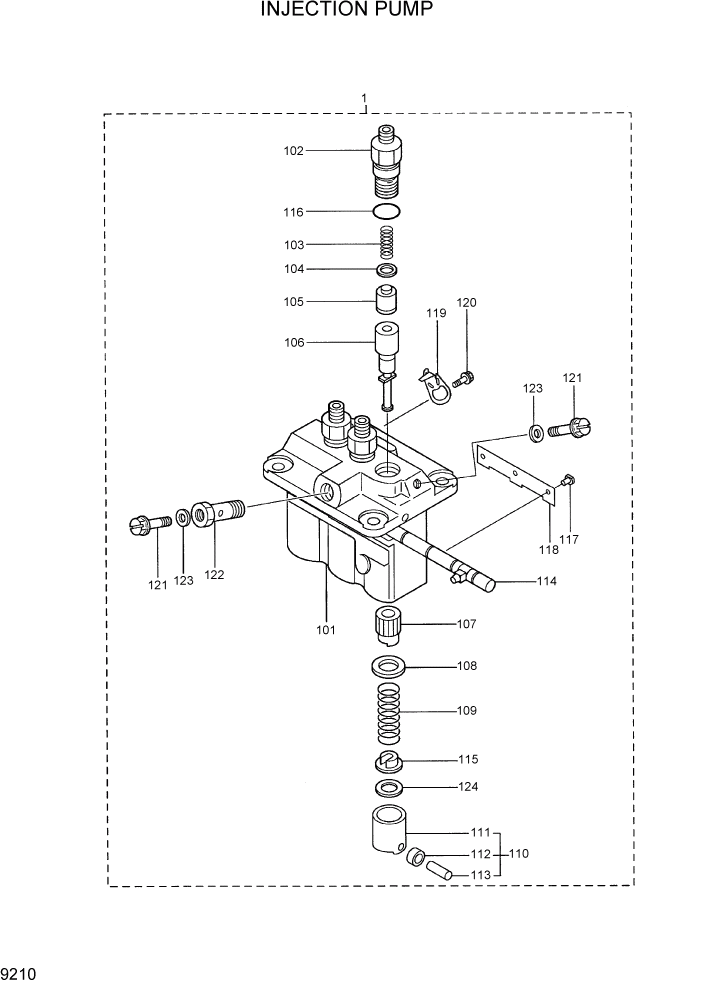

Запчасти Hyundai R35-7 PAGE 9210 INJECTION PUMP ДВИГАТЕЛЬ БАЗА

1

XJAF-01739

PUMP ASSY-FUEL INJ

1шт.

101

XJAF-01192

HOUSING SUB ASSY

1шт.

102

XJAF-01193

HOLDER-DELIVERY

3шт.

103

XJAF-01196

SPRING-DELIVERY

3шт.

104

XJAF-01197

GASKET-DELIVERY

3шт.

105

XJAF-01199

VALVE SUB ASSY

3шт.

106

XJAF-01201

ELEMENT SUB ASSY

3шт.

107

XJAF-01203

SLEEVE-CONTROL

3шт.

108

XJAF-01204

SEAT-SPRING UPPER

3шт.

109

XJAF-01206

SPRING-PLUNGER

3шт.

110

XJAF-01208

TAPPET SUB ASSY

3шт.

111

XJAF-01210

TAPPET

3шт.

112

XJAF-01225

ROLLER-TAPPET

3шт.

113

XJAF-01211

PIN

3шт.

114

XJAF-01214

RACK ASSY-CONTROL

1шт.

115

XJAF-01222

SEAT-SPRING.LOWER

3шт.

116

XJAF-01817

O-RING

3шт.

117

XJAF-01212

PIN-TAPPET GUIDE

3шт.

118

XJAF-01223

PLATE

1шт.

119

XJAF-01190

PLATE-ADJUSTING

2шт.

120

XJAF-01825

BOLT-WASHER HEAD

2шт.

121

XJAF-01218

SCREW-AIR BLEEDER

2шт.

122

XJAF-01826

SCREW-HOLLOW

1шт.

123

XJAF-00747

WASHER-COPPER

2шт.

124

@

PLATE-TAPPET SHIM

NOT

ARшт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
