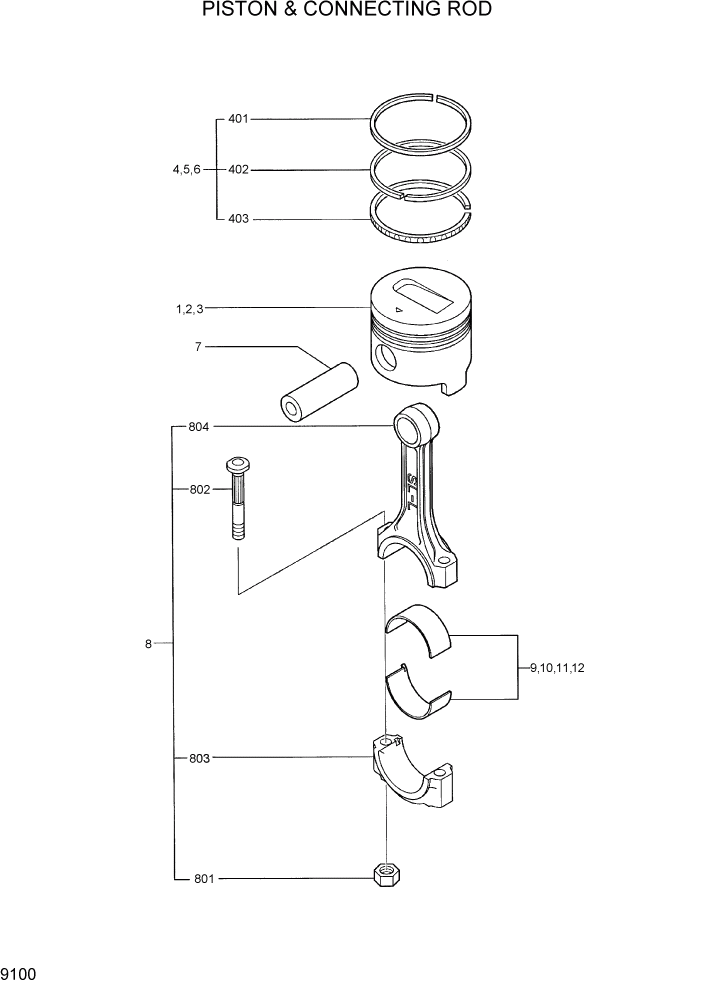

Запчасти Hyundai R28-7 PAGE 9100 PISTON & CONNECTING ROD ДВИГАТЕЛЬ БАЗА

1

XJAF-01657

PISTON

STD

3шт.

2

XJAF-01658

PISTON

0.25MM O/S

3шт.

3

XJAF-01659

PISTON

0.50MM O/S

3шт.

4

XJAF-02172

RING SET-PISTON

3шт.

401

@

RING-PISTON NO.1

NOT

3шт.

402

@

RING-PISTON NO.2

NOT

3шт.

403

@

RING ASSY-OIL

NOT

3шт.

5

XJAF-02173

RING SET-PISTON

0.25MM O/S

3шт.

6

XJAF-02174

RING SET-PISTON

0.50MM O/S

3шт.

7

XJAF-01656

PIN-PISTON

3шт.

8

XJAF-01717

ROD ASSY-CONNECTION

3шт.

801

XJAF-01942

NUT-CONNECTING ROD

6шт.

802

XJAF-01949

BOLT-CONNECTING ROD

6шт.

803

@

CAP-CONNECTING ROD

NOT

3шт.

804

@

CONNECTING ROD

NOT

3шт.

9

XJAF-02203

BEARING SET-CONN ROD

STD

3шт.

10

XJAF-01548

BEARING SET-CONN ROD

0.25MM U/S

3шт.

11

XJAF-01549

BEARING SET-CONN ROD

0.50MM U/S

3шт.

12

XJAF-01550

BEARING SET-CONN ROD

0.75MM U/S

3шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
