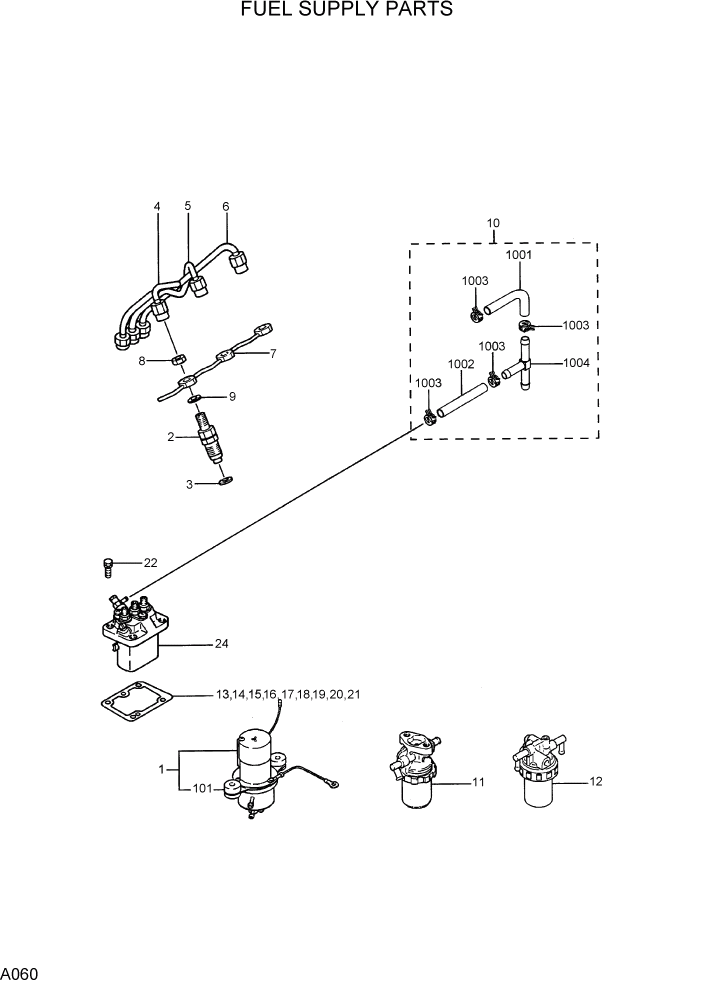

Запчасти Hyundai R22-7 PAGE A060 FUEL SUPPLY PARTS ДВИГАТЕЛЬ БАЗА

1

XJAF-01553

PUMP ASSY-FUEL

1шт.

101

XJAF-01554

MOUNT-RUBBER

2шт.

2

XJAF-02191

NOZZLE & HOLDER ASSY

3шт.

3

XJAF-01092

GASKET-HOLDER

3шт.

4

XJAF-01604

PIPE ASSY-INJ NO.1

1шт.

5

XJAF-01605

PIPE ASSY-INJ NO.2

1шт.

6

XJAF-01606

PIPE ASSY-INJ NO.3

1шт.

7

XJAF-02199

PIPE-FUEL RETURN

1шт.

8

XJAF-01956

NUT

3шт.

9

XJAF-01091

GASKET-FUEL RETURN

3шт.

10

XJAF-01603

PIPE ASSY-FUEL

1шт.

1001

XJAF-00436

HOSE-FUEL

1шт.

1002

XJAF-02228

HOSE-FUEL

1шт.

1003

XJAF-00439

CLIP-FUEL

4шт.

1004

XJAF-01602

JOINT

1шт.

11

XJAF-02064

FILTER ASSY-FUEL

1шт.

12

XJAF-02030

SEDIMENTER ASSY

1шт.

13

XJAF-02117

SHIM(0.5T)

ARшт.

14

XJAF-02115

SHIM(0.2T)

ARшт.

15

XJAF-02116

SHIM(0.3T)

ARшт.

16

XJAF-02145

SHIM(0.4T)

ARшт.

17

XJAF-02146

SHIM(0.6T)

ARшт.

18

XJAF-02147

SHIM(0.7T)

ARшт.

19

XJAF-02148

SHIM(0.8T)

ARшт.

20

XJAF-02149

SHIM(0.9T)

ARшт.

21

XJAF-02150

SHIM(1.0T)

ARшт.

22

XJAF-01980

BOLT-W/WASHER

4шт.

24

XJAF-02216

PUMP ASSY-FUEL INJECT

1шт.
