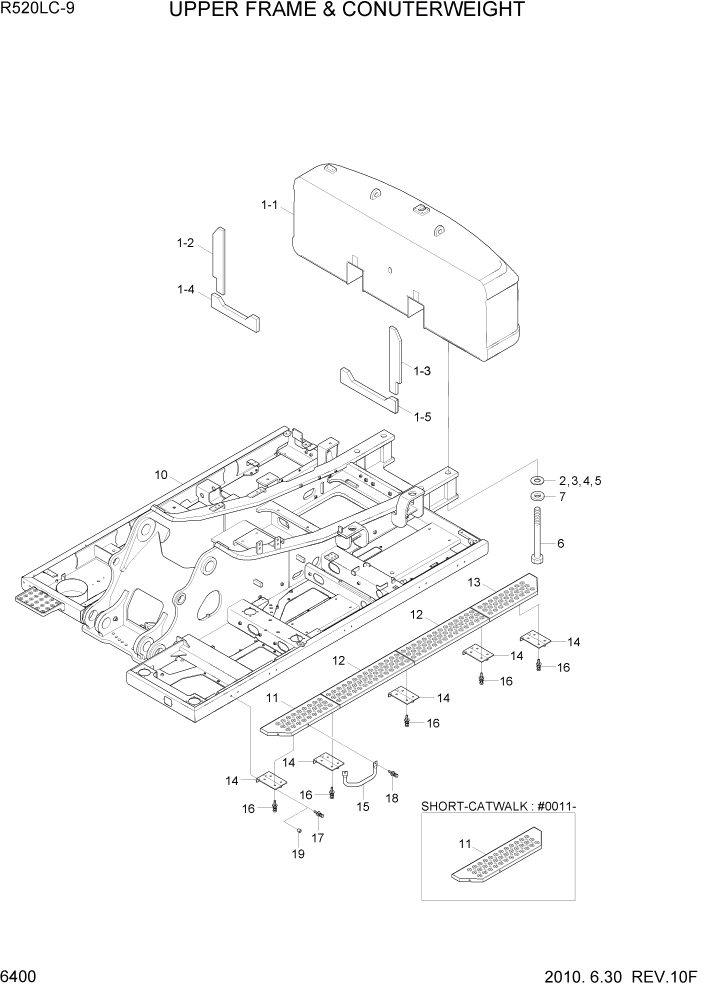

Запчасти Hyundai R520LC9 PAGE 6400 UPPER FRAME & COUNTERWEIGHT СТРУКТУРА

1

43QB-21001

COUNTERWEIGHT ASSY

STD, 10.2TON

1шт.

1

41QB-22000

COUNTERWEIGHT ASSY

L/REACH, 10.7T

1шт.

1

43QB-22000

COUNTERWEIGHT ASSY

OPT, 11.7TON

1шт.

1-1

43QB-21011

COUNTERWEIGHT WA

STD, 10.2TON

1шт.

1-1

41QB-22010

COUNTERWEIGHT WA

L/REACH, 10.7T

1шт.

1-1

43QB-22010

COUNTERWEIGHT WA

OPT, 11.7TON

1шт.

1-2

41N8-21211

SPONGE(A)

1шт.

1-3

41N8-21221

SPONGE(B)

1шт.

1-4

41NB-21241

SPONGE(D)

1шт.

1-5

41NB-21250

SPONGE(E)

1шт.

2

S390-045100

SHIM-ROUND(0.5T)

6шт.

3

S391-045100

SHIM-ROUND(1.0T)

6шт.

4

S392-050100

SHIM-ROUND(2.0T)

6шт.

5

S393-050100

SHIM-ROUND(2.0T)

6шт.

6

43NB-32000

BOLT-HEX

#0001

6шт.

7

S441-420006

WASHER-HARDENED

#0001

6шт.

10

41QB-00011

UPPER FRAME WA

1шт.

11

41Q8-40010

CATWALK WA

1шт.

12

41QB-40010

CATWALK WA

2шт.

13

41Q8-40200

CATWALK WA

1шт.

14

41Q8-40150

SUPPORT WA

5шт.

15

41Q8-40130

PIPE

1шт.

16

71Q6-50030

BOLT-W/WASHER,HEX

20шт.

17

71Q6-50045

BOLT-W/WASHER

10шт.

18

S037-102026

BOLT-W/WASHER

2шт.

19

S981-121500

PLUG

10шт.

11

41Q8-40010

CATWALK WA

LONG CATWALK

1шт.

11

41QB-40100

CATWALK WA

SHORT CATWALK #0011

1шт.

12

41QB-40010

CATWALK WA

LONG CATWALK

2шт.

13

41Q8-40200

CATWALK WA

LONG CATWALK

1шт.

14

41Q8-40150

SUPPORT WA

LONG CATWALK

5шт.

14

41Q8-40150

SUPPORT WA

SHORT CATWALK #0011

2шт.

15

41Q8-40130

PIPE

CATWALK

1шт.

16

71Q6-50030

BOLT-W/WASHER,HEX

LONG CATWALK

20шт.

16

71Q6-50030

BOLT-W/WASHER,HEX

SHORT CATWALK #0011

8шт.

17

71Q6-50045

BOLT-W/WASHER

LONG CATWALK

10шт.

17

71Q6-50045

BOLT-W/WASHER

SHORT CATWALK #0011

4шт.

18

S037-102026

BOLT-W/WASHER

CATWALK

2шт.

19

S981-121500

PLUG

10шт.
