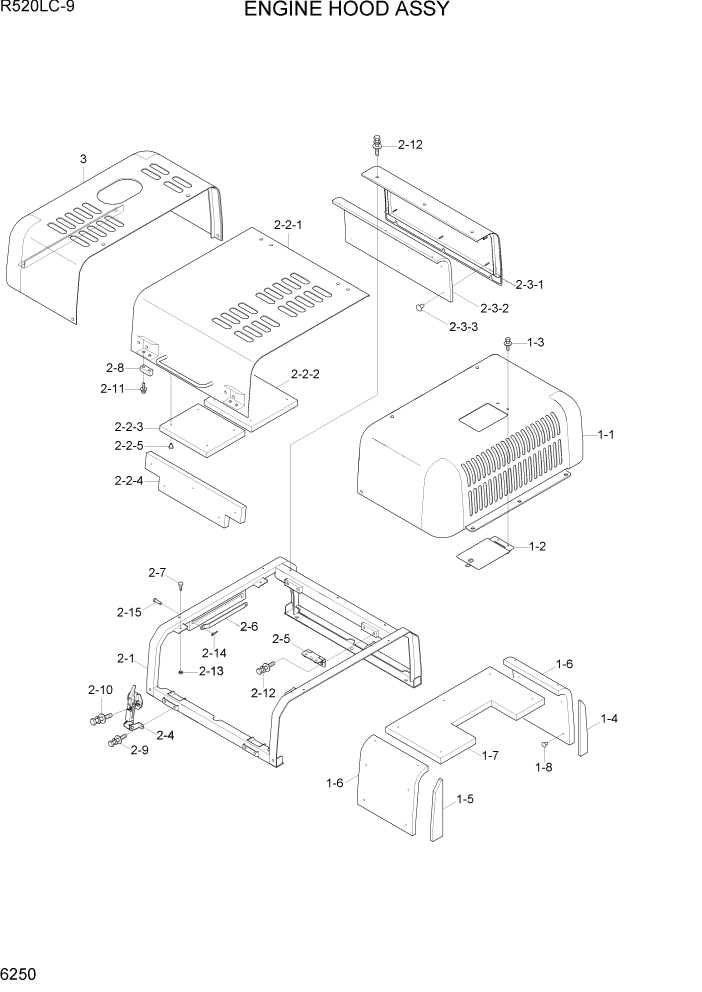

Запчасти Hyundai R520LC9 PAGE 6250 ENGINE HOOD ASSY СТРУКТУРА

*

71QB-51001

ENGINE HOOD ASSY

1шт.

1

71QB-51501

ENGINE HOOD ASSY 1

1шт.

1-1

71QB-51511

ENGINE HOOD WA

1шт.

1-2

71QB-61900

COVER ASSY

1шт.

1-3

S035-082056

BOLT-W/WASHER

2шт.

1-4

71QB-51651

SPONGE

1шт.

1-5

71QB-51661

SPONGE

1шт.

1-6

71QB-51670

SPONGE

2шт.

1-7

71QB-51680

SPONGE

1шт.

1-8

71EM-51580

CAP-STUD BOLT

20шт.

2

71QB-51301

ENGINE HOOD ASSY 2

1шт.

2-1

71QB-51101

SUPPORT WA

1шт.

2-2

71QB-51200

COVER ASSY

1шт.

2-2-1

71QB-51210

COVER WA

1шт.

2-2-2

71QB-51260

SPONGE

1шт.

2-2-3

71QB-51270

SPONGE

1шт.

2-2-4

71QB-51280

SPONGE

1шт.

2-2-5

71EM-51580

CAP-STUD BOLT

13шт.

2-3

71QB-51401

COVER ASSY

1шт.

2-3-1

71QB-51411

COVER WA

1шт.

2-3-2

71QB-51470

SPONGE

1шт.

2-3-3

71EM-51580

CAP-STUD BOLT

9шт.

2-4

71N6-56400GG

CATCH ASSY

2шт.

2-5

71QB-61800

HINGE ASSY

2шт.

2-6

71QB-61401

STAY WA

1шт.

2-7

71EH-13150

RUBBER-BUMPER

4шт.

2-8

71N6-51140

STOPPER A

2шт.

2-9

S035-082526

BOLT-W/WASHER

4шт.

2-1

S035-082026

BOLT-W/WASHER

4шт.

2-11

S132-063056

SCREW-W/WASHER

4шт.

2-12

71Q6-50025

BOLT-W/WASHER

14шт.

2-13

S205-10100B

NUT-HEX

4шт.

2-14

S461-320252

PIN-SPLIT

1шт.

2-15

S491-080252

PIN-CLEVIS

1шт.

3

71QB-51701

ENGINE HOOD WA

1шт.
