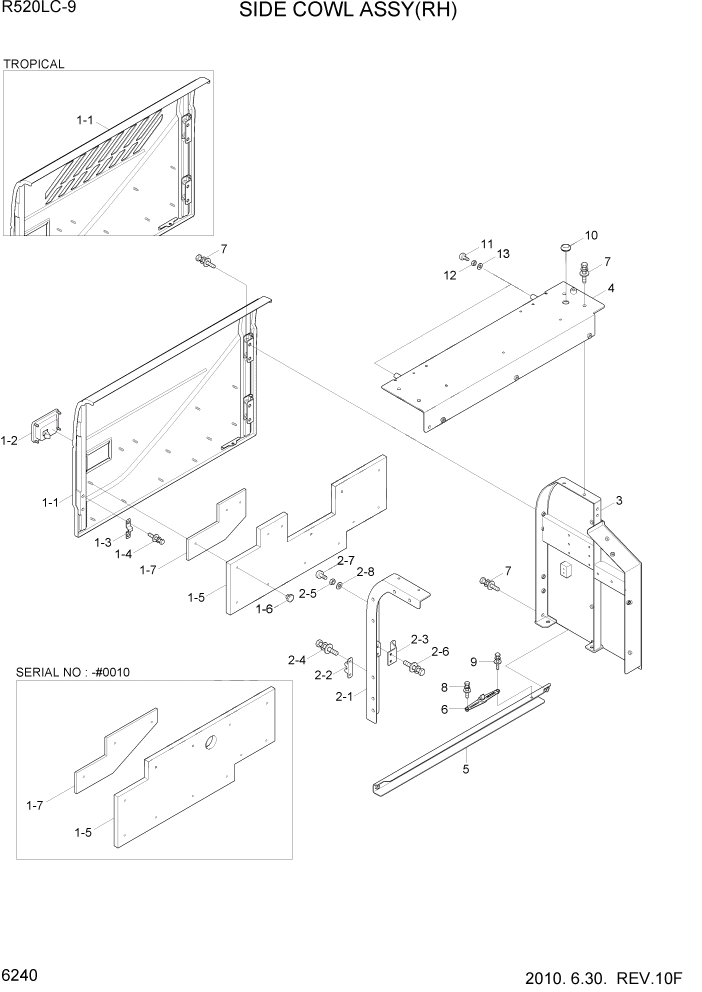

Запчасти Hyundai R520LC9 PAGE 6240 SIDE COWL ASSY(RH) СТРУКТУРА

*

71QB-53001

SIDE COWL ASSY-RH

1шт.

*

71QB-63000

SIDE COWL ASSY-RH

TROPICAL #0011

1шт.

1

71QB-53101

SIDE COVER ASSY-RH

1шт.

1

71QB-63100

SIDE COVER ASSY-RH

TROPICAL #0011

1шт.

1-1

71QB-53111

SIDE COVER WA-RH

1шт.

1-1

71QB-63110

SIDE COVER WA-RH

TROPICAL #0011

1шт.

1-2

71Q6-52190

LATCH ASSY

1шт.

1-3

71Q6-53911

STOPPER-A

1шт.

1-4

S035-082026

BOLT-W/WASHER

2шт.

1-5

71QB-53161

SPONGE

#0010

1шт.

1-5

71QB-53162

SPONGE

#0011

1шт.

1-6

71EM-51580

CAP-STUD BOLT

11шт.

1-7

71QB-53170

SPONGE

#0010

1шт.

1-7

71QB-53171

SPONGE

#0011

1шт.

2

71QB-53301

SUPPORT ASSY-RH,FRONT

1шт.

2-1

71QB-53311

SUPPORT WA-RH,FRONT

1шт.

2-2

71Q6-53951

STOPPER-B

1шт.

2-3

71Q6-53330

PLATE-LOCK

1шт.

2-4

S035-082026

BOLT-W/WASHER

2шт.

2-5

S205-10100B

NUT-HEX

2шт.

2-6

71Q6-50020

BOLT-W/WASHER

2шт.

2-7

71EH-13150

BUMPER-RUBBER

2шт.

2-8

S403-10200B

WASHER-PLAIN

2шт.

3

71QB-53411

SUPPORT WA-RH,REAR

1шт.

4

71QB-53501

HOOD WA-PUMP

1шт.

5

71QB-53611

SUPPORT WA-RH,BOTTOM

1шт.

6

71Q6-53180

STAY ASSY-RH

1шт.

7

71Q6-50025

BOLT-W/WASHER

10шт.

8

S037-102556

BOLT-W/WASHER

1шт.

9

S037-103556

BOLT-W/WASHER

1шт.

10

S880-132060

GROMMET

1шт.

11

71EH-13150

BUMPER-RUBBER

2шт.

12

S205-10100B

NUT-HEX

2шт.

13

S403-10200B

WASHER-PLAIN

2шт.
