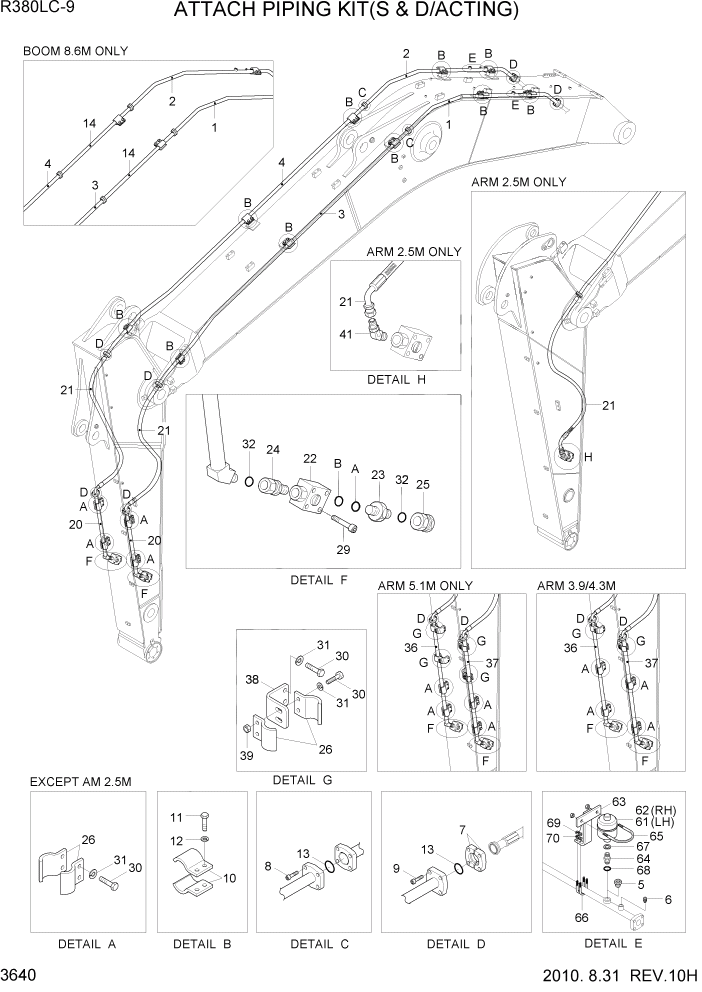

Запчасти Hyundai R360LC9 PAGE 3640 ATTACH PIPING KIT(S & D/ACTING) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

@

D/ACT HYD PIPING KIT

NOT

1шт.

*

@

S/ACT HYD PIPING KIT

NOT

1шт.

*-1

@

D/ACT PIPING KIT

NOT

1шт.

*-1

@

S/ACT PIPING KIT

NOT

1шт.

*-1

31QA-91310

BOOM PIPING KIT

STD, BM 6.5M

1шт.

*-1

31QA-91330

BOOM PIPING KIT

BM 6.15M #0015

1шт.

*-1

31QA-91340

BOOM PIPING KIT

BM 8.6M #0015

1шт.

1

31QA-91510

PIPE WA

STD, BM 6.5M

1шт.

1

31QA-93510

PIPE WA

BM 6.15M #0015

1шт.

1

31QA-94510

PIPE WA

BM 8.6M #0015

1шт.

2

31QA-91520

PIPE WA

STD, BM 6.5M

1шт.

2

31QA-93520

PIPE WA

BM 6.15M #0015

1шт.

2

31QA-94520

PIPE WA

BM 8.6M #0015

1шт.

3

31QA-91530

PIPE WA

STD, BM 6.5M

1шт.

3

31QA-93530

PIPE WA

BM 6.15M, 8.6M #0015

1шт.

4

31QA-91540

PIPE WA

STD, BM 6.5M

1шт.

4

31QA-93540

PIPE WA

BM 6.15M, 8.6M #0015

1шт.

5

P220-110205

PLUG-HEX

2шт.

6

31EK-11130

COUPLING-SCREW

2шт.

7

P173-200106

FLANGE-HYD,SPLIT

4шт.

8

S109-100506

BOLT-SOCKET

8шт.

9

S109-100406

BOLT-SOCKET

8шт.

10

31ND-51001

CLAMP ASSY

20шт.

11

S017-16050D

BOLT-HEX

20шт.

12

S411-160006

WASHER-SPRING

20шт.

13

Y171-027004

O-RING

4шт.

14

31QA-94530

PIPE WA

BM 8.6M #0015

2шт.

*-122

31QA-91410

ARM PIPING KIT-BREAKER

1шт.

*-2

31QA-91410

ARM PIPING KIT

STD, AM 3.2M

1шт.

*-2

31QA-91430

ARM PIPING KIT

AM 2.5M #0015

1шт.

*-2

31QA-91440

ARM PIPING KIT

AM 3.9M #0015

1шт.

*-2

31QA-91450

ARM PIPING KIT

AM 4.3M #0015

1шт.

*-2

31QA-91460

ARM PIPING KIT

AM 5.1M #0015

1шт.

20

31Q9-91510

PIPE WA

STD, AM 3.2M

2шт.

21

P704-207346

HOSE ASSY-FLG 0X90

AM 3.2M #0020

2шт.

21

P705-207344

HOSE ASSY-FLG 0X90

AM 3.2M #0021

2шт.

21

P995-207343

HOSE ASSY-ORFS,FLG 90X0

AM 2.5M #0015

2шт.

21

P704-207342

HOSE ASSY-FLG 0X90

AM 3.9M #0015 - #0026

2шт.

21

P705-207338

HOSE ASSY-FLG 0X90

AM 3.9M #0027

2шт.

21

P704-207343

HOSE ASSY-FLG 0X90

AM 4.3M #0015 - #0026

2шт.

21

P705-207339

HOSE ASSY-FLG 0X90

AM 4.3M #0027

2шт.

21

P704-207346

HOSE ASSY-FLG 0X90

AM 5.1M #0015 - #0026

2шт.

21

P705-207342

HOSE ASSY-FLG 0X90

AM 5.1M #0027

2шт.

22

31Q8-91550

STOP VALVE

#0034

2шт.

22

31Q8-91551

STOP VALVE

#0035

2шт.

23

X500-110006

CONNECTOR-ORFS

EXCEPT AM 2.5M

2шт.

23

X500-110006

CONNECTOR-ORFS

AM 2.5M #0015 - #0068

4шт.

23

X500-110006

CONNECTOR-ORFS

AM 2.5M #0069

2шт.

24

31Q8-91560

ADAPTER

EXCEPT AM 2.5M

2шт.

25

X710-100107

CAP-HYD,ORFS

2шт.

26

31ND-51001

CLAMP ASSY

AM 3.2/2.5M

8шт.

26

31ND-51001

CLAMP ASSY

AM 3.9/4.3M #0015

12шт.

26

31ND-51001

CLAMP ASSY

AM 5.1M #0015

16шт.

27

P173-200106

FLANGE-HYD,SPLIT

EXCEPT AM 2.5M

8шт.

27

P173-200106

FLANGE-HYD,SPLIT

AM 2.5M #0015

4шт.

28

S109-100406

BOLT-SOCKET

EXCEPT AM 2.5M

16шт.

28

S109-100406

BOLT-SOCKET

AM 2.5M #0015

8шт.

29

S109-120706

BOLT-SOCKET

EXCEPT AM 2.5M

8шт.

30

S017-16050D

BOLT-HEX

STD, AM 3.2M

8шт.

30

S017-16050D

BOLT-HEX

AM 3.9/4.3M #0015

16шт.

30

S017-16050D

BOLT-HEX

AM 5.1M #0015

24шт.

31

S411-160006

WASHER-SPRING

AM 3.2M

8шт.

31

S411-160006

WASHER-SPRING

AM 3.9/4.3M #0015

16шт.

31

S411-160006

WASHER-SPRING

AM 5.1M #0015

24шт.

32

S621-025001

O-RING

EXCEPT AM 2.5M

2шт.

35

Y171-027004

O-RING

EXCEPT AM 2.5M

4шт.

35

Y171-027004

O-RING

AM 2.5M #0015

2шт.

36

31QA-60400

PIPE WA

AM 3.9M #0015

1шт.

36

31QA-60320

PIPE WA

AM 4.3M #0015

1шт.

36

31QA-60380

PIPE WA

AM 5.1M #0015

1шт.

37

31QA-60410

PIPE WA

AM 3.9M #0015

1шт.

37

31QA-60330

PIPE WA

AM 4.3M #0015

1шт.

37

31QA-60390

PIPE WA

AM 5.1M #0015

1шт.

38

31QA-60340

BRACKET

AM 3.9/4.3M #0015

2шт.

38

31QA-60340

BRACKET

AM 5.1M #0015

4шт.

39

S205-16100B

NUT-HEX

AM 3.9/4.3M #0015

4шт.

39

S205-16100B

NUT-HEX

AM 5.1M #0015

8шт.

40

S631-038004

O-RING

AM 3.9/4.3/5.1M

2шт.

41

X520-110006

ELBOW-90,ORFS

AM 2.5M #0069

2шт.

A

S621-025001

O-RING

1шт.

B

S631-038004

O-RING

1шт.

*-11

@

D/ACT MAIN PIPING KIT

NOT

1шт.

*-11

@

S/ACT MAIN PIPING KIT

NOT

1шт.

*-3

31Q8-90370

ACCUMULATOR KIT

1шт.

61

31Q8-91670

ACCUMULATOR

1шт.

62

31Q8-91680

ACCUMULATOR

1шт.

63

32E6-92080

BRACKET-ACCUM

2шт.

64

31Q8-91690

CONNECTOR

2шт.

65

32E6-92060

U-BOLT

2шт.

66

S071-034330

U-BOLT

4шт.

67

31Q8-91700

SEAL

2шт.

68

S631-024004

O-RING

2шт.

69

S205-10100B

NUT-HEX

8шт.

70

S403-10200B

WASHER-PLAIN

8шт.
