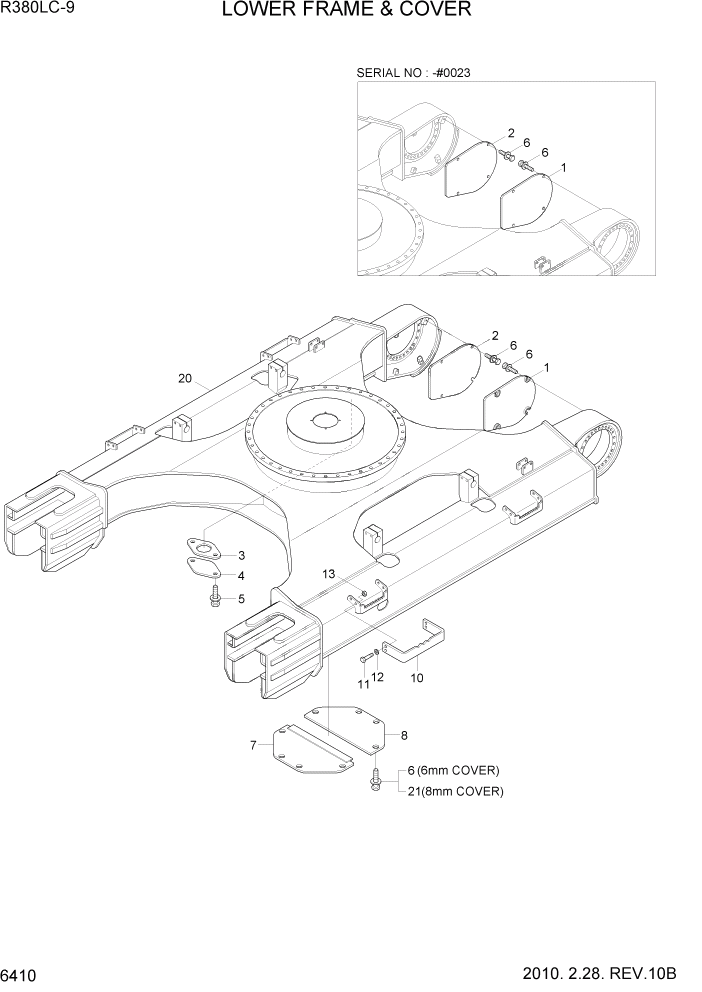

Запчасти Hyundai R360LC9 PAGE 6410 LOWER FRAME & COVER СТРУКТУРА

1

51NA-11110GG

COVER WA-T/MOTOR,LH

#0023

1шт.

1

51QA-11110

COVER WA-T/MOTOR,LH

#0024

1шт.

2

51NA-11120GG

COVER WA-T/MOTOR,RH

#0023

1шт.

2

51QA-11120

COVER WA-T/MOTOR,RH

#0024

1шт.

3

41N6-10100

COVER

1шт.

4

41E9-1306

SEAL

1шт.

5

S037-102556

BOLT-W/WASHER

2шт.

6

S037-123556

BOLT-W/WASHER

16шт.

6

S037-124556

BOLT-W/WASHER

OPT, 8MM

8шт.

7

51N6-11211GG

COVER-BOTTOM(A)

STD, 6MM

1шт.

7

51N6-11230GG

COVER-BOTTOM(A)

OPT, 8MM

1шт.

8

51N6-11221GG

COVER-BOTTOM(B)

STD, 6MM

1шт.

8

51N6-11240GG

COVER-BOTTOM(B)

OPT, 8MM

1шт.

10

51N8-20011GG

BOARD-FOOT

700MM SHOE

4шт.

10

51N8-20051GG

BOARD-FOOT

750,800MM SHOE

4шт.

10

51N8-20081GG

BOARD-FOOT

900MM SHOE

4шт.

11

S017-16055D

BOLT-HEX

16шт.

12

S441-160006

WASHER-HARDENED

32шт.

13

S205-16100B

NUT-HEX

16шт.

20

51QA-00011

LOWER FRAME WA

1шт.

21

S037-124556

BOLT-W/WASHER

8шт.
