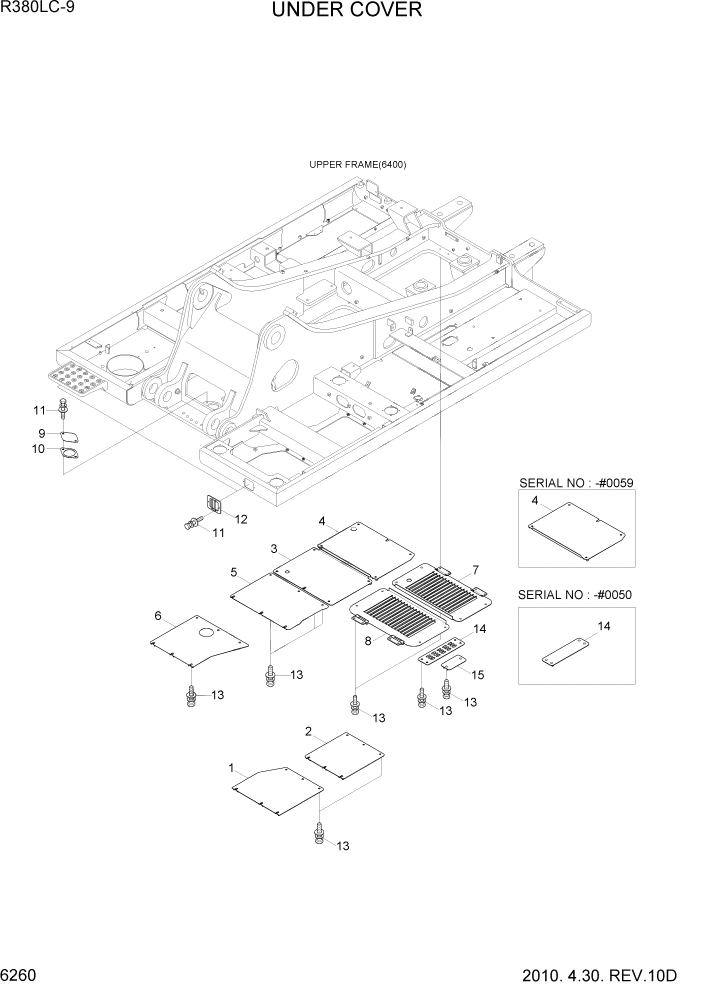

Запчасти Hyundai R360LC9 PAGE 6260 UNDER COVER СТРУКТУРА

1

41Q8-10011

UNDER COVER-CABIN

1шт.

2

41Q8-10021

UNDER COVER-CABIN

1шт.

3

41QA-10061

UNDER COVER-PUMP

1шт.

4

41QA-10071

UNDER COVER-PUMP

#0059

1шт.

4

41QA-10072

UNDER COVER-PUMP

#0060

1шт.

5

41QA-10081

UNDER COVER-H/TANK

#0025

2шт.

5

41QA-10082

UNDER COVER-H/TANK

#0026

2шт.

6

41QA-10101

UNDER COVER-F/TANK

1шт.

7

41QA-10021

UNDER COVER-ENGINE

1шт.

8

41QA-10200

UNDER COVER-ENGINE

#0023

1шт.

8

41QA-10201

UNDER COVER-ENGINE

#0024

1шт.

9

41N6-10100

COVER

1шт.

10

41E9-1306

SEAL

1шт.

11

S037-102556

BOLT-W/WASHER

6шт.

12

43Q8-15290

GUARD-LAMP

2шт.

13

41Q8-60030

BOLT-W/WASHER

56шт.

14

41Q9-15332

UNDER COVER-RAD

#0050

1шт.

14

41Q8-10230

UNDER COVER-RAD

#0051

1шт.

15

41Q9-15341

UNDER COVER-RAD

1шт.
