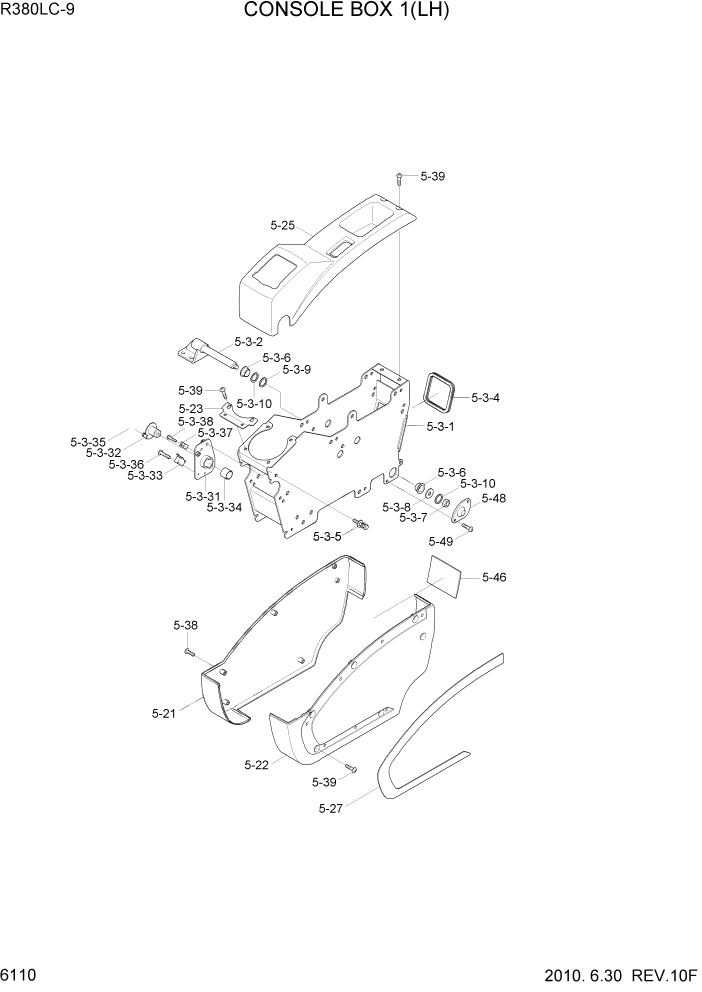

Запчасти Hyundai R360LC9 PAGE 6110 CONSOLE BOX 1(LH) СТРУКТУРА

5-3

71Q6-21001

CONSOLE FRAME ASSY-LH

1шт.

5-3-1

71Q4-21341

FRAME WA-CONSOLE

1шт.

5-3-2

71Q6-21311

BRACKET WA-CONSOLE

1шт.

5-3-3

71Q6-20920

BRACKET ASSY-SAFETY

1шт.

5-3-31

71Q6-20930

BRACKET-LOWER

1шт.

5-3-32

71Q6-20960

BRACKET-UPPER

1шт.

5-3-33

21N8-20300

SWITCH-MICRO

1шт.

5-3-34

S731-020010

BUSHING-DU

1шт.

5-3-35

71N6-21610

SPRING

1шт.

5-3-36

S161-030156

SCREW-CROSS R/ROUND

2шт.

5-3-37

71Q6-22840

PLATE-STOPPER

1шт.

5-3-38

S131-051526

SCREW-W/WASHER

1шт.

5-3-4

71Q6-21420

GROMMET

1шт.

5-3-5

S035-061526

BOLT-W/WASHER

2шт.

5-3-6

S731-020020

BUSHING-DU

2шт.

5-3-7

S275-12000B

NUT-SELF LOCKING

1шт.

5-3-8

71Q6-22690

SHIM-ROUND

1шт.

5-3-9

71Q6-22631

SHIM-CONSOLE

1шт.

5-3-10

71Q6-23080

SHIM-CONSOLE

3шт.

5-21

71Q6-22050

CONSOLE COVER-LOW,RH

#0059

1шт.

5-21

71Q6-22050GG

CONSOLE COVER-LOW,RH

#0060

1шт.

5-22

71Q6-22010

CONSOLE COVER-LOW,LH

#0059

1шт.

5-22

71Q6-22010GG

CONSOLE COVER-LOW,LH

#0060

1шт.

5-23

71Q6-21610

BRACKET-CONSOLE UP

1шт.

5-25

71Q6-22060

CONSOLE COVER UP-LH

#0059

1шт.

5-25

71Q6-22060GG

CONSOLE COVER UP-LH

#0060

1шт.

5-27

71Q6-22030

CONSOLE COVER-TRIM

1шт.

5-38

S002-06010B

SCREW-TRUS HEAD

6шт.

5-39

S002-06015B

SCREW-TRUS HEAD

11шт.

5-46

71Q6-22670

PROTECTOR

1шт.

5-48

71Q6-23130

CAP-CONSOLE

#0059

1шт.

5-48

71Q6-23130GG

CAP-CONSOLE

#0060

1шт.

5-49

S002-05015B

SCREW-TRUSHEAD

2шт.
