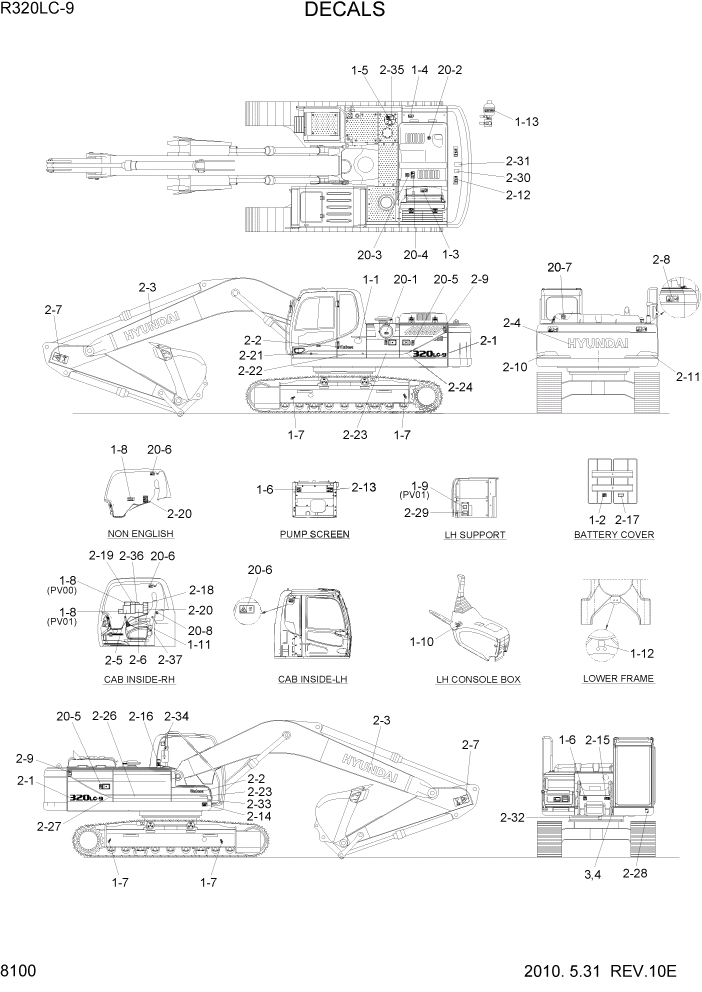

Запчасти Hyundai R320LC9 PAGE 8100 DECALS ДРУГИЕ ЧАСТИ

1

91Q9-00101

DECAL KIT(A)

#0001

1шт.

1-1

91E1-27110

DECAL-LOW EMI ENGINE

1шт.

1-2

91N6-02120

DECAL-BATT ACCIDENT

1шт.

1-3

91N6-01121

DECAL-RADIATOR CAP

1шт.

1-4

91N6-03140

DECAL-FALLING

1шт.

1-5

91N6-03111

DECAL-OIL LUBRICATION

1шт.

1-6

91N6-03130

DECAL-HIGH PRESS HOSE

2шт.

1-7

91N6-05110

DECAL-SLING IDEOGRAM

4шт.

1-8

91N6-07201

DECAL-CNTL IDEOGRAM

ISO MONO

1шт.

1-8

91N6-08200

DECAL-CNTL IDEOGRAM

MONO

1шт.

1-8

91N6-07400

DECAL-M/CONTROL,CAB

OPT, ISO #0001

1шт.

1-9

91N6-07410

DECAL-MACHINE CNTL

OPT, ISO #0001

1шт.

1-1

92N6-07310

DECAL-SAFETY LEVER

1шт.

1-11

91N6-07272

DECAL-AIRCON FILTER

1шт.

1-12

91N6-05120

DECAL-TIE

1шт.

1-13

91N6-03200

DECAL-ACCUMULATOR

1шт.

2

91Q9-10101

DECAL KIT(B)

R320LC-9 #0008

1шт.

2

91Q9-10102

DECAL KIT(B)

R320LC-9 #0009 - #0009

1шт.

2

91Q9-10103

DECAL KIT(B)

R320LC-9 #0010 - #0011

1шт.

2

91Q9-10105

DECAL KIT(B)

R320LC-9 #0012

1шт.

2

91Q9-10200

DECAL KIT(B)

R320NLC-9 #0008

1шт.

2

91Q9-10201

DECAL KIT(B)

R320NLC-9 #0009 - #0009

1шт.

2

91Q9-10202

DECAL KIT(B)

R320NLC-9 #0010 - #0011

1шт.

2

91Q9-10204

DECAL KIT(B)

R320NLC-9 #0012

1шт.

2

91Q9-10300

DECAL KIT(B)

H/WALKER #0008

1шт.

2

91Q9-10301

DECAL KIT(B)

H/WALKER #0009 - #0011

1шт.

2

91Q9-10302

DECAL KIT(B)

H/WALKER #0010 - #0011

1шт.

2

91Q9-10304

DECAL KIT(B)

H/WALKER #0012

1шт.

2-1

91Q9-10010

DECAL-MODEL NAME

R320LC-9

2шт.

2-1

91Q9-10030

DECAL-MODEL NAME

R320NLC-9

2шт.

2-2

91Q6-17112

DECAL-ROBEX LOGO

2шт.

2-3

91N6-23160

DECAL-HYUNDAI LOGO

2шт.

2-4

91N6-26170

DECAL-HYUNDAI LOGO

1шт.

2-5

91Q9-02100

LIFTING CHART

R320LC-9

1шт.

2-5

91Q9-04100

LIFTING CHART

HIGH WALKER

1шт.

2-5

91Q9-03100

LIFTING CHART

R320NLC-9

1шт.

2-6

91Q9-10710

SERVICE INSTRUCTION

1шт.

2-7

91N6-06120

DECAL-KEEP CLEAR,ATT

2шт.

2-8

91Q6-07010

DECAL-KEEP CLEAR,RR

2шт.

2-9

91Q6-07021

DECAL-KEEP CLEAR,SIDE

2шт.

2-1

91Q6-07031

DECAL-REFLECTING,LH

1шт.

2-11

91Q6-07040

DECAL-REFLECTING,RH

1шт.

2-12

91N6-04132

DECAL-LIFTING EYE

2шт.

2-13

91N6-03102

DECAL-HYD OIL LEVEL

1шт.

2-14

91N6-07141

DECAL-TRANSPORTING

1шт.

2-15

91N6-03121

DECAL-RED GEAR GREASE

1шт.

2-16

91M8-01140

DECAL-FUELING

1шт.

2-17

91LB-01350

DECAL-ECM CONNECTOR

1шт.

2-18

91Q6-07330

DECAL-LOCKING CLAMP

1шт.

2-19

91N6-07390

DECAL-TURBOCHARGER

1шт.

2-2

91Q6-07371

DECAL-CABIN RH PILLAR

1шт.

2-21

91Q6-07510

DECAL-CAB FR BAND

1шт.

2-22

91Q6-07520

DECAL-CAB RR BAND

1шт.

2-23

91Q9-07530

BAND-LH FRONT

1шт.

2-24

91Q9-07540

DECAL-BAND LH REAR

1шт.

2-25

91Q8-07610

DECAL-BAND TOOL BOX

1шт.

2-26

91Q9-07620

BAND-TANK

1шт.

2-27

91Q9-07630

DECAL-BAND RH

1шт.

2-28

91N6-22150

DECAL-NOISE LWA/105DB

EU ONLY

1шт.

2-29

91Q6-03210

DECAL-RCV L/PATTERN

1шт.

2-3

91N6-07131

DECAL-NO STEP

1шт.

2-31

91N6-03140

DECAL-FALLING

1шт.

2-32

91Q6-03220

DECAL-SWING BEARING

1шт.

2-33

91M9-02110

DECAL-BATTERY POSITION

1шт.

2-34

91Q4-02200

DECAL-BEACON LAMP

#0009

1шт.

2-35

91Q6-03230

DECAL-FUEL SHUT OFF

#0010

1шт.

2-36

91Q4-07180

DECAL-WATER SEPARATOR

#0010

1шт.

2-37

91Q4-15860

DECAL-MCU/ECM CONNECT

#0012

1шт.

3

91E1-14110

NAME PLATE

#0011

1шт.

3

91LM-14110

DECAL-PIN PLATE

#0012

1шт.

3

91E1-14130

NAME PLATE

EU ONLY #0011

1шт.

3

91LM-14130

DECAL-PIN PLATE

EU ONLY #0012

1шт.

4

91EK-12010

RIVET

4шт.

20

91Q6-00092

DECAL KIT-A/S

1шт.

20-1

91N6-01102

DECAL-A/CLEANER FILTER

1шт.

20-2

91N6-01111

DECAL-TURBO COVER

1шт.

20-3

91N6-07121

DECAL-SHEARING

1шт.

20-4

91N6-07131

DECAL-NO STEP

1шт.

20-5

91N6-07112

DECAL-STAY FIX

3шт.

20-6

91Q6-07250

DECAL-SAFETY FR WINDOW

2шт.

20-7

91N6-07261

DECAL-ALTERNATE EXIT

1шт.

20-8

91N6-07280

DECAL-HAMMER

1шт.
