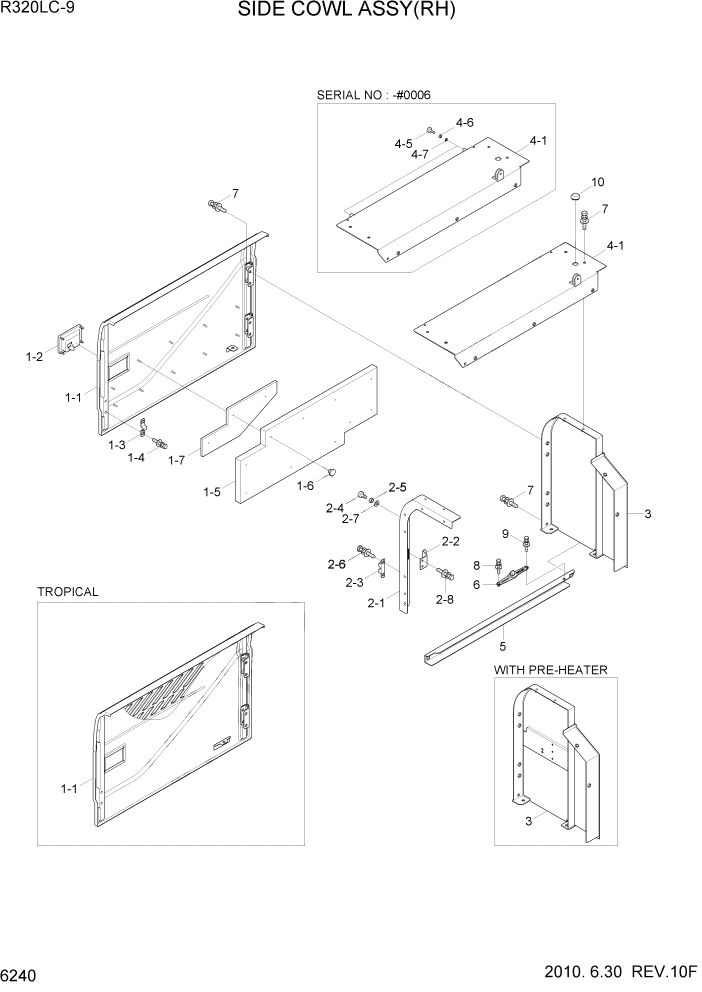

Запчасти Hyundai R320LC9 PAGE 6240 SIDE COWL ASSY(RH) СТРУКТУРА

*

71Q9-53002

SIDE COWL ASSY-RH

1шт.

*

71Q9-53010

SIDE COWL ASSY-RH

PRE-HEATING #0005

1шт.

*

71Q9-63000

SIDE COWL ASSY-RH

TROPICAL #0012

1шт.

*

71Q9-63010

SIDE COWL ASSY-RH

TROPICAL,P/HEAT #0012

1шт.

1

71Q9-53102

SIDE COVER ASSY-RH

1шт.

1

71Q9-63100

SIDE COVER ASSY-RH

TROPICAL #0012

1шт.

1-1

71Q9-53112

SIDE COVER WA-RH

1шт.

1-1

71Q9-63110

SIDE COVER WA-RH

TROPICAL #0012

1шт.

1-2

71Q6-52190

LATCH ASSY

1шт.

1-3

71Q6-53911

STOPPER-A

1шт.

1-4

S035-082026

BOLT-W/WASHER

2шт.

1-5

71Q9-53161

SPONGE

1шт.

1-6

71EM-51580

CAP-STUD BOLT

10шт.

1-7

71Q9-53170

SPONGE

1шт.

2

71Q9-53302

SUPPORT ASSY-RH,FRONT

1шт.

2-1

71Q9-53312

SUPPORT WA-RH,FRONT

1шт.

2-2

71Q6-53330

PLATE-LOCK

1шт.

2-3

71Q6-53951

STOPPER-B

1шт.

2-4

71EH-13150

BUMPER-RUBBER

1шт.

2-5

S205-10100B

NUT-HEX

1шт.

2-6

S035-082026

BOLT-W/WASHER

2шт.

2-7

S403-10200B

WASHER-PLAIN

1шт.

2-8

71Q6-50020

BOLT-W/WASHER

1шт.

3

71Q9-53412

SUPPORT WA-RH,REAR

1шт.

3

71Q9-63410

SUPPORT WA-RH,REAR

PRE-HEATING #0005

1шт.

4

71Q9-53503

HOOD WA-PUMP

1шт.

4-1

71Q9-53513

HOOD-PUMP

1шт.

4-5

71EH-13150

BUMPER-RUBBER

#0006

2шт.

4-6

S205-10100B

NUT-HEX

#0006

2шт.

4-7

S403-10200B

WASHER-PLAIN

#0006

2шт.

5

71Q9-53612

SUPPORT WA-RH,BOTTOM

1шт.

6

71Q6-53180

STAY ASSY-RH

1шт.

7

71Q6-50025

BOLT-W/WASHER

10шт.

8

S037-102556

BOLT-W/WASHER

1шт.

9

S037-103556

BOLT-W/WASHER

1шт.

10

S880-132060

GROMMET

1шт.
