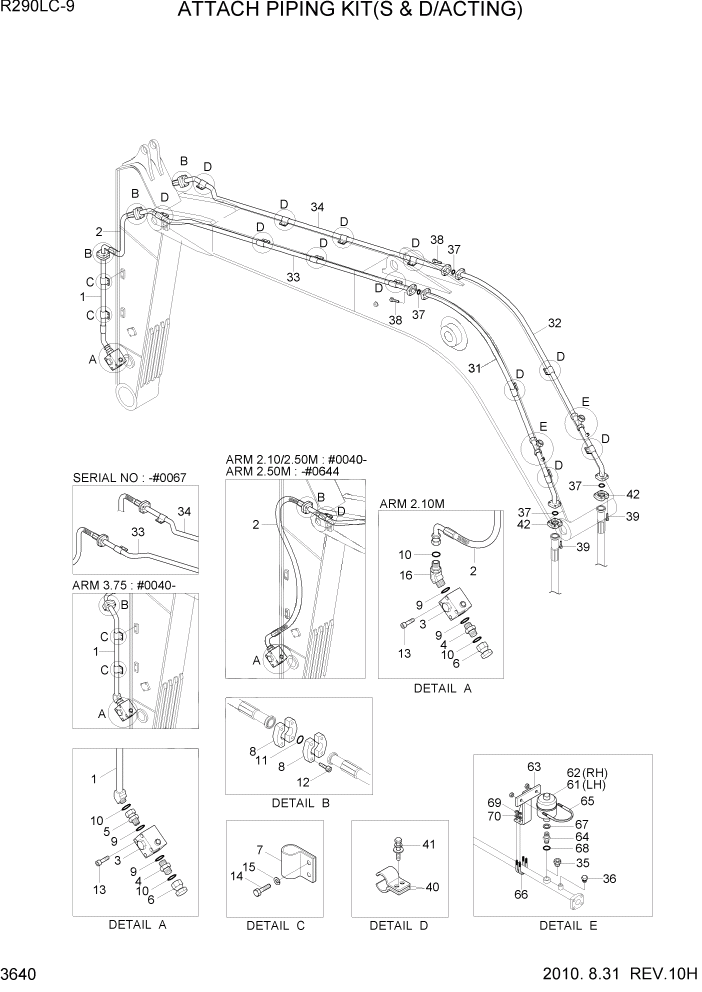

Запчасти Hyundai R290LC9 PAGE 3640 ATTACH PIPING KIT(S & D/ACTING) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*

@

D/ACT HYD PIPING KIT

NOT

1шт.

*

@

S/ACT HYD PIPING KIT

NOT

1шт.

*-1

@

D/ACT PIPING KIT

NOT

1шт.

*-1

@

S/ACT PIPING KIT

NOT

1шт.

*-12

@

ATTACH PIPING KIT

NOT

1шт.

*-2

31Q8-91410

ARM PIPING KIT-BREAKER

ARM 3.05M

1шт.

*-2

31Q8-91420

ARM PIPING KIT-BREAKER

ARM 2.10M #0039

1шт.

*-2

31Q8-91421

ARM PIPING KIT-BREAKER

ARM 2.10M #0040

1шт.

*-2

31Q8-91430

ARM PIPING KIT-BREAKER

ARM 2.50M #0039

1шт.

*-2

31Q8-91431

ARM PIPING KIT-BREAKER

ARM 2.50M #0040 - #0644

1шт.

*-2

31Q8-91432

ARM PIPING KIT-BREAKER

ARM 2.50M #0645

1шт.

*-2

31Q8-91440

ARM PIPING KIT-BREAKER

ARM 3.75M

1шт.

1

31Q8-91510

PIPE WA

ARM 3.05M

2шт.

1

31Q8-91520

PIPE WA

ARM 2.10M #0025 - #0039

2шт.

1

31Q8-91520

PIPE WA

ARM 2.50M #0645

2шт.

1

31Q8-91530

PIPE WA

ARM 2.50M #0025 - #0039

2шт.

1

31Q8-91580

PIPE WA

ARM 3.75M #0025 - #0039

2шт.

1

31Q8-91581

PIPE WA

ARM 3.75M #0040

2шт.

2

P703-207338

HOSE ASSY-FLG 0X90

ARM 3.05M

2шт.

2

P705-207338

HOSE ASSY-FLG 0X90

ARM 3.05M

2шт.

2

P704-207328

HOSE ASSY-FLG 0X90

ARM 2.10M #0025 - #0039

2шт.

2

P994-207333

HOSE ASSY-FLG 0X90

ARM 2.10M #0040 - #0644

2шт.

2

P995-207334

HOSE ASSY-ORFS,FLG 90X0

ARM 2.10M #0645

2шт.

2

P704-207330

HOSE ASSY-FLG 0X90

ARM 2.50M #0025 - #0039

2шт.

2

P994-207343

HOSE ASSY-FLG 0X90

ARM 2.50M #0040 - #0644

2шт.

2

P705-207336

HOSE ASSY-FLG 0X90

ARM 2.50M #0645

2шт.

2

P704-207347

HOSE ASSY-FLG 0X90

ARM 3.75M #0025 - #0039

2шт.

2

P705-207348

HOSE ASSY-FLG 0X90

ARM 3.75M #0040

2шт.

3

31Q8-91550

STOP VALVE

#0274

2шт.

3

31Q8-91551

STOP VALVE

#0275

2шт.

4

X500-110006

CONNECTOR-ORFS

ARM 3.05/3.75M #0644

2шт.

4

X500-110006

CONNECTOR-ORFS

#0645

2шт.

4

X500-110006

CONNECTOR-ORFS

ARM 2.10/2.50M #0039

2шт.

4

X500-110006

CONNECTOR-ORFS

ARM 2.10/2.50M #0040 - #0644

4шт.

5

31Q8-91560

ADAPTER

ARM 3.05/3.75M #0644

2шт.

5

31Q8-91560

ADAPTER

ARM 3.05/3.75M #0645

2шт.

5

31Q8-91560

ADAPTER

ARM 2.10/2.50M #0039

2шт.

6

X710-100107

CAP-HYD,ORFS

2шт.

7

31ND-51001

CLAMP ASSY

ARM 3.05/3.75M #0644

8шт.

7

31ND-51001

CLAMP ASSY

EXCEPT 2.10M AM #0645

8шт.

7

31ND-51001

CLAMP ASSY

ARM 2.10/2.50M #0039

8шт.

8

P173-200106

FLANGE-HYD,SPLIT

ARM 3.05/3.75M #0644

8шт.

8

P173-200106

FLANGE-HYD,SPLIT

EXCEPT 2.10M AM #0645

8шт.

8

P173-200106

FLANGE-HYD,SPLIT

ARM 2.10/2.50M #0039

8шт.

8

P173-200106

FLANGE-HYD,SPLIT

ARM 2.10/2.50M #0040 - #0644

4шт.

8

P173-200106

FLANGE-HYD,SPLIT

ARM 2.10M #0645

4шт.

9

S631-038004

O-RING

4шт.

10

S621-025001

O-RING

4шт.

11

Y171-027004

O-RING

ARM 3.05/3.75M #0644

4шт.

11

Y171-027004

O-RING

EXCEPT 2.10M AM #0645

4шт.

11

Y171-027004

O-RING

ARM 2.10/2.50M #0039

4шт.

11

Y171-027004

O-RING

ARM 2.10/2.50M #0040 - #0644

2шт.

11

Y171-027004

O-RING

ARM 2.10M #0645

2шт.

12

S109-100406

BOLT-SOCKET

ARM 3.05/3.75M #0644

16шт.

12

S109-100406

BOLT-SOCKET

EXCEPT 2.10M AM #0645

16шт.

12

S109-100406

BOLT-SOCKET

ARM 2.10/2.50M #0039

16шт.

12

S109-100406

BOLT-SOCKET

ARM 2.10/2.50M #0040 - #0644

8шт.

12

S109-100406

BOLT-SOCKET

ARM 2.10M #0645

8шт.

13

S109-120706

BOLT-SOCKET

8шт.

14

S017-16050D

BOLT-HEX

ARM 3.05/3.75M #0644

8шт.

14

S017-16050D

BOLT-HEX

EXCEPT 2.10M AM #0645

8шт.

14

S017-16050D

BOLT-HEX

ARM 2.10/2.50M #0039

8шт.

15

S411-160006

WASHER-SPRING

ARM 3.05/3.75M #0644

8шт.

15

S411-160006

WASHER-SPRING

EXCEPT 2.10M AM #0645

8шт.

15

S411-160006

WASHER-SPRING

ARM 2.10/2.50M #0039

8шт.

16

X530-110006

ELBOW-45,ORFS

ARM 2.10M #0645

2шт.

*-3

31Q8-91310

BOOM PIPINT KIT

1шт.

31

31Q8-91610

PIPE ASSY

1шт.

32

31Q8-91620

PIPE ASSY

1шт.

33

31Q8-91630

PIPE ASSY

#0067

1шт.

33

31Q8-91631

PIPE ASSY

#0068

1шт.

34

31Q8-91640

PIPE ASSY

#0067

1шт.

34

31Q8-91641

PIPE ASSY

#0068

1шт.

35

P220-110205

PLUG-HEX

2шт.

36

31EK-11130

COUPLING-SCREW

2шт.

37

Y171-027004

O-RING

4шт.

38

S109-100506

BOLT-SOCKET

8шт.

39

S109-100406

BOLT-SOCKET

8шт.

40

34L1-01851

CLAMP ASSY

24шт.

41

S037-123526

BOLT-W/WASHER

24шт.

42

P173-200106

FLANGE-HYD,SPLIT

4шт.

*-11

@

D/ACT MAIN PIPING KIT

NOT

1шт.

*-11

@

S/ACT MAIN PIPING KIT

NOT

1шт.

*-4

31Q8-90370

ACCUMULATOR KIT

1шт.

61

31Q8-91670

ACCUMULATOR

1шт.

62

31Q8-91680

ACCUMULATOR

1шт.

63

32E6-92080

BRACKET-ACCUM

2шт.

64

31Q8-91690

CONNECTOR

2шт.

65

32E6-92060

U-BOLT

2шт.

66

S071-034330

U-BOLT

4шт.

67

31Q8-91700

SEAL

2шт.

68

S631-024004

O-RING

2шт.

69

S205-10100B

NUT-HEX

8шт.

70

S403-10200B

WASHER-PLAIN

8шт.
