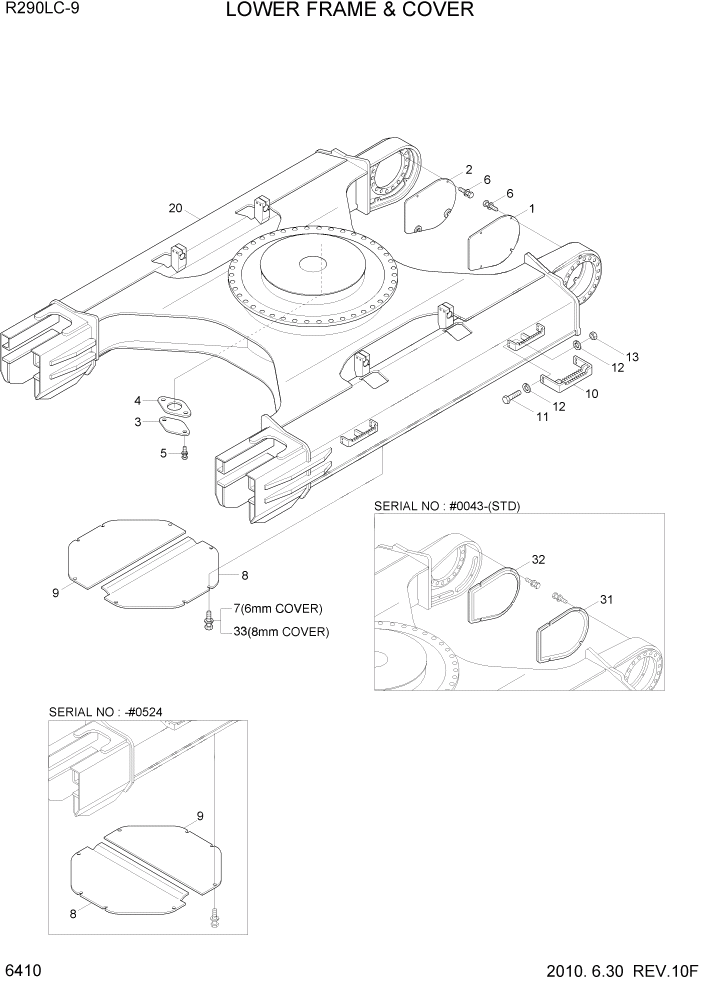

Запчасти Hyundai R290LC9 PAGE 6410 LOWER FRAME & COVER СТРУКТУРА

1

51N8-11112GG

COVER WA-T/MOTOR,LH

#0042

1шт.

1

51N8-11112GG

COVER WA-T/MOTOR,LH

6MM #0043

1шт.

1

51N8-11112GG

COVER WA-T/MOTOR,LH

H/WALKER #0008

1шт.

2

51N8-11122GG

COVER WA-T/MOTOR,RH

#0042

1шт.

2

51N8-11122GG

COVER WA-T/MOTOR,RH

6MM #0043

1шт.

2

51N8-11122GG

COVER WA-T/MOTOR,RH

H/WALKER #0008

1шт.

3

41N6-10100

COVER

1шт.

4

41E9-1306

SEAL

1шт.

5

S037-102556

BOLT-W/WASHER

2шт.

6

S037-123556

BOLT-W/WASHER

8шт.

7

S037-123556

BOLT-W/WASHER

16шт.

7

S037-124556

BOLT-W/WASHER

OPT, 800MM

8шт.

8

51N6-11211GG

COVER-BOTTOM(A)

STD, 6MM

1шт.

8

51N6-11230GG

COVER-BOTTOM(A)

OPT, 8MM

1шт.

9

51N6-11221GG

COVER-BOTTOM(B)

STD, 6MM

1шт.

9

51N6-11240GG

COVER-BOTTOM(B)

OPT, 8MM

1шт.

21

51FD-21011GG

COVER-BOTTOM WA

H/WALKER #0008

2шт.

10

51N6-02640BG

BOARD-FOOT

700MM SHOE #0007

4шт.

10

51N6-02640GG

BOARD-FOOT

700MM SHOE #0008

4шт.

10

51N6-02650BG

BOARD-FOOT

800MM SHOE #0007

4шт.

10

51N6-02650GG

BOARD-FOOT

800MM SHOE #0008

4шт.

10

51N6-02660BG

BOARD-FOOT

900MM SHOE #0007

4шт.

10

51N6-02660GG

BOARD-FOOT

900MM SHOE #0008

4шт.

11

S017-120506

BOLT-HEX

16шт.

12

S441-12000B

WASHER-HARDENED

32шт.

13

S205-12100B

NUT-HEX

16шт.

20

51N8-00012BG

LOWER FRAME WA

R290LC-9 #0004

1шт.

20

51N8-00012GG

LOWER FRAME WA

R290LC-9 #0005 - #0042

1шт.

20

51Q8-00010

LOWER FRAME WA

R290LC-9 #0043 - #0325

1шт.

20

52Q8-00010

LOWER FRAME WA

R290LC-9 #0326

1шт.

20

51N8-05011GG

LOWER FRAME WA

R290NLC-9 #0008 - #0042

1шт.

20

51Q8-05010

LOWER FRAME WA

R290NLC-9 #0043

1шт.

20

51N8-06013GG

LOWER FRAME WA

H/WALKER #0008

1шт.

31

51Q8-11130

COVER WA-T/MOTOR,LH

4MM #0043

1шт.

32

51Q8-11140

COVER WA-T/MOTOR,RH

4MM #0043

1шт.

33

S037-124556

BOLT-W/WASHER

OPT, 8MM

8шт.
