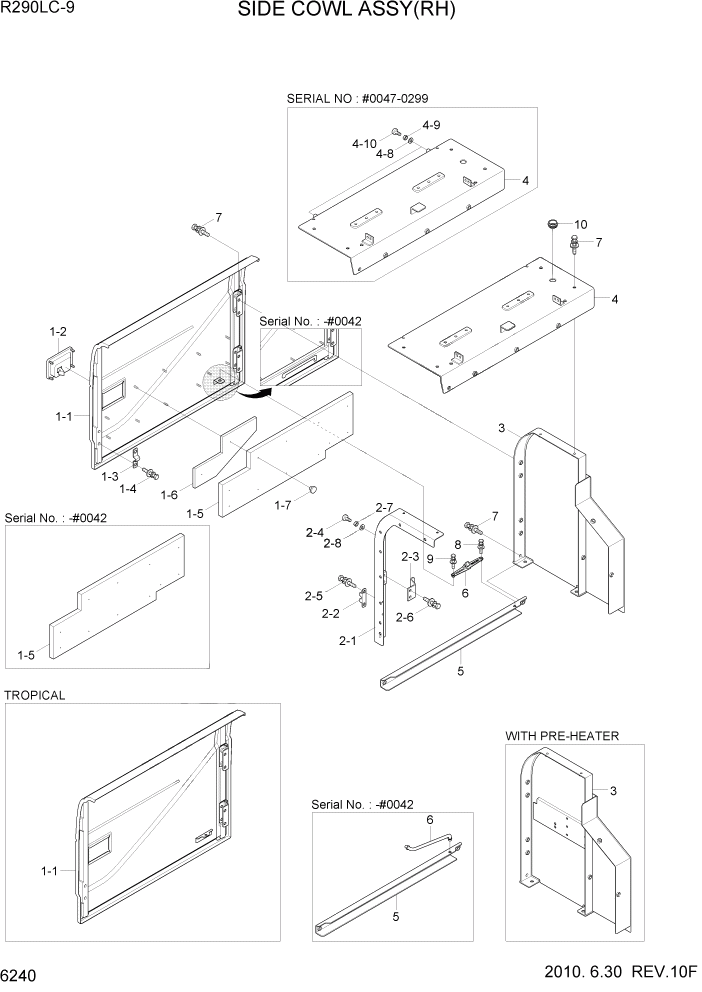

Запчасти Hyundai R290LC9 PAGE 6240 SIDE COWL ASSY(RH) СТРУКТУРА
№
Артикул
Название
Примечание
Количество
*
71Q8-53001
SIDE COWL ASSY-RH
#0042
1шт.
*
71Q8-53002
SIDE COWL ASSY-RH
#0043
1шт.
*
71Q8-53010
SIDE COWL ASSY-RH
PRE-HEATING #0078
1шт.
*
71Q8-63000
SIDE COWL ASSY-RH
TROPICAL #0517
1шт.
*
71Q8-63010
SIDE COWL ASSY-RH
TROPICAL,P/HEAT #0517
1шт.
1
71Q8-53102
SIDE COVER ASSY-RH
#0042
1шт.
1
71Q8-53103
SIDE COVER ASSY-RH
#0043
1шт.
1
71Q8-63100
SIDE COVER ASSY-RH
TROPICAL #0517
1шт.
1-1
71Q8-53112
SIDE COVER WA-RH
#0042
1шт.
1-1
71Q8-53113
SIDE COVER WA-RH
#0043
1шт.
1-1
71Q8-63110
SIDE COVER WA-RH
TROPICAL #0517
1шт.
1-3
71Q6-53911
STOPPER-A
1шт.
1-5
71Q8-53162
SPONGE
#0042
1шт.
1-5
71Q8-53163
SPONGE
#0043
1шт.
1-6
71Q8-53170
SPONGE
1шт.
2
71Q8-53301
SUPPORT ASSY-RH,FRONT
#0046
1шт.
2
71Q8-53302
SUPPORT ASSY-RH,FRONT
#0047
1шт.
2-1
71Q8-53311
SUPPORT WA-RH,FRONT
#0046
1шт.
2-1
71Q8-53312
SUPPORT WA-RH,FRONT
#0047
1шт.
2-2
71Q6-53951
STOPPER-B
1шт.
2-3
71Q6-53330
PLATE-LOCK
1шт.
2-4
71EH-13150
BUMPER-RUBBER
#0046
1шт.
2-4
71EH-13150
BUMPER-RUBBER
#0047
2шт.
2-6
71Q6-50020
BOLT-W/WASHER
2шт.
2-8
S403-10200B
WASHER-PLAIN
#0046
1шт.
2-8
S403-10200B
WASHER-PLAIN
#0047
2шт.
3
71Q8-53411
SUPPORT WA-RH,REAR
#0046
1шт.
3
71Q8-53412
SUPPORT WA-RH,REAR
#0047
1шт.
3
71Q8-63410
SUPPORT WA-RH,REAR
PRE-HEATING #0078
1шт.
4
71Q8-53501
HOOD WA-PUMP
#0046
1шт.
4
71Q8-53502
HOOD WA-PUMP
#0047
1шт.
4-9
S403-10200B
WASHER-PLAIN
#0047 - #0229
2шт.
4-1
71EH-13150
BUMPER-RUBBER
#0047 - #0229
2шт.
5
71Q8-53612
SUPPORT WA-RH,BOTTOM
#0042
1шт.
5
71Q8-53613
SUPPORT WA-RH,BOTTOM
#0043
1шт.
6
71ND-53851
STAY ASSY
#0042
1шт.
6
71Q6-53180
STAY ASSY-RH
#0043
1шт.
10
S880-132060
GROMMET
#0047
1шт.
Выбрано товаров: 48
