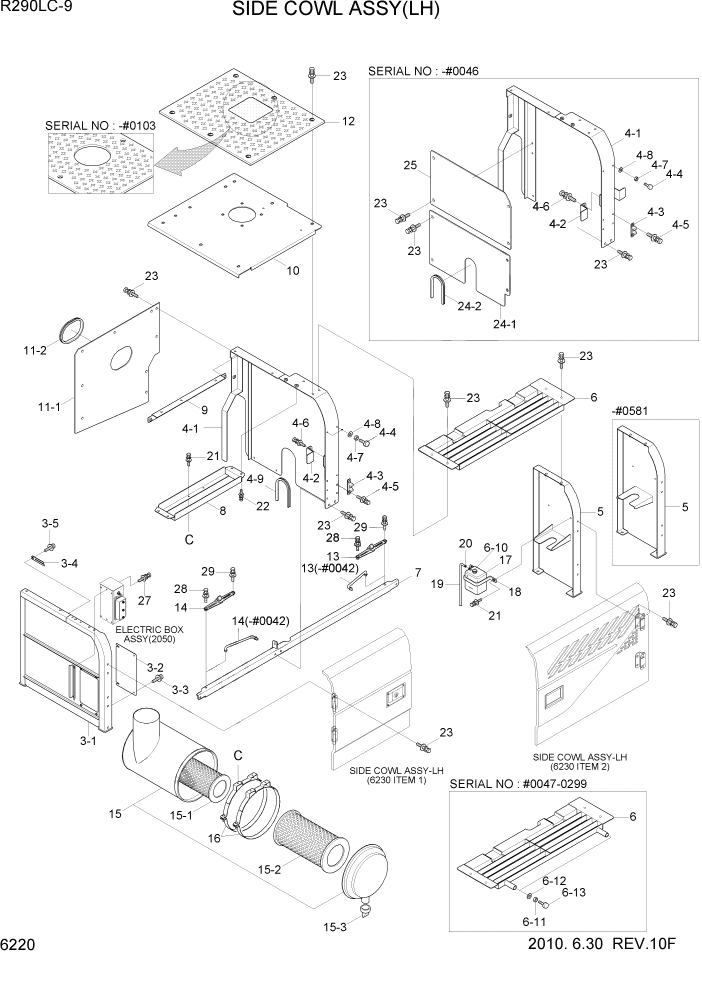

Запчасти Hyundai R290LC9 PAGE 6220 SIDE COWL ASSY(LH) СТРУКТУРА

*

71Q8-52002

SIDE COWL ASSY-LH

#0013

1шт.

*

71Q8-52003

SIDE COWL ASSY-LH

#0014 - #0019

1шт.

*

71Q8-52004

SIDE COWL ASSY-LH

#0020 - #0042

1шт.

*

71Q8-52005

SIDE COWL ASSY-LH

#0043 - #0077

1шт.

*

71Q8-52006

SIDE COWL ASSY-LH

#0078 - #0103

1шт.

*

71Q8-52007

SIDE COWL ASSY-LH

#0104

1шт.

*

71Q8-52020

SIDE COWL ASSY-LH

TROPICAL #0517

1шт.

3

71Q8-52301

SUPPORT ASSY

#0019

1шт.

3

71Q8-52302

SUPPORT ASSY

#0020

1шт.

3-1

71Q8-52312

SUPPORT WA

1шт.

3-1

71Q8-52312

SUPPORT WA

#0019

1шт.

3-1

71Q8-52313

SUPPORT WA

#0020

1шт.

3-2

71Q6-52392

PLATE-SCREEN

1шт.

3-3

S035-082056

BOLT-W/WASHER

4шт.

3-4

S593-000802

CLIP-HARNESS

#0020 - #0142

2шт.

3-4

S593-000902

CLIP-HARNESS

#0143

2шт.

3-5

S037-101526

BOLT-W/WASHER

#0020

2шт.

4

71Q8-52402

SUPPORT ASSY

1шт.

4

71Q8-52402

SUPPORT ASSY

#0046

1шт.

4

71Q8-52403

SUPPORT ASSY

#0047 - #0077

1шт.

4

71Q8-52404

SUPPORT ASSY

#0078

1шт.

4-1

71Q8-52412

SUPPORT WA-LH,MID

#0046

1шт.

4-1

71Q8-52413

SUPPORT WA-LH,MID

#0047 - #0077

1шт.

4-1

71Q8-52414

SUPPORT WA-LH,MID

#0078

1шт.

4-2

71Q6-53330

PLATE-LOCK

2шт.

4-3

71Q6-53951

STOPPER-B

2шт.

4-4

71EH-13150

BUMPER-RUBBER

#0046

2шт.

4-4

71EH-13150

BUMPER-RUBBER

#0047

4шт.

4-5

S035-082026

BOLT-W/WASHER

4шт.

4-6

71Q6-50020

BOLT-W/WASHER

4шт.

4-7

S205-10100B

NUT-HEX

#0046

2шт.

4-7

S205-10100B

NUT-HEX

#0047

4шт.

4-8

S403-10200B

WASHER-PLAIN

#0046

2шт.

4-8

S403-10200B

WASHER-PLAIN

#0047

4шт.

4-9

S791-020040

GROMMET-PLATE

#0047

1шт.

5

71Q8-52511

SUPPORT WA-LH,REAR

1шт.

6

71Q8-52602

SUPPORT-ENG HOOD

#0046

1шт.

6

71Q8-52603

SUPPORT-ENG HOOD

#0047

1шт.

6-11

S205-10100B

NUT-HEX

#0047 - #0229

2шт.

6-12

S403-10200B

WASHER-PLAIN

#0047 - #0229

2шт.

6-13

71EH-13150

BUMPER-RUBBER

#0047 - #0229

2шт.

7

71Q8-52701

SUPPORT WA-BOTTOM

#0042

1шт.

7

71Q8-52702

SUPPORT WA-BOTTOM

#0043

1шт.

8

71Q8-52902

SUPPORT WA

1шт.

9

71Q8-52952

SUPPORT WA-MCV HOOD

#0103

1шт.

9

71Q8-62950

SUPPORT WA-MCV HOOD

#0104

1шт.

10

71Q8-56101

HOOD WA-A/CLEANER

#0103

1шт.

10

71Q8-66100

HOOD WA-A/CLEANER

#0104

1шт.

11

71Q8-56202

SCREEN-MCV

1шт.

11-1

71Q8-56212

SCREEN-MCV

1шт.

11-2

S791-020060

GROMMET-PLATE

1шт.

12

71Q8-56400

NON SLIP PLATE

#0103

1шт.

12

71Q8-56401

NON SLIP PLATE

#0104

1шт.

13

71ND-53801

STAY WA

#0042

1шт.

13

71Q6-52180

STAY ASSY-LH

#0043

1шт.

14

71ND-53851

STAY ASSY

#0042

1шт.

14

71Q6-53180

STAY ASSY-RH

#0043

1шт.

15

11Q8-20300

AIR CLEANER ASSY

1шт.

15-1

11Q8-20310

ELEMENT-SAFETY

1шт.

15-2

11Q8-20320

ELEMENT-PRIMARY

1шт.

15-3

11Q8-20330

VACUUM-VALVE

1шт.

16

11Q8-20040

CLAMP-BAND

2шт.

17

11N8-41070

TANK-RESERVOIR

1шт.

17-1

MH100020

CAP-RESERVOIR TANK

1шт.

18

11N8-41080

CLAMP-RESERVOIR TANK

1шт.

19

E111-2504

HOSE

1шт.

20

S520-015000

CLAMP-HOSE

1шт.

21

S035-082026

BOLT-W/WASHER

6шт.

22

71Q6-50020

BOLT-W/WASHER

4шт.

23

71Q6-50025

BOLT-W/WASHER

#0046

41шт.

23

71Q6-50025

BOLT-W/WASHER

#0047

33шт.

24

71Q8-55451

SCREEN

#0046

1шт.

24-1

71Q8-55461

SCREEN

#0046

1шт.

24-2

S791-020040

GROMMET-PLATE

#0046

1шт.

25

71Q8-55401

SCREEN

#0046

1шт.

27

S037-102056

BOLT-W/WASHER

#0014 - #0019

2шт.

27

S037-101556

BOLT-W/WASHER

#0020

2шт.

28

S037-102556

BOLT-W/WASHER

#0043

2шт.

29

S037-103556

BOLT-W/WASHER

#0043

2шт.
