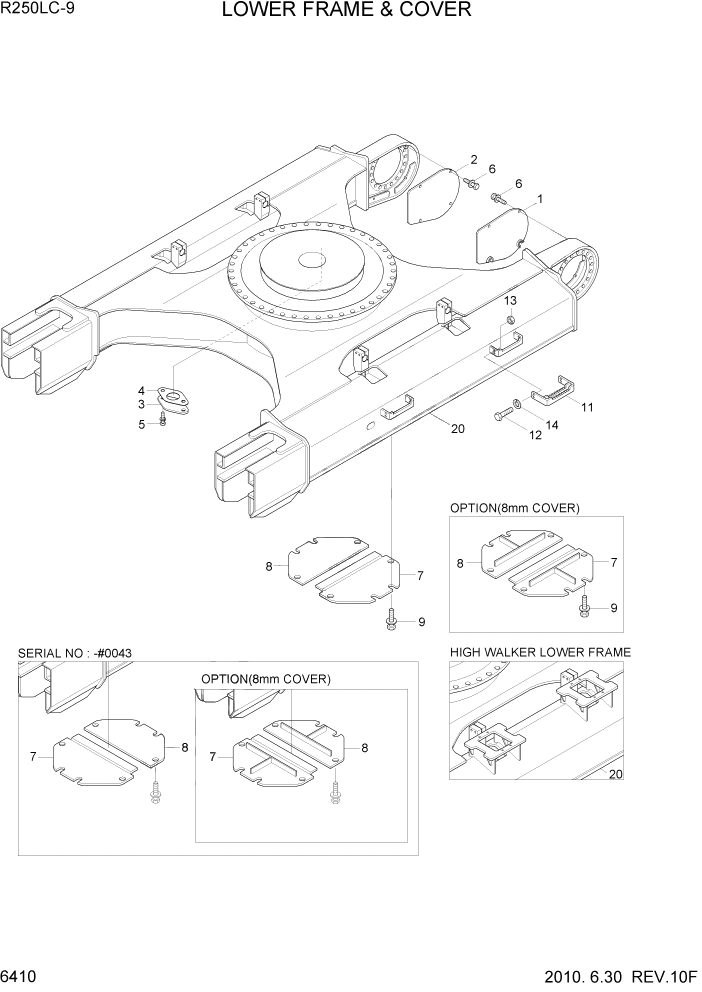

Запчасти Hyundai R250LC9 PAGE 6410 LOWER FRAME & COVER СТРУКТУРА

1

51N7-11110GG

COVER WA-T/MOTOR,LH

1шт.

2

51N7-11120GG

COVER WA-T/MOTOR,RH

1шт.

3

41N6-10100

COVER

1шт.

4

41E9-1306

SEAL

1шт.

5

S037-102056

BOLT-W/WASHER

2шт.

6

S037-123556

BOLT-W/WASHER

8шт.

7

51N6-11211GG

COVER-BOTTOM(A)

STD, 6MM

1шт.

7

51N6-11230GG

COVER-BOTTOM(A)

OPT, 8MM

1шт.

8

51N6-11221GG

COVER-BOTTOM(B)

STD, 6MM

1шт.

8

51N6-11240GG

COVER-BOTTOM(B)

OPT, 8MM

1шт.

9

S037-123556

BOLT-W/WASHER

8шт.

11

51N6-02640GG

BOARD-FOOT

700MM SHOE

4шт.

11

51N6-02650GG

BOARD-FOOT

800MM SHOE

4шт.

11

51N6-02660GG

BOARD-FOOT

900MM SHOE

4шт.

12

S017-120506

BOLT-HEX

16шт.

13

S205-12100B

NUT-HEX

16шт.

14

S441-12000B

WASHER-HARDENED

32шт.

20

51Q7-00011

LOWER FRAME WA

R250LC-9

1шт.

20

51Q7-05010

LOWER FRAME WA

R250NLC-9

1шт.

20

56N7-06010GG

LOWER FRAME WA

HIGH WALKER

1шт.
