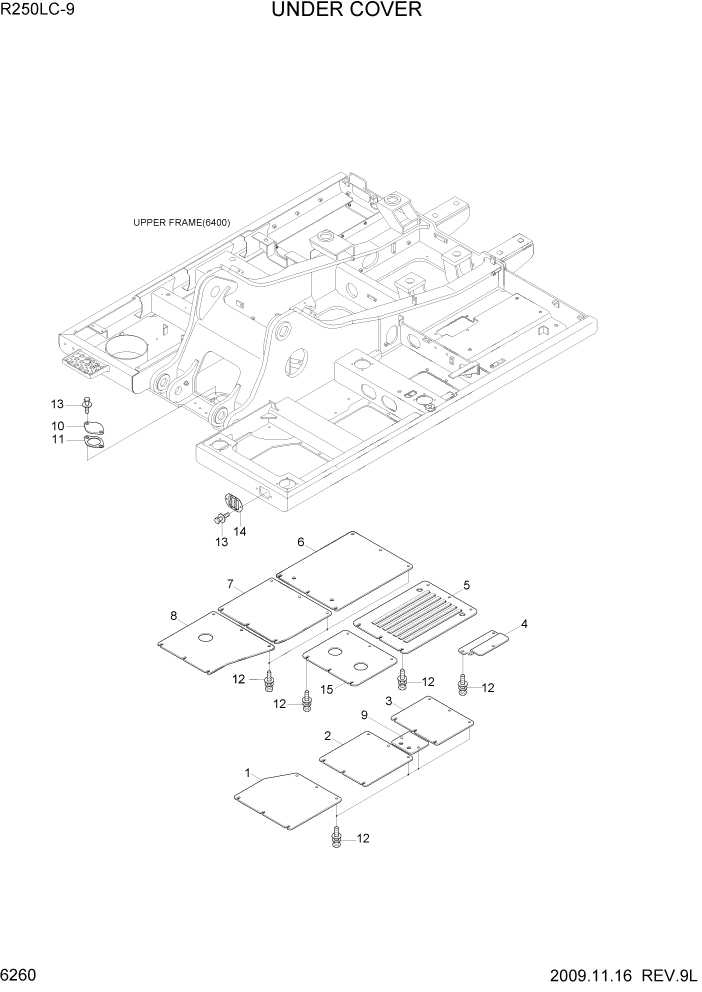

Запчасти Hyundai R250LC9 PAGE 6260 UNDER COVER СТРУКТУРА

1

41Q6-10010

UNDER COVER-CABIN

#0007

1шт.

1

41Q6-10011

UNDER COVER-CABIN

#0008

1шт.

2

41Q6-10020

UNDER COVER-CABIN

1шт.

3

41Q6-10030

UNDER COVER-CABIN

1шт.

4

41Q7-10042

UNDER COVER-RADIATOR

1шт.

5

41Q7-10050

UNDER COVER-ENGINE

#0007

1шт.

5

41Q7-10051

UNDER COVER-ENGINE

#0008

1шт.

6

41Q7-10060

UNDER COVER-PUMP

1шт.

7

41Q7-10070

UNDER COVER-H/TANK

1шт.

8

41Q7-10080

UNDER COVER-F/TANK

#0007

1шт.

8

41Q7-10081

UNDER COVER-F/TANK

#0008

1шт.

9

41Q6-10090

UNDER COVER-CAB(D)

1шт.

10

41N6-10100

COVER

1шт.

11

41E9-1306

SEAL

1шт.

12

S037-102566

BOLT-W/WASHER

#0007

47шт.

12

41Q8-60030

BOLT-W/WASHER

#0008 - #0026

47шт.

12

41Q8-60030

BOLT-W/WASHER

#0027

53шт.

13

S037-102556

BOLT-W/WASHER

#0007

2шт.

13

S037-102556

BOLT-W/WASHER

#0008

6шт.

14

43Q8-15290

GUARD-LAMP

#0008

2шт.

15

41Q7-10110

UNDER COVER-MCV

OPTION #0027

1шт.
