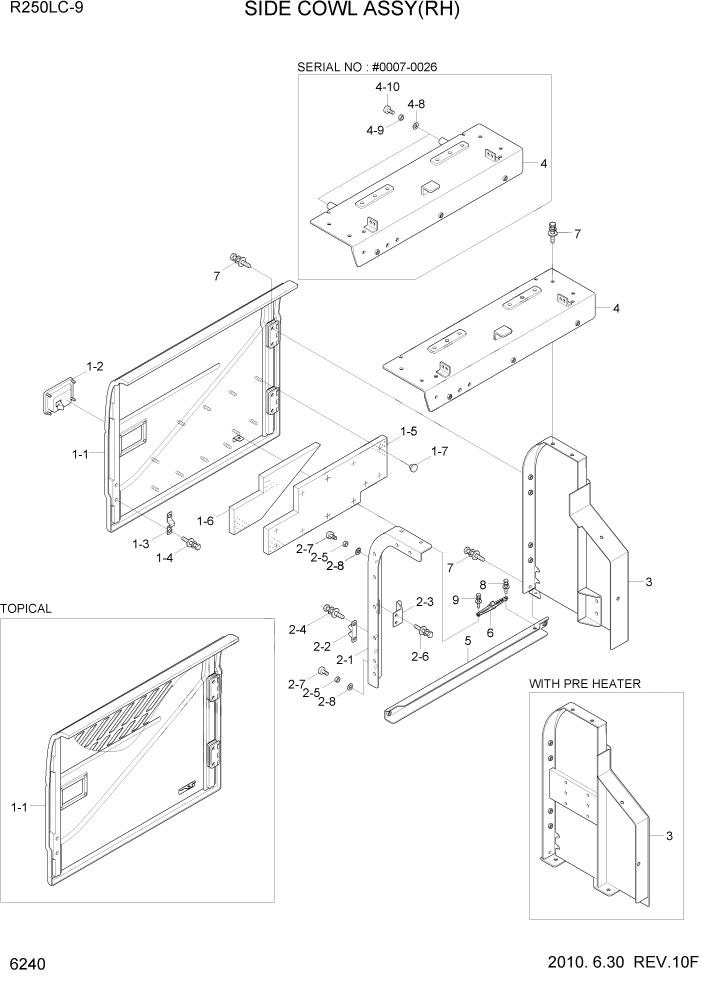

Запчасти Hyundai R250LC9 PAGE 6240 SIDE COWL ASSY(RH) СТРУКТУРА

*

71Q7-53002

SIDE COWL ASSY-RH

STD

1шт.

*

71Q7-53010

SIDE COWL ASSY-RH

WITH PRE-HEATER #0027

1шт.

*

71Q7-63000

SIDE COWL ASSY-RH

TROPICAL #0043

1шт.

*

71Q7-63010

SIDE COWL ASSY-RH

TROPICAL,P/HEAT #0043

1шт.

1

71Q8-53103

SIDE COVER ASSY-RH

1шт.

1

71Q8-63100

SIDE COVER ASSY-RH

TROPICAL #0043

1шт.

1-1

71Q8-53113

SIDE COVER WA-RH

1шт.

1-1

71Q8-63110

SIDE COVER WA-RH

TROPICAL #0043

1шт.

1-2

71Q6-52190

LATCH ASSY

1шт.

1-3

71Q6-53911

STOPPER-A

1шт.

1-4

S035-082026

BOLT-W/WASHER

2шт.

1-5

71Q8-53163

SPONGE

EXCEPT TROPICAL

1шт.

1-6

71Q8-53170

SPONGE

EXCEPT TROPICAL

1шт.

1-7

71EM-51580

CAP-STUD BOLT

EXCEPT TROPICAL

10шт.

2

71Q6-53301

SUPPORT ASSY-RH,FR

#0006

1шт.

2

71Q6-53302

SUPPORT ASSY-RH,FR

#0007

1шт.

2-1

71Q6-53311

SUPPORT WA-RH,FR

#0006

1шт.

2-1

71Q6-53312

SUPPORT WA-RH,FR

#0007

1шт.

2-2

71Q6-53951

STOPPER-B

2шт.

2-3

71Q6-53330

PLATE-LOCK

1шт.

2-4

S035-082026

BOLT-W/WASHER

2шт.

2-5

S205-101006

NUT-HEX

#0006

1шт.

2-5

S205-101006

NUT-HEX

#0007

2шт.

2-6

71Q6-50020

BOLT-W/WASHER

2шт.

2-7

71EH-13150

BUMPER-RUBBER

#0006

1шт.

2-7

71EH-13150

BUMPER-RUBBER

#0007

2шт.

2-8

S403-10200B

WASHER-PLAIN

#0006

1шт.

2-8

S403-10200B

WASHER-PLAIN

#0007

2шт.

3

71Q7-53411

SUPPORT WA-RH,REAR

1шт.

3

71Q7-63410

SUPPORT WA-RH,REAR

WITH PRE-HEATER #0027

1шт.

4

71Q7-53500

HOOD WA-PUMP

#0006

1шт.

4

71Q7-53501

HOOD WA-PUMP

#0007

1шт.

4-8

S403-10200B

WASHER-PLAIN

#0007 - #0026

2шт.

4-9

S205-10100B

NUT-HEX

#0007 - #0026

2шт.

4-1

71EH-13150

BUMPER-RUBBER

#0007 - #0026

2шт.

5

71Q8-53613

SUPPORT WA-RH,BOTTOM

1шт.

6

71Q6-53180

STAY ASSY-RH

1шт.

7

71Q6-50025

BOLT-W/WASHER

10шт.

8

S037-102556

BOLT-W/WASHER

1шт.

9

S037-103556

BOLT-W/WASHER

1шт.
