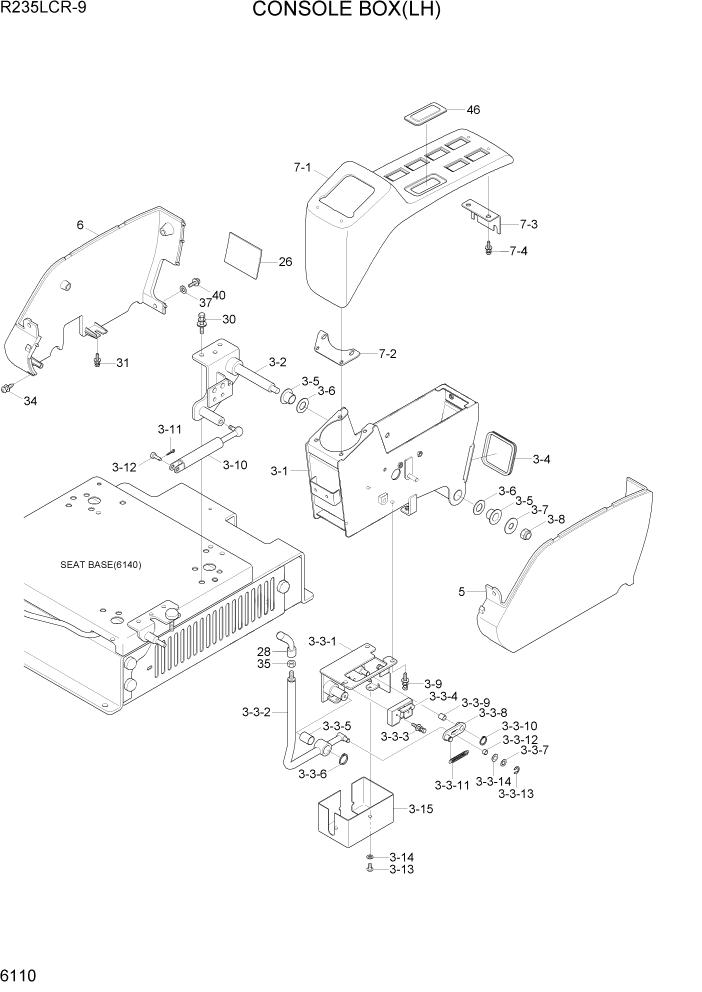

Запчасти Hyundai R235LCR9 PAGE 6110 CONSOLE BOX(LH) СТРУКТУРА

3

75Q4-20170

CONSOLE FRAME ASSY-LH

1шт.

3-1

75Q4-20180

CONSOLE FRAME WA-LH

1шт.

3-2

71M9-22192

BRACKET WA-CONSOLE, RR

1шт.

3-3

75Q4-20360

TILT ASSY

1шт.

3-3-1

75Q4-21170

BRACKET WA-TILT

1шт.

3-3-2

75Q4-20370

LEVER WA-SAFETY

1шт.

3-3-3

S035-062026

BOLT-W/WASHER

2шт.

3-3-4

71M8-20570

LATCH-TILT

1шт.

3-3-5

S731-020025

BUSHING-DU

1шт.

3-3-6

S601-020004

RING-RETAINING

1шт.

3-3-7

S403-08200B

WASHER-PLAIN

1шт.

3-3-8

71M8-20651

LINK-SAFETY LEVER

1шт.

3-3-9

S731-010012

BUSHING-DU

1шт.

3-3-10

S601-010002

RING-RETAINING

1шт.

3-3-11

71N6-21610

SPRING

1шт.

3-3-12

71M8-21420

ROLLER

1шт.

3-3-13

P560-040002

RING-RETAINING

1шт.

3-3-14

71M8-21430

SHIM

1шт.

3-4

71Q6-21420

GROMMET

1шт.

3-5

S731-020020

BUSHING-DU

2шт.

3-6

71Q6-22630

SHIM-CONSOLE

2шт.

3-7

71M9-22210

SHIM-ROUND

1шт.

3-8

S275-12000B

NUT-SELF LOCKING

1шт.

3-9

S035-081526

BOLT-W/WASHER

3шт.

3-1

71Q4-20050

SPRING-GAS

1шт.

3-11

S461-160252

PIN-SPLIT

1шт.

3-12

S491-080252

PIN-CLEVIS

1шт.

3-13

S161-060106

SCREW-CROSS R/ROUND

2шт.

3-14

S403-06200B

WASHER-PLAIN

2шт.

3-15

75Q4-20380

COVER

1шт.

5

71M9-21011

CONSOLE LOW-LH

1шт.

6

71M9-21021

CONSOLE LOW-RH

1шт.

7

75Q4-21060

CONSOLE UP ASSY-LH

1шт.

7-1

75Q4-20050

CONSOLE BOX UP-LH

1шт.

7-2

75Q4-22470

BRACKET

1шт.

7-3

75Q4-21160

BRACKET

1шт.

7-4

S002-06010B

SCREW-TRUS HEAD

1шт.

26

71Q6-22670

PROTECTOR

2шт.

28

71M8-20750

KNOB-SAFETY LEVER

1шт.

30

S035-082526

BOLT-W/WASHER

4шт.

31

S002-06015B

SCREW-TRUS HEAD

8шт.

34

S151-040156

SCREW-TAPPING

1шт.

35

S205-08100B

NUT-HEX

1шт.

37

S403-06500B

WASHER-PLAIN

2шт.

40

S002-06010B

SCREW-TRUS HEAD

2шт.

46

75Q4-22600

CAP-DOZER LEVER

1шт.
