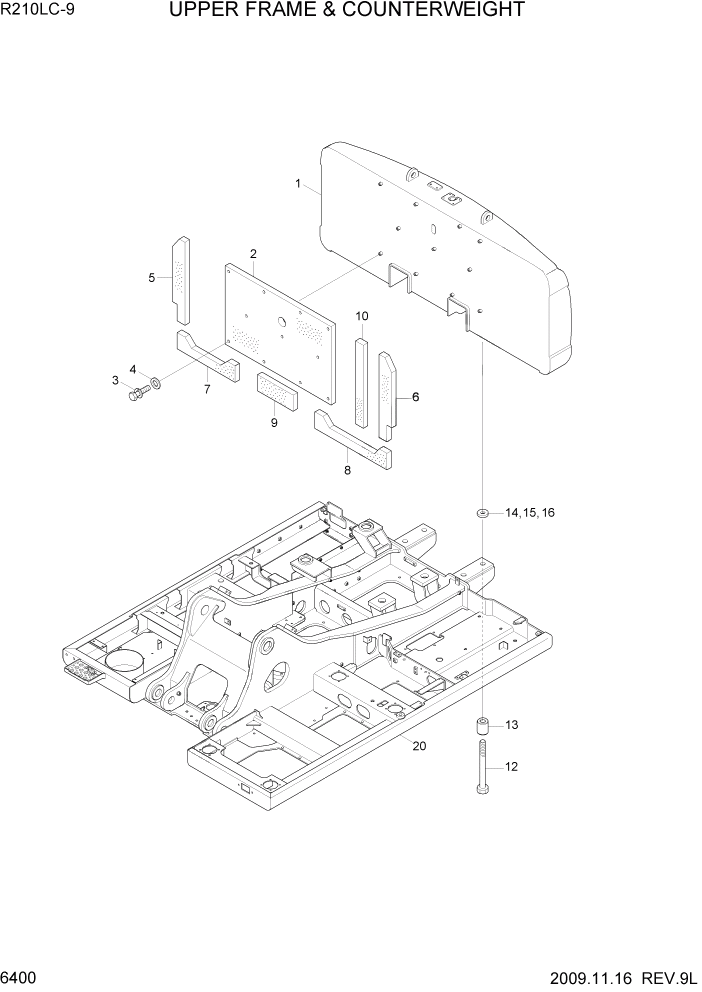

Запчасти Hyundai R210LC9 PAGE 6400 UPPER FRAME & COUNTERWEIGHT СТРУКТУРА

*

41Q6-21002

COUNTERWEIGHT ASSY

STD, 3800KG

1шт.

*

41Q6-23001

COUNTERWEIGHT ASSY

OPT, 5300KG

1шт.

*

41Q6-24001

COUNTERWEIGHT ASSY

OPT, 4200KG

1шт.

*

41Q6-25001

COUNTERWEIGHT ASSY

OPT, 4500KG

1шт.

*

41Q6-21002

COUNTERWEIGHT ASSY

STD, 3800KG #0005

1шт.

*

41Q6-21003

COUNTERWEIGHT ASSY

STD, 3800KG #0006

1шт.

1

41Q6-23501

COUNTERWEIGHT WA

OPT, 5300KG

1шт.

*

41Q6-21003

COUNTERWEIGHT ASSY

STD, 3800KG #0006

1шт.

1

41Q6-24501

COUNTERWEIGHT WA

OPT, 4200KG

1шт.

1

41Q6-25501

COUNTER WEIGHT WA

OPT, 4500KG

1шт.

*

41Q6-23001

COUNTERWEIGHT ASSY

OPT, 5300KG #0005

1шт.

*

41Q6-23002

COUNTERWEIGHT ASSY

OPT, 5300KG #0006

1шт.

*

41Q6-23002

COUNTER WEIGHT ASSY

OPT, 5300KG #0006

1шт.

*

41Q6-24001

COUNTERWEIGHT ASSY

OPT, 4200KG #0005

1шт.

*

41Q6-24002

COUNTERWEIGHT ASSY

OPT, 4200KG #0006

1шт.

*

41Q6-24002

COUNTER WEIGHT ASSY

OPT, 4200KG #0006

1шт.

*

41Q6-25001

COUNTERWEIGHT ASSY

OPT, 4500KG #0005

1шт.

*

41Q6-25002

COUNTERWEIGHT ASSY

OPT, 4500KG #0006

1шт.

*

41Q6-25002

COUNTER WEIGHT ASSY

OPT, 4500KG #0006

1шт.

1

41Q6-22002

COUNTERWEIGHT WA

STD, 3800KG #0005

1шт.

1

41Q6-22003

COUNTERWEIGHT WA

STD, 3800KG #0006 - #0119

1шт.

1

41Q6-22004

COUNTERWEIGHT WA

STD, 3800KG #0120

1шт.

1

41Q6-22003

COUNTERWEIGHT WA

STD, 3800KG #0006

1шт.

1

41Q6-23501

COUNTERWEIGHT WA

OPT, 5300KG #0005

1шт.

1

41Q6-23502

COUNTERWEIGHT WA

OPT, 5300KG #0006 - #0119

1шт.

1

41Q6-23503

COUNTERWEIGHT WA

OPT, 5300KG #0120

1шт.

1

41Q6-23502

COUNTERWEIGHT WA

OPT, 5300KG #0006

1шт.

1

41Q6-24501

COUNTERWEIGHT WA

OPT, 4200KG #0005

1шт.

1

41Q6-24502

COUNTERWEIGHT WA

OPT, 4200KG #0006 - #0119

1шт.

1

41Q6-24503

COUNTERWEIGHT WA

OPT, 4200KG #0120

1шт.

1

41Q6-24502

COUNTERWEIGHT WA

OPT, 4200KG #0006

1шт.

1

41Q6-25501

COUNTERWEIGHT WA

OPT, 4500KG #0005

1шт.

1

41Q6-25502

COUNTERWEIGHT WA

OPT, 4500KG #0006 - #0119

1шт.

1

41Q6-25503

COUNTERWEIGHT WA

OPT, 4500KG #0120

1шт.

1

41Q6-25502

COUNTER WEIGHT WA

OPT, 4500KG #0006

1шт.

2

41Q6-22300

SPONGE(A)

#0005

1шт.

2

41Q6-22301

SPONGE(A)

#0006

1шт.

3

S037-102556

BOLT-W/WASHER

11шт.

4

61L1-2037

WASHER-HARDENED

11шт.

5

41N6-22310

SPONGE(B)

1шт.

6

41N6-22320

SPONGE(C)

1шт.

7

41Q6-22332

SPONGE(D)

1шт.

8

41Q6-22342

SPONGE(E)

1шт.

9

41Q6-22352

SPONGE(F)

1шт.

10

41Q6-22360

SPONGE(G)

1шт.

12

S018-361356

BOLT-HEX

4шт.

13

41N6-22201

SPACER

4шт.

14

S390-050075

SHIM-ROUND(0.5T)

5шт.

15

S391-050075

SHIM-ROUND(1.0T)

5шт.

16

S392-050075

SHIM-ROUND(2.0T)

5шт.

20

41Q6-00013

UPPER FRAME WA

#0092

1шт.

20

41Q6-00014

UPPER FRAME WA

#0093

1шт.

20

41Q6-70011

UPPER FRAME WA

HIGH WALKER #0093

1шт.

20

41Q6-00012

UPPER FRAME WA

1шт.
