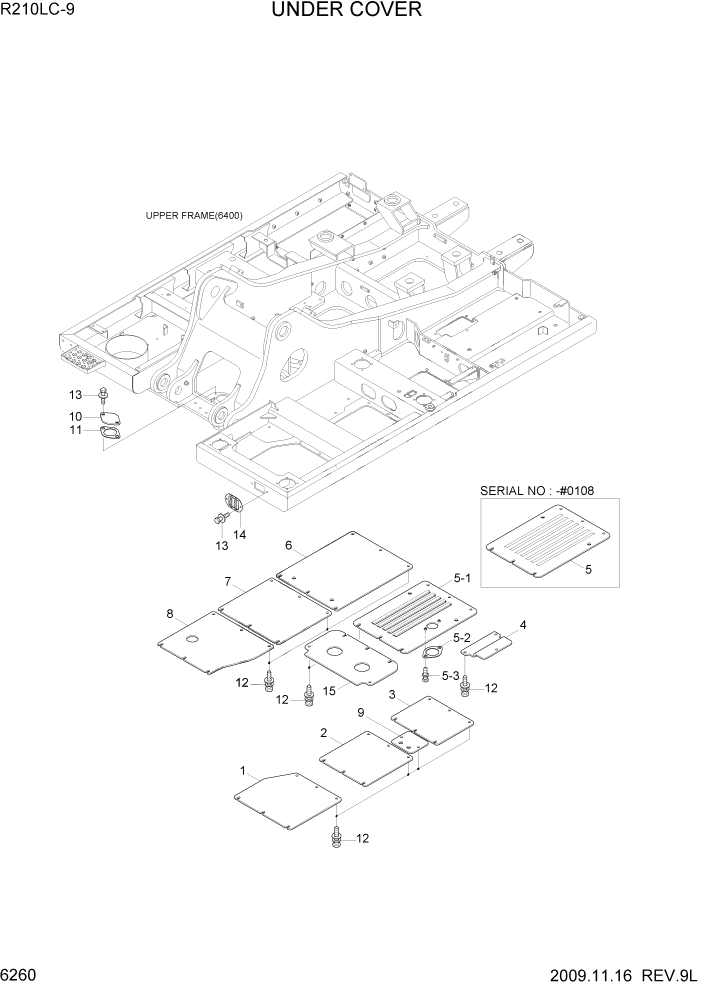

Запчасти Hyundai R210LC9 PAGE 6260 UNDER COVER СТРУКТУРА

1

41Q6-10010

UNDER COVER-CABIN

#0092

1шт.

1

41Q6-10011

UNDER COVER-CABIN

#0093

1шт.

1

41Q6-10010

UNDER COVER-CABIN

#0092

1шт.

1

41Q6-10011

UNDER COVER-CABIN

#0093

1шт.

2

41Q6-10020

UNDER COVER-CABIN

1шт.

3

41Q6-10030

UNDER COVER-CABIN

1шт.

4

41Q6-10041

UNDER COVER-RADIATOR

1шт.

5

41Q6-10051

UNDER COVER-ENGINE

#0108

1шт.

5

41Q6-10150

UNDER COVER ASSY

#0109

1шт.

5-1

41Q6-10160

UNDER COVER-ENGINE

#0109

1шт.

5-2

41Q6-10170

COVER-UNDER

#0109

1шт.

5-3

41Q8-60025

BOLT-W/WASHER

#0109

2шт.

6

41Q6-10061

UNDER COVER-PUMP

1шт.

7

41Q6-10070

UNDER COVER-H/TANK

1шт.

8

41Q6-10080

UNDER COVER-F/TANK

STD #0092

1шт.

8

41Q6-10081

UNDER COVER-F/TANK

STD #0093

1шт.

8

41Q6-10681

UNDER COVER-F/TANK

HIGH WALKER

1шт.

9

41Q6-10090

UNDER COVER-CAB(D)

1шт.

10

41N6-10100

COVER

1шт.

11

41E9-1306

SEAL

1шт.

12

S037-102566

BOLT-W/WASHER

#0092

47шт.

12

41Q8-60030

BOLT-W/WASHER

#0093 - #0180

47шт.

12

41Q8-60030

BOLT-W/WASHER

#0181

52шт.

13

S037-102556

BOLT-W/WASHER

#0092

2шт.

13

S037-102556

BOLT-W/WASHER

#0093

6шт.

14

43Q8-15290

GUARD-LAMP

#0093

2шт.

15

41Q6-10110

UNDER COVER-MCV

OPTION #0181

1шт.
