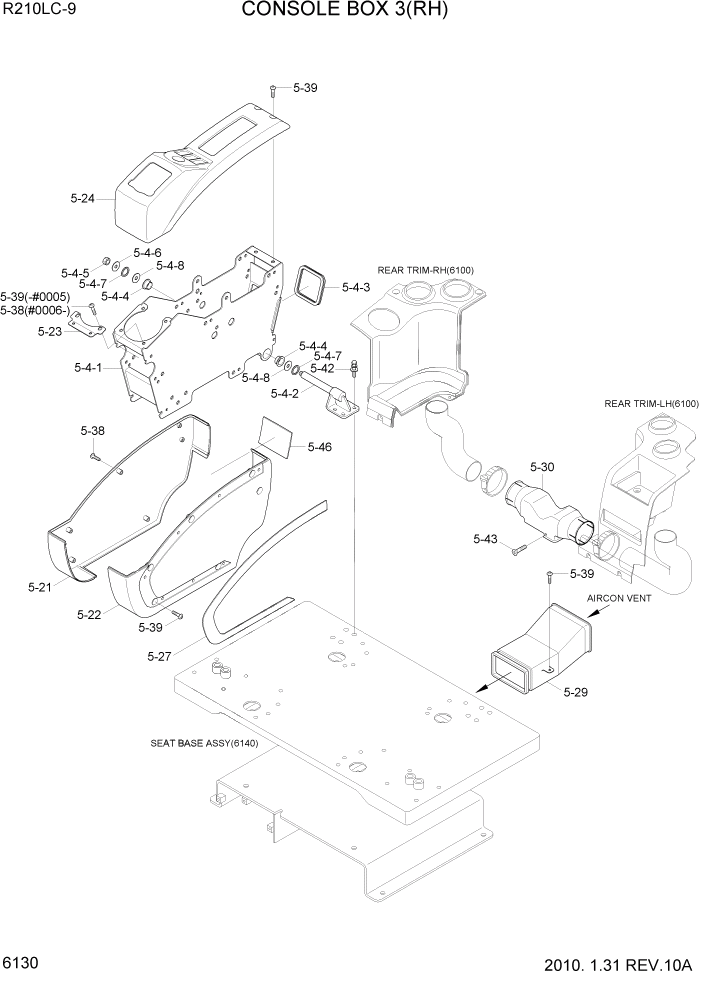

Запчасти Hyundai R210LC9 PAGE 6130 CONSOLE BOX 3(RH) СТРУКТУРА

5

@

BOTTOM PLATE SUB ASSY

NOT

1шт.

5-4

71Q6-21301

C/FRAME ASSY-RH

1шт.

5

@

BOTTOM PLATE SUB ASSY

NOT

1шт.

5-4

71Q6-21301

CONSOLE FRAME ASSY-RH

1шт.

5-4-1

71Q4-21341

FRAME WA-CONSOLE

1шт.

5-4-2

71Q6-21311

BRACKET WA-CONSOLE

1шт.

5-4-3

71Q6-21420

GROMMET

1шт.

5-4-4

S731-020020

BUSHING-DU

2шт.

5-4-4

S731-020020

BUSHING-DU

2шт.

5-4-5

S275-12000B

NUT-SELF LOCKING

1шт.

5-4-6

71Q6-22690

SHIM-ROUND

1шт.

5-4-7

71Q6-22631

SHIM-CONSOLE

2шт.

5-4-8

71Q6-23080

SHIM-CONSOLE

3шт.

5-21

71Q6-22050

CONSOLE COVER-LOW,RH

#0165

1шт.

5-21

71Q6-22050GG

CONSOLE COVER-LOW,RH

#0166

1шт.

5-22

71Q6-22010

CONSOLE COVER-LOW,LH

#0165

1шт.

5-22

71Q6-22010GG

CONSOLE COVER-LOW,LH

#0166

1шт.

5-23

71Q6-21610

BRACKET-CONSOLE UP

1шт.

5-24

71Q6-22070

CONSOLE COVER-UP,RH

#0165

1шт.

5-24

71Q6-22070GG

CONSOLE COVER-UP,RH

#0166

1шт.

5-38

S002-06010B

SCREW-TRUS HEAD

#0006

8шт.

5-27

71Q6-22031

CONSOLE COVER-TRIM

1шт.

5-39

S002-06015B

SCREW-TRUS HEAD

#0006

9шт.

5-29

71Q6-22590

DUCT-SEAT

1шт.

5-3

71Q6-22280

DUCT-VENT(1)

1шт.

5-38

S002-06010B

SCREW-TRUS HEAD

#0005

6шт.

5-38

S002-06010B

SCREW-TRUS HEAD

#0006

8шт.

5-39

S002-06015B

SCREW-TRUS HEAD

#0005

11шт.

5-39

S002-06015B

SCREW-TRUS HEAD

#0006

9шт.

5-42

S035-082026

BOLT-W/WASHER

4шт.

5-43

S151-050106

SCREW-TAPPING

5шт.

5-46

71Q6-22670

PROTECTOR

1шт.

5-27

71Q6-22030

CONSOLE COVER-TRIM

1шт.

5-29

71Q6-22590

DUCT-SEAT

1шт.

5-3

71Q6-22280

DUCT-VENT(1)

1шт.

5-38

S002-06010B

SCREW-TRUS HEAD

6шт.

5-39

S002-06015B

SCREW-TRUS HEAD

11шт.

5-42

S035-082026

BOLT-W/WASHER

4шт.

5-43

S151-050106

SCREW-TAPPING

5шт.

5-46

71Q6-22670

PROTECTOR

1шт.
