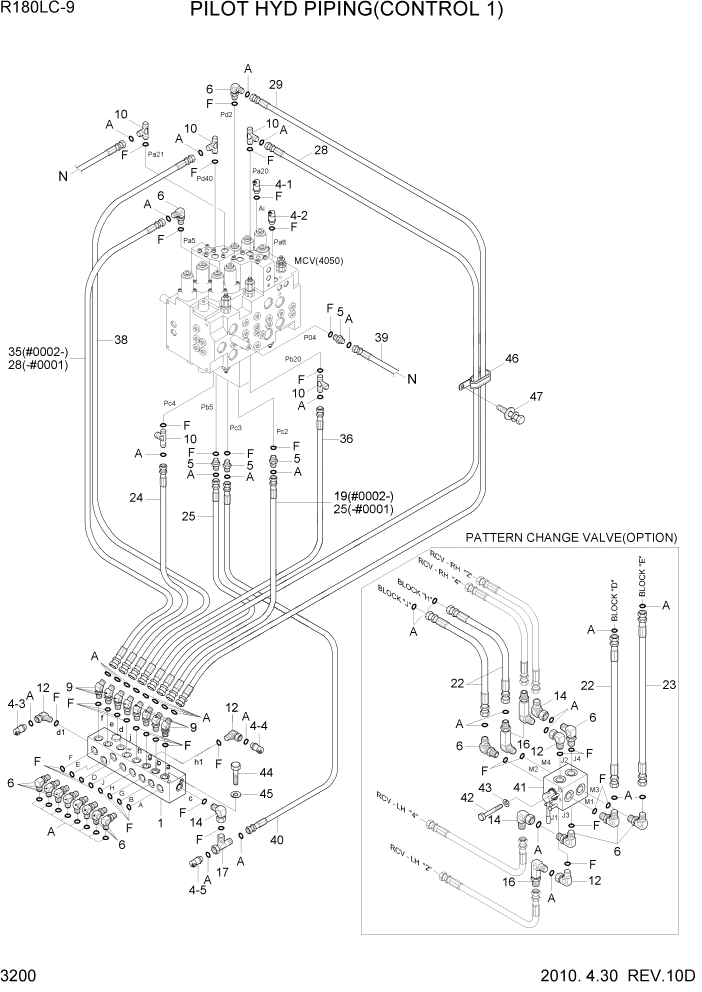

Запчасти Hyundai R180LC9 PAGE 3200 PILOT HYD PIPING(CONTROL 1) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

1

31Q6-20171

BLOCK-TERMINAL

1шт.

1

31Q6-20171

BLOCK-TERMINAL

1шт.

4-2

31Q8-40520

PRESSURE SENSOR

WORKING

1шт.

4-1

31Q8-40520

SENSOR-PRESSURE

TRAVELING

1шт.

4-4

31Q8-40520

PRESSURE SENSOR

BOOM UP

1шт.

4-2

31Q8-40520

SENSOR-PRESSURE

WORKING

1шт.

4-3

31Q8-40520

SENSOR-PRESSURE

ARM/ BUCKET IN

1шт.

6

X520-110001

ELBOW-90,ORFS

STD

11шт.

4-4

31Q8-40520

SENSOR-PRESSURE

BOOM UP

1шт.

9

X530-110001

ELBOW-45,ORFS

8шт.

4-5

31Q8-40520

SENSOR-PRESSURE

SWING

1шт.

5

X500-110001

CONNECTOR-ORFS

4шт.

12

31E5-11110

ELBOW-90,ORFS

OPT, PATT VALVE

4шт.

6

X520-110001

ELBOW-90,ORFS

STD

10шт.

14

X850-515100

ELBOW-90,SWIVEL,ORFS

OPT, PATT VALVE

3шт.

6

X520-110001

ELBOW-90,ORFS

OPT, PATT VALVE

15шт.

9

X530-110001

ELBOW-45,ORFS

8шт.

10

X820-045151

TEE-R/TYPE,ORFS

5шт.

12

31E5-11110

ADAPTER

STD

2шт.

12

31E5-11110

ADAPTER

OPT, PATT VALVE

4шт.

14

X850-515100

ELBOW-90,SWIVEL,ORFS

STD

1шт.

14

X850-515100

ELBOW-90,SWIVEL,ORFS

OPT, PATT VALVE

3шт.

16

31N6-25110

ELBOW-90,ORFS,LONG

OPT, PATT VALVE

3шт.

17

31NB-20130

TEE-RUN TYPE/TEST

1шт.

19

X400-042023

HOSE ASSY-SYNFLEX,ORFS

#0002

1шт.

22

X400-042010

HOSE ASSY-SYNFLEX,ORFS

OPT, PATT VALVE

3шт.

23

X400-042012

HOSE ASSY-SYNFLEX,ORFS

OPT, PATT VALVE

1шт.

24

X400-042021

HOSE ASSY-SYNFLEX,ORFS

1шт.

25

X400-042025

HOSE ASSY-SYNFLEX,ORFS

#0001

2шт.

25

X400-042026

HOSE ASSY-SYNFLEX,ORFS

#0002

1шт.

28

X400-042029

HOSE ASSY-SYNFLEX,ORFS

#0001

2шт.

28

X400-042029

HOSE ASSY-SYNFLEX,ORFS

#0002

1шт.

29

X400-042032

HOSE ASSY-SYNFLEX,ORFS

#0001

1шт.

29

X400-042030

HOSE ASSY-SYNFLEX,ORFS

#0002

1шт.

35

X400-042028

HOSE ASSY-SYNFLEX,ORFS

#0002

1шт.

36

X420-042021

HOSE ASSY-ORFS 0X90

1шт.

38

X420-042031

HOSE ASSY-ORFS 0X90

#0001

1шт.

38

X420-042030

HOSE ASSY-ORFS 0X90

#0002

1шт.

39

X420-042024

HOSE ASSY-ORFS 0X90

#0002

1шт.

40

X420-042029

HOSE ASSY-ORFS 0X90

1шт.

41

31N6-22050

SELECTOR VLV-MULTIMODE

OPT, PATT VALVE

1шт.

42

S015-080806

BOLT-HEX

OPT, PATT VALVE

2шт.

43

S411-080006

WASHER-SPRING

OPT, PATT VALVE

2шт.

44

S109-080756

BOLT-SOCKET

2шт.

45

S411-100006

WASHER-SPRING

2шт.

46

31L7-10270

CLAMP-TUBE

1шт.

47

S038-102026

BOLT-W/WASHER

1шт.

A

S621-011001

O-RING

41шт.

F

S631-011004

O-RING

41шт.
