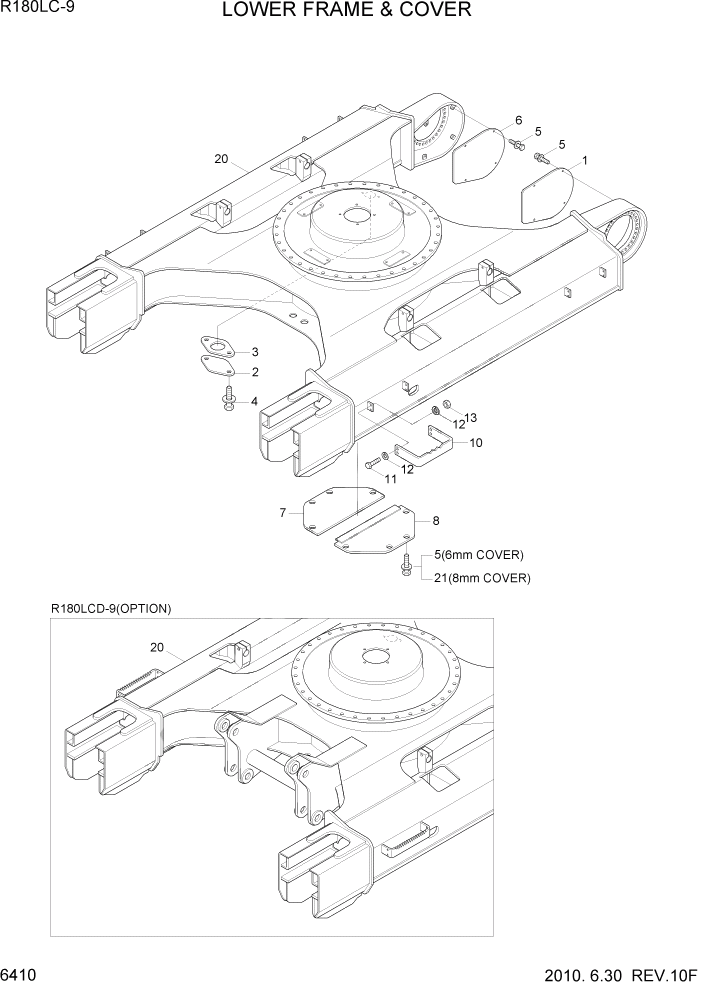

Запчасти Hyundai R180LC9 PAGE 6410 LOWER FRAME & COVER СТРУКТУРА

1

51N6-11112GG

COVER WA-T/MOTOR,LH

1шт.

2

41N6-10100

COVER

1шт.

3

41E9-1306

SEAL

1шт.

4

S037-102556

BOLT-W/WASHER

2шт.

5

S037-123556

BOLT-W/WASHER

STD, 6MM

8шт.

5

S037-124556

BOLT-W/WASHER

OPT, ADDITION

8шт.

6

51N6-11122GG

COVER WA-T/MOTOR,RH

1шт.

7

51N6-11211GG

COVER-BOTTOM(A)

STD, 6MM

1шт.

7

51N6-11230GG

COVER-BOTTOM(A)

OPT, 8MM

1шт.

8

51N6-11221GG

COVER-BOTTOM(B)

STD, 6MM

1шт.

8

51N6-11240GG

COVER-BOTTOM(B)

OPT, 8MM

1шт.

10

51N6-02600GG

BOARD-FOOT

500MM SHOE

4шт.

10

51N5-02640GG

BOARD-FOOT

600MM SHOE

4шт.

10

51N5-02650GG

BOARD-FOOT

700MM SHOE

4шт.

10

51N5-02660GG

FOOT BOARD ASSY

800MM SHOE

4шт.

11

S017-120506

BOLT-HEX

16шт.

12

S441-12000B

WASHER-HARDENED

32шт.

13

S205-12100B

NUT-HEX

16шт.

20

51Q5-12011

LOWER FRAME WA

R180LC-9 #0006

1шт.

20

51Q5-12012

LOWER FRAME WA

R180LC-9 #0007

1шт.

20

51Q5-14010

LOWER FRAME WA

R180LCD-9

1шт.

20

51Q5-15010

LOWER FRAME WA

R180NLC-9 #0006

1шт.

20

51Q5-15011

LOWER FRAME WA

R180NLC-9 #0007

1шт.

21

S037-124556

BOLT-W/WASHER

OPT, 8MM

8шт.
