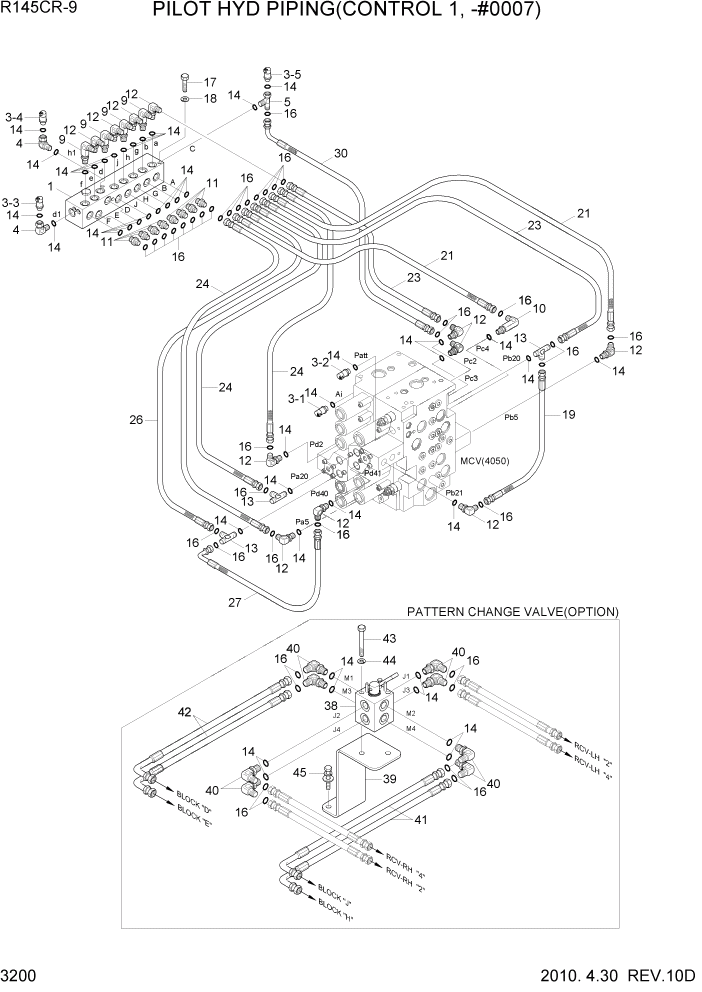

Запчасти Hyundai R145CR9 PAGE 3200 PILOT HYD PIPING(CONTROL 1, -#0007) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

1

31Q6-20171

BLOCK-TERMINAL

1шт.

3-1

31Q8-40520

SENSOR-PRESSURE

TRAVELING

1шт.

3-2

31Q8-40520

SENSOR-PRESSURE

WORKING

1шт.

3-3

31Q8-40520

SENSOR-PRESSURE

ARM/ BUCKET IN

1шт.

3-4

31Q8-40520

SENSOR-PRESSURE

BOOM UP

1шт.

3-5

31Q8-40520

SENSOR-PRESSURE

SWING

1шт.

4

31E5-11110

ADAPTER

2шт.

5

31NB-20130

TEE-RUN TYPE/TEST

1шт.

9

31N6-25110

ELBOW-90,ORFS,LONG

4шт.

10

31N6-25110

ELBOW-90,ORFS,LONG

1шт.

11

X500-110001

CONNECTOR-ORFS

STD

8шт.

11

X500-110001

CONNECTOR-ORFS

OPT, PATT VALVE

4шт.

12

X520-110001

ELBOW-90,ORFS

11шт.

13

X820-045151

TEE-R/TYPE,ORFS

2шт.

14

S631-011004

O-RING

35шт.

16

S621-011001

O-RING

28шт.

17

S015-080806

BOLT-HEX

2шт.

18

S411-080006

WASHER-SPRING

2шт.

19

P930-042019

HOSE ASSY-ORFS 0X90

1шт.

20

P910-042008

HOSE ASSY-ORFS 0X0

1шт.

21

P910-042011

HOSE ASSY-ORFS 0X0

2шт.

23

P910-042013

HOSE ASSY-ORFS 0X0

2шт.

24

P910-042020

HOSE ASSY-ORFS 0X0

3шт.

26

P910-042019

HOSE ASSY-ORFS 0X0

1шт.

27

P930-042012

HOSE ASSY-ORFS 0X90

1шт.

30

P930-042014

HOSE ASSY-ORFS 0X90

1шт.

38

31N6-22050

SELECTOR VLV-MULTIMODE

OPT, PATT VALVE

1шт.

39

31Q4-23180

BRACKET-PATTERN VALVE

OPT, PATT VALVE

1шт.

40

X520-110001

ELBOW-90,ORFS

OPT, PATT VALVE

8шт.

41

P930-042006

HOSE ASSY-ORFS 0X90

OPT, PATT VALVE

2шт.

42

P930-042008

HOSE ASSY-ORFS 0X90

OPT, PATT VALVE

2шт.

43

S015-080806

BOLT-HEX

OPT, PATT VALVE

2шт.

44

S411-080006

WASHER-SPRING

OPT, PATT VALVE

2шт.

45

S037-102026

BOLT-W/WASHER

OPT, PATT VALVE

2шт.
