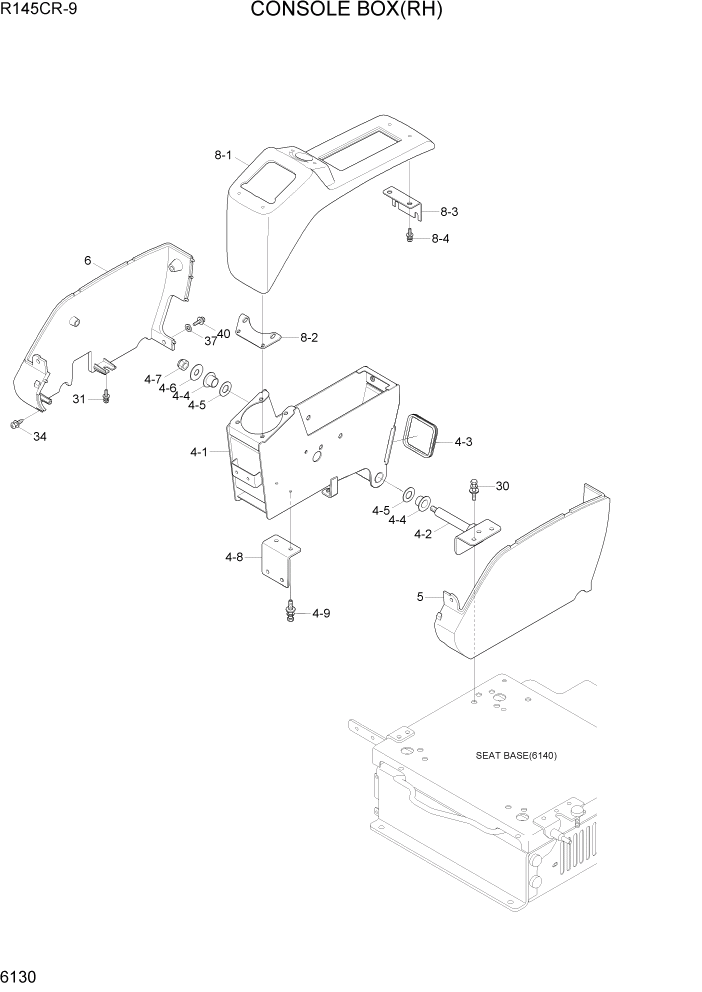

Запчасти Hyundai R145CR9 PAGE 6130 CONSOLE BOX(RH) СТРУКТУРА

4

75Q4-20190

CONSOLE FRAME ASSY-RH

1шт.

4-1

75Q4-20200

CONSOLE FRAME WA-RH

1шт.

4-2

71M9-22161

BRACKET WA-CONSOLE, RR

1шт.

4-3

71Q6-21420

GROMMET

1шт.

4-4

S731-020020

BUSHING-DU

2шт.

4-5

71Q6-22630

SHIM-CONSOLE

2шт.

4-6

71M9-22210

SHIM-ROUND

1шт.

4-7

S275-12000B

NUT-SELF LOCKING

1шт.

4-8

75Q4-20390

BRACKET-UNDER

1шт.

4-9

S035-081526

BOLT-W/WASHER

2шт.

5

71M9-21011

CONSOLE LOW-LH

1шт.

6

71M9-21021

CONSOLE LOW-RH

1шт.

8

75Q4-21070

CONSOLE UP ASSY-RH

1шт.

8-1

75Q4-20060

CONSOLE BOX UP-RH

1шт.

8-2

75Q4-22470

BRACKET

1шт.

8-3

75Q4-21160

BRACKET

1шт.

8-4

S002-06010B

SCREW-TRUS HEAD

4шт.

30

S035-082526

BOLT-W/WASHER

4шт.

31

S002-06015B

SCREW-TRUS HEAD

8шт.

34

S151-040156

SCREW-TAPPING

1шт.

37

S403-06500B

WASHER-PLAIN

2шт.

40

S002-06010B

SCREW-TRUS HEAD

2шт.
