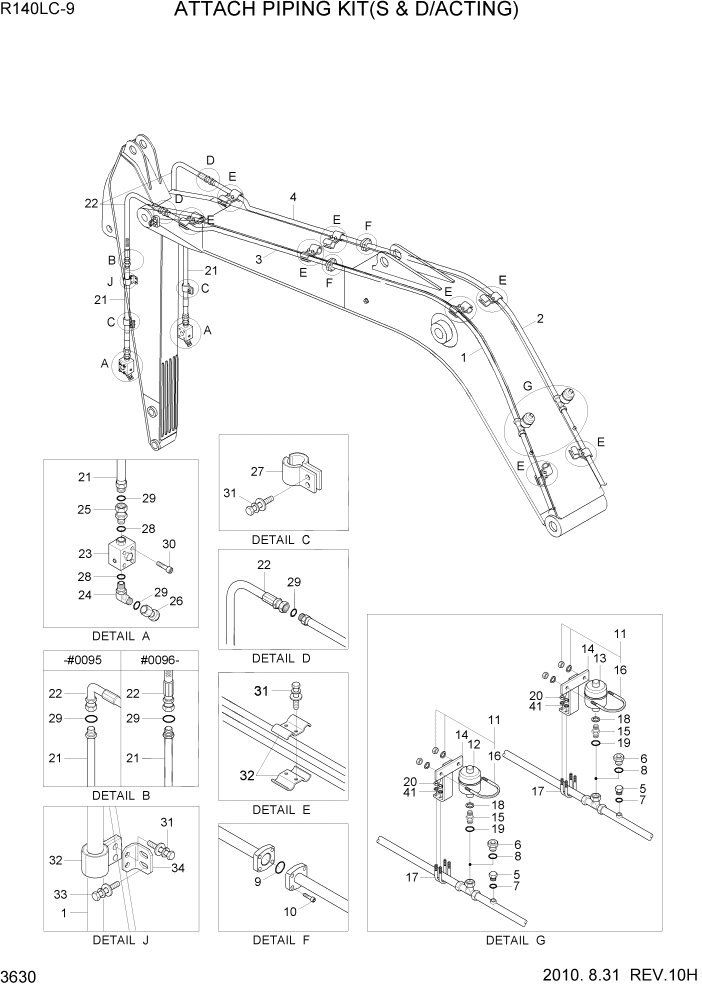

Запчасти Hyundai R140LC9 PAGE 3630 ATTACH PIPING KIT(S & D/ACTING) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

*-1

31Q4-90310

BOOM PIPING KIT

4.6M BM, STD

1шт.

*-1

31Q4-90320

BOOM PIPING KIT

4.1M BM, OPT

1шт.

1

31Q4-91310

PIPE ASSY

4.6M BM, STD

1шт.

1

31Q4-91350

PIPE ASSY

4.1M BM, OPT

1шт.

2

31Q4-91320

PIPE ASSY

4.6M BM, STD

1шт.

2

31Q4-91360

PIPE ASSY

4.1M BM, OPT

1шт.

3

31Q4-91330

PIPE ASSY

4.6M BM, STD

1шт.

3

31Q4-91370

PIPE ASSY

4.1M BM, OPT

1шт.

4

31Q4-91340

PIPE ASSY

4.6M BM, STD

1шт.

4

31Q4-91380

PIPE ASSY

4.1M BM, OPT

1шт.

5

31EK-11130

COUPLING-SCREW

2шт.

6

P220-110205

PLUG-HEX

2шт.

7

S631-011004

O-RING

2шт.

8

S631-024004

O-RING

2шт.

9

Y171-019004

O-RING

2шт.

10

S109-100506

BOLT-SOCKET

6шт.

11

31Q4-90500

ACCUMULATOR KIT

1шт.

12

31Q8-91670

ACCUMULATOR

1шт.

13

31Q8-91680

ACCUMULATOR

1шт.

14

32E6-92080

BRACKET-ACCUM

2шт.

15

31Q8-91690

CONNECTOR

2шт.

16

32E6-92060

U-BOLT

2шт.

17

S071-032730

U-BOLT

4шт.

18

31Q8-91700

SEAL

2шт.

19

S631-024004

O-RING

2шт.

20

S205-10100B

NUT-HEX

8шт.

41

S403-10200B

WASHER-PLAIN

8шт.

*-2

31Q4-90410

ARM PIPING KIT

2.5M AM, STD

1шт.

*-2

31Q4-90420

ARM PIPING KIT

1.9M AM

1шт.

*-2

31Q4-90430

ARM PIPING KIT

2.1M AM

1шт.

*-2

31Q4-90440

ARM PIPING KIT

3.0M AM

1шт.

21

31Q4-93460

PIPE ASSY

2.5M, 1.9M AM

2шт.

21

31Q4-93470

PIPE ASSY

2.1M AM

2шт.

21

31Q4-93480

PIPE ASSY

3.0M AM

2шт.

22

P934-126030

HOSE ASSY-ORFS 0X90

2шт.

23

31Q4-97010

STOP VALVE ASSY

2шт.

24

X530-110004

ELBOW-45,ORFS

4шт.

25

31Q4-93390

ADAPTER

2шт.

26

X710-100106

CAP-HYD,ORFS

2шт.

27

31Q4-50230

CLAMP ASSY-PIPE

2шт.

28

S631-024004

O-RING

4шт.

29

S621-018001

O-RING

8шт.

30

S109-100606

BOLT-SOCKET

8шт.

31

S037-123526

BOLT-W/WASHER

20шт.

32

31Q4-50300

CLAMP ASSY

16шт.

*-2

31Q4-90410

ARM PIPING KIT

2.5M AM, STD

1шт.

*-2

31Q4-90420

ARM PIPING KIT

1.9M AM

1шт.

*-2

31Q4-90430

ARM PIPING KIT

2.1M AM

1шт.

*-2

31Q4-90440

ARM PIPING KIT

3.0M AM

1шт.

21

31Q4-93460

PIPE ASSY

2.5M, 1.9M AM

2шт.

21

31Q4-93470

PIPE ASSY

2.1M AM

2шт.

21

31Q4-93480

PIPE ASSY

3.0M AM

2шт.

22

P935-126030

HOSE ASSY-ORFS,THD 0X0

1.9/2.1M AM

2шт.

22

P935-126033

HOSE ASSY-ORFS,THD 0X0

2.5/3.0M AM

2шт.

23

31Q4-97010

STOP VALVE ASSY

#0026

2шт.

23

31Q4-97011

STOP VALVE ASSY

#0027

2шт.

24

X530-110004

ELBOW-45,ORFS

4шт.

25

31Q4-93390

ADAPTER

2шт.

26

X710-100106

CAP-HYD,ORFS

2шт.

27

31Q4-50230

CLAMP ASSY-PIPE

2шт.

28

S631-024004

O-RING

4шт.

29

S621-018001

O-RING

8шт.

30

S109-100606

BOLT-SOCKET

8шт.

31

S037-123526

BOLT-W/WASHER

20шт.

31

S037-123526

BOLT-W/WASHER

3.0M AM

24шт.

32

31Q4-50300

CLAMP ASSY

16шт.

32

31Q4-50300

CLAMP ASSY

3.0M AM

20шт.

33

S037-122526

BOLT-W/WASHER

3.0M AM

8шт.

34

31Q4-93490

BRACKET

3.0M AM

2шт.
