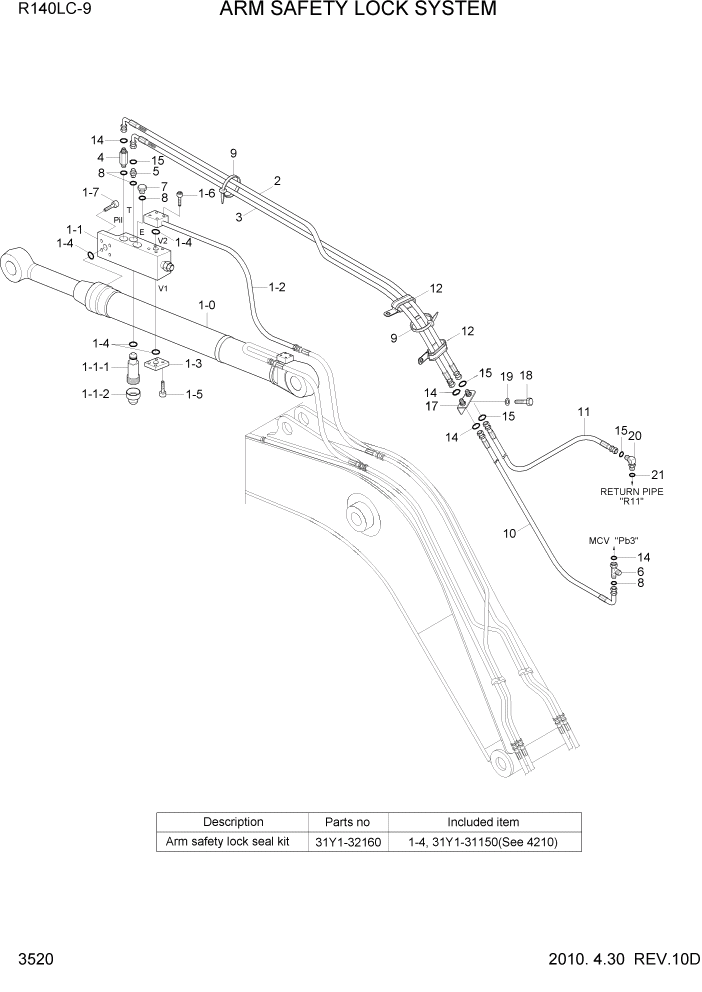

Запчасти Hyundai R140LC9 PAGE 3520 ARM SAFETY LOCK SYSTEM ГИДРАВЛИЧЕСКАЯ СИСТЕМА

1

31Q4-52130

ARM SAFETY LOCK CYLINDER

#0013

1шт.

1

@

ARM CYL SUB ASSY

NOT

1шт.

1

31Q4-52131

ARM SAFETY LOCK CYLINDER

#0014 - #0079

1шт.

1

31Q4-52132

ARM SAFETY LOCK CYLINDER

#0080

1шт.

1

@

ARM CYL SUB ASSY

NOT

1шт.

1-1-3

XKCH-00004

SEAL-KIT

NOT SHOWN

1шт.

1-1

31NA-90560

LOCK VALVE-ARM SAFETY

#0013

1шт.

1-3

P184-121112

FLANGE-HYD,PLUGING

1шт.

1-1

31Q4-55030

LOCK VALVE-ARM SAFETY

#0014

1шт.

1-1-1

XKCH-00001

VALVE-RELIEF

#0013

1шт.

1-1-2

DCP-001A

CAP

#0013

1шт.

1-1-3

XKCH-00004

SEAL-KIT

NOT SHOWN #0013

1шт.

1-2

31Y1-31670

PIPE ASSY-RV

1шт.

1-3

P184-121112

FLANGE-HYD,PLUGING

#0013

1шт.

K1-4

Y171-019004

O-RING

4шт.

1-5

S109-100356

BOLT-SOCKET

#0013

4шт.

1-6

S107-100456

BOLT-SOCKET

4шт.

1-7

S107-100506

BOLT-SOCKET

4шт.

2

P930-042083

HOSE ASSY-ORFS 0X90

4.6M BOOM, STD

1шт.

2

P930-042078

HOSE ASSY-ORFS 0X90

4.1M BOOM, OPT

1шт.

2

P930-042097

HOSE ASSY-ORFS 0X90

ADJUST BOOM #0046

1шт.

2

P930-042070

HOSE ASSY-ORFS 0X90

ADJUST BOOM #0047

1шт.

3

P930-062083

HOSE ASSY-ORFS 0X90

4.6M BOOM, STD

1шт.

3

P930-062078

HOSE ASSY-ORFS 0X90

4.1M BOOM, OPT

1шт.

3

P930-062097

HOSE ASSY-ORFS 0X90

ADJUST BOOM #0046

1шт.

3

P930-062070

HOSE ASSY-ORFS 0X90

ADJUST BOOM #0047

1шт.

4

X511-104513

CONNECTOR-LONG,ORFS

#0046

1шт.

4

X500-110001

CONNECTOR-ORFS

#0047

1шт.

5

X520-110011

ELBOW-90,ORFS

1шт.

6

X840-515151

TEE-R/TYPE,SWIVEL,ORFS

1шт.

7

P220-110102

PLUG-HEX

1шт.

8

S631-011004

O-RING

4шт.

9

S552-020102

CLAMP-BAND

10шт.

10

P930-042039

HOSE ASSY-ORFS 0X90

4.6, 4.1M BM

1шт.

10

P930-042048

HOSE ASSY-ORFS 0X90

ADJUST BOOM #0046

1шт.

10

P930-042069

HOSE ASSY-ORFS 0X90

ADJUST BOOM #0047

1шт.

11

P910-062042

HOSE ASSY-ORFS 0X0

4.6, 4.1M BM #0017

1шт.

11

P910-062035

HOSE ASSY-ORFS 0X0

4.6, 4.1M BM #0018

1шт.

11

P910-062072

HOSE ASSY-ORFS 0X0

ADJUST BOOM

1шт.

12

31L7-10200

CLAMP-TUBE

2шт.

14

S621-011001

O-RING

4шт.

15

S621-012001

O-RING

4шт.

17

31N6-90660

TERMIANL-SAFETY VLV

1шт.

18

S017-16075D

BOLT-HEX

1шт.

19

S411-160006

WASHER-SPRING

1шт.

20

X520-110002

ELBOW-90,ORFS

1шт.

21

S631-014004

O-RING

1шт.

K

31Y1-32160

SEAL KIT

SEE ILLUST

1шт.

K

31Y1-32160

SEAL KIT

SEE ILLUST

1шт.
