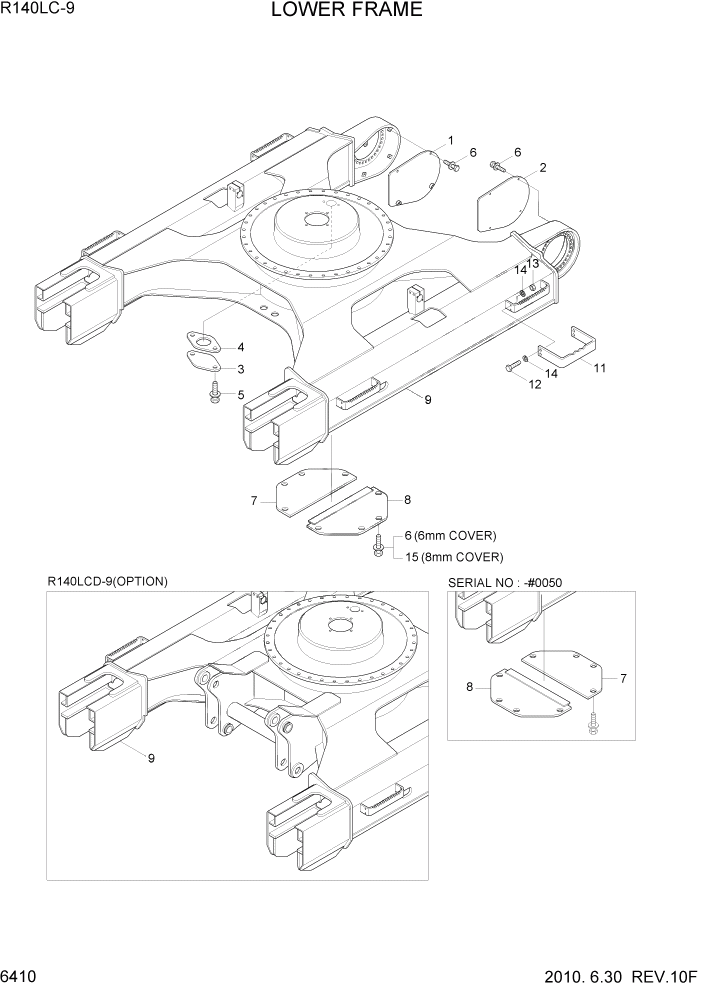

Запчасти Hyundai R140LC9 PAGE 6410 LOWER FRAME & COVER СТРУКТУРА

1

53N4-11120GG

COVER PLATE-T/M,RH

1шт.

2

53N4-11110GG

COVER PLATE-T/M,LH

1шт.

3

41N6-10100

COVER

1шт.

4

41E9-1306

SEAL

1шт.

5

S037-102566

BOLT-W/WASHER

2шт.

6

S037-123556

BOLT-W/WASHER

STD, 6MM

16шт.

6

S037-124556

BOLT-W/WASHER

OPT, ADDITION

8шт.

7

51N6-11211GG

COVER-BOTTOM(A)

STD, 6MM

1шт.

7

51N6-11230GG

COVER-BOTTOM(A)

OPT, 8MM

1шт.

8

51N6-11221GG

COVER-BOTTOM(B)

STD, 6MM

1шт.

8

51N6-11240GG

COVER-BOTTOM(B)

OPT, 8MM

1шт.

9

51Q4-02011

LOWER FRAME WA

STD

1шт.

9

51Q4-04011

LOWER FRAME WA

R140LCD-9

1шт.

9

51Q4-05010

LOWER FRAME WA

R1400LC-9U

1шт.

11

51N6-02640GG

BOARD-FOOT

700MM SHOE

4шт.

11

51N6-02650GG

BOARD-FOOT

800MM SHOE

4шт.

11

51N4-21040GG

BOARD-FOOT

900MM SHOE

4шт.

12

S017-120506

BOLT-HEX

16шт.

12

S017-16055D

BOLT-HEX

900MM SHOE

16шт.

13

S441-12000B

WASHER-HARDENED

32шт.

13

S441-160006

WASHER-HARDENED

900MM SHOE

32шт.

14

S205-12100B

NUT-HEX

16шт.

14

S205-16100B

NUT-HEX

900MM SHOE

16шт.

15

S037-124556

BOLT-W/WASHER

OPT, 8MM

8шт.
