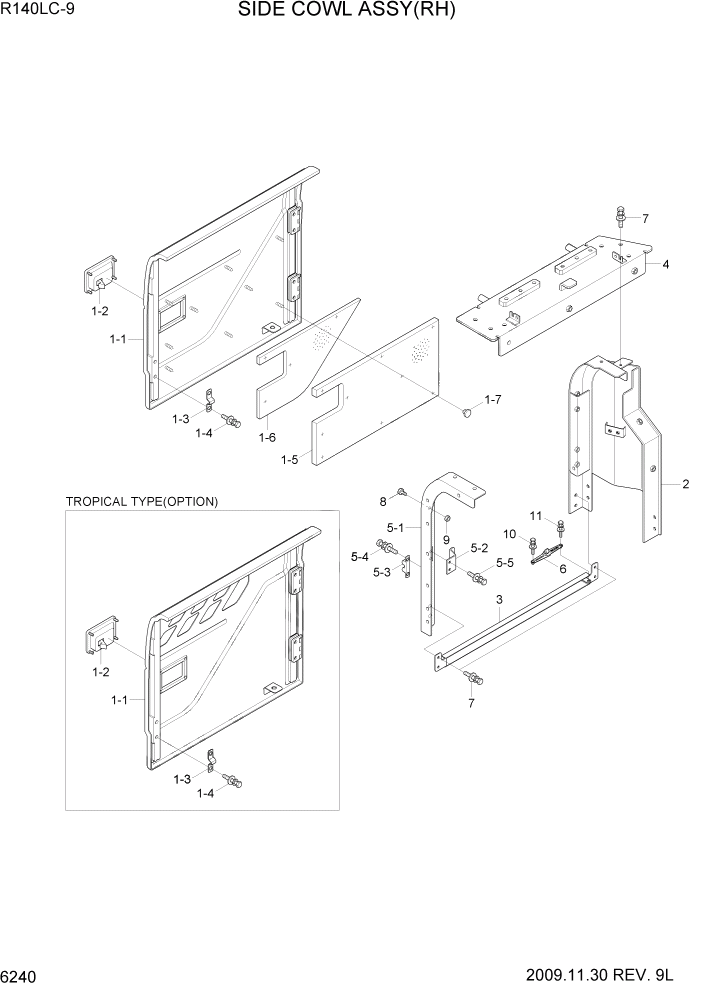

Запчасти Hyundai R140LC9 PAGE 6240 SIDE COWL ASSY(RH) СТРУКТУРА

*

72Q4-53001

SIDE COWL ASSY-RH

STD #0017

1шт.

*

72Q4-53002

SIDE COWL ASSY-RH

STD #0018

1шт.

*

72Q4-53001

SIDE COWL ASSY-RH

#0017

1шт.

*

72Q4-63000

SIDE COWL ASSY-RH

OPT, TROPICAL #0048

1шт.

1

71Q4-53101

SIDE COVER ASSY-RH

STD #0017

1шт.

1

71Q4-53102

SIDE COVER ASSY-RH

STD #0018

1шт.

1

71Q4-53102

SIDE COVER ASSY-RH

#0018

1шт.

1

71Q4-63100

SIDE COVER ASSY-RH

OPT, TROPICAL #0048

1шт.

1-1

71Q4-53111

SIDE COVER WA-RH

STD

1шт.

1-1

71Q4-63110

SIDE COVER WA-RH

OPT, TROPICAL #0048

1шт.

1-2

71Q6-52190

LATCH ASSY

1шт.

1-3

71Q6-53911

STOPPER-A

1шт.

1-4

S035-082026

BOLT-W/WASHER

2шт.

1-5

71Q4-53262

SPONGE

STD #0017

1шт.

1-5

71Q4-53263

SPONGE

STD #0018

1шт.

1-6

71Q4-53271

SPONGE

STD

1шт.

1-7

71EM-51580

CAP-STUD BOLT

STD

9шт.

2

72Q4-53201

SUPPORT WA-RH,REAR

1шт.

3

71Q4-53301

SUPPORT-RH, BOTTOM

1шт.

4

71Q4-53401

HOOD WA-PUMP

1шт.

5

71Q5-53500

SUPPORT ASSY-RH,FR

1шт.

5-1

71Q5-53510

SUPPORT WA-RH

1шт.

5-2

71Q4-52490

PLATE-LOCK

1шт.

5-3

71Q6-53951

STOPPER-B

1шт.

5-4

71Q6-50025

BOLT-W/WASHER

2шт.

5-5

S035-082056

BOLT-W/WASHER

2шт.

6

71Q6-53180

STAY ASSY-RH

1шт.

7

71Q6-50025

BOLT-W/WASHER

12шт.

8

71EH-13150

RUBBER-BUMPER

4шт.

9

S203-101006

NUT-HEX

4шт.

10

S037-102556

BOLT-W/WASHER

1шт.

11

S037-103556

BOLT-W/WASHER

1шт.
