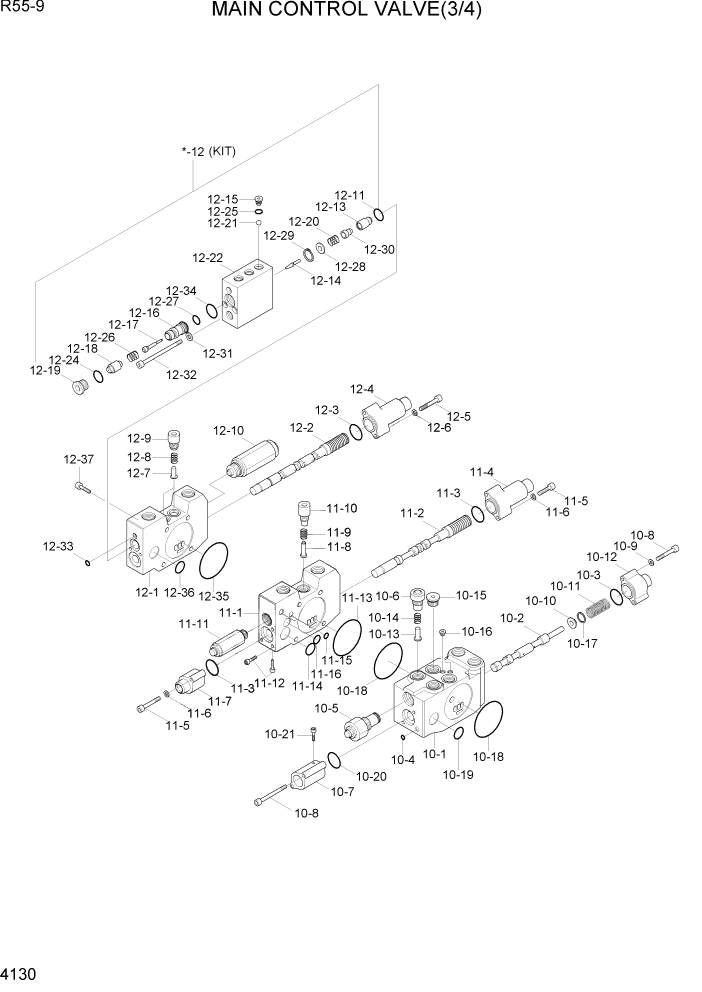

Запчасти Hyundai R55-9 PAGE 4130 MAIN CONTROL VALVE(3/4) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

@

MAIN CONTROL VALVE

NOT

1шт.

10

XKBF-01351

INLET ASSY-(P1,P2)

P1, P2

1шт.

10-1

XKBF-01382

BLOCK-INLET

1шт.

10-2

XKBF-01383

SPOOL-TS

TS

1шт.

10-3

XKBF-00619

O-RING

1шт.

10-4

XKBF-00850

O-RING(1AP5)

1шт.

10-5

XKBF-01384

MAIN RELIEF VALVE

1шт.

10-6

XKBF-00742

PLUG3 ASSY(PF3/8)

2шт.

10-7

XKBF-01385

CAP ASSY-TS CHECK

1шт.

10-8

XKBF-00950

BOLT-SOCKET HEAD

5шт.

N10-9

XKBF-00625

WASHER-PLAIN

NOT

2шт.

10-1

XKBF-00740

SPRING SEAT

1шт.

10-11

XKBF-00739

SPRING-PILOT

1шт.

10-12

XKBF-00738

PILOT CAP-B2

1шт.

10-13

XKBF-00737

POPPET-CHECK

2шт.

10-14

XKBF-00736

SPRING-CHECK

2шт.

10-15

XKBF-00735

PLUG ASSY

2шт.

10-16

XKBF-00734

PLUG ASSY-TS

2шт.

10-17

XKBF-00837

SPRING SHIM

2шт.

10-18

XKBF-00582

O-RING

2шт.

10-19

XKBF-01364

O-RING

2шт.

10-2

XKBF-01386

O-RING

1шт.

10-21

XKBF-00728

PLUG

4шт.

11

XKBF-01352

TRAVEL ASSY-RIGHT

1шт.

11-1

XKBF-01370

BLOCK-TRAVEL RIGHT

1шт.

11-2

XKBF-01371

SPOOL ASSY

TRAVEL-RH

1шт.

11-3

XKBF-00619

O-RING

2шт.

11-4

XKBF-00828

PILOT CAP A

1шт.

11-5

XKBF-00950

BOLT-SOCKET HEAD

4шт.

N11-6

XKBF-00625

WASHER-PLAIN

NOT

4шт.

11-7

XKBF-00829

PILOT CAP B1

1шт.

11-8

XKBF-00715

POPPET-CHECK

1шт.

11-9

XKBF-00581

SPRING-CHECK

1шт.

11-1

XKBF-00714

PLUG 1 ASSY

1шт.

11-11

XKBF-00721

OVERLOAD R/V

1шт.

11-12

XKBF-00728

PLUG

2шт.

11-13

XKBF-00582

O-RING

1шт.

11-14

XKBF-01364

O-RING

1шт.

11-15

XKBF-00612

O-RING

1шт.

11-16

XKBF-00940

O-RING

1шт.

12

XKBF-01353

BOOM 1 ASSY

1шт.

12-1

XKBF-01374

BLOCK-BOOM 1

1шт.

12-2

XKBF-01375

SPOOL ASSY

BOOM 1

1шт.

12-3

XKBF-00619

O-RING

1шт.

12-4

XKBF-00828

PILOT CAP A

1шт.

12-5

XKBF-00950

BOLT-SOCKET HEAD

2шт.

N12-6

XKBF-00625

WASHER-PLAIN

NOT

2шт.

12-7

XKBF-00704

POPPET-CHECK

2шт.

12-8

XKBF-00703

SPRING-CHECK

2шт.

12-9

XKBF-00702

PLUG1 ASSY

2шт.

12-1

XKBF-00721

OVERLOAD R/V

1шт.

*-12A

XKBF-00626

HOLDING VALVE KIT-A

1шт.

N12-11

XKBF-00618

O-RING

NOT

1шт.

N12-15

XKBF-00628

PLUG

NOT

1шт.

N12-16

XKBF-00616

GUIDE-PISTON

NOT

1шт.

N12-17

XKBF-00206

PISTON

NOT

1шт.

N12-18

XKBF-00207

PISTON-PILOT

NOT

1шт.

N12-19

XKBF-00614

PLUG

NOT

1шт.

N12-21

XKBF-00209

BALL-STEEL

NOT

1шт.

N12-22

XKBF-00210

COVER-PILOT

NOT

1шт.

N12-24

XKBF-00081

O-RING

NOT

1шт.

N12-25

XKBF-00613

O-RING

NOT

1шт.

N12-26

XKBF-00617

SPRING-PILOT

NOT

1шт.

N12-27

XKBF-00615

O-RING

NOT

1шт.

N12-31

XKBF-00625

WASHER-PLAIN

NOT

1шт.

N12-32

XKBF-00624

BOLT-WRENCH

NOT

3шт.

N12-33

XKBF-00612

O-RING

NOT

1шт.

*-12B

XKBF-00627

HOLDING VALVE KIT-B

1шт.

N12-13

XKBF-00202

POPPET ASSY-HOLDING

NOT

1шт.

N12-14

XKBF-00203

POPPET-PILOT

NOT

1шт.

N12-20

XKBF-00208

SPRING-H/D

NOT

1шт.

N12-28

XKBF-00622

SEAT-SPRING

NOT

1шт.

N12-29

XKBF-00623

RING-SNAP

NOT

1шт.

N12-30

XKBF-00620

RESTRICTOR-H/D

NOT

1шт.

12-34

XKBF-00582

O-RING

1шт.

12-35

XKBF-00612

O-RING

2шт.

12-36

XKBF-01364

O-RING

1шт.

12-37

XKBF-00950

BOLT-SOCKET HEAD

1шт.

N

@

NOT SUPPLIED PARTS

NOT

ARшт.
