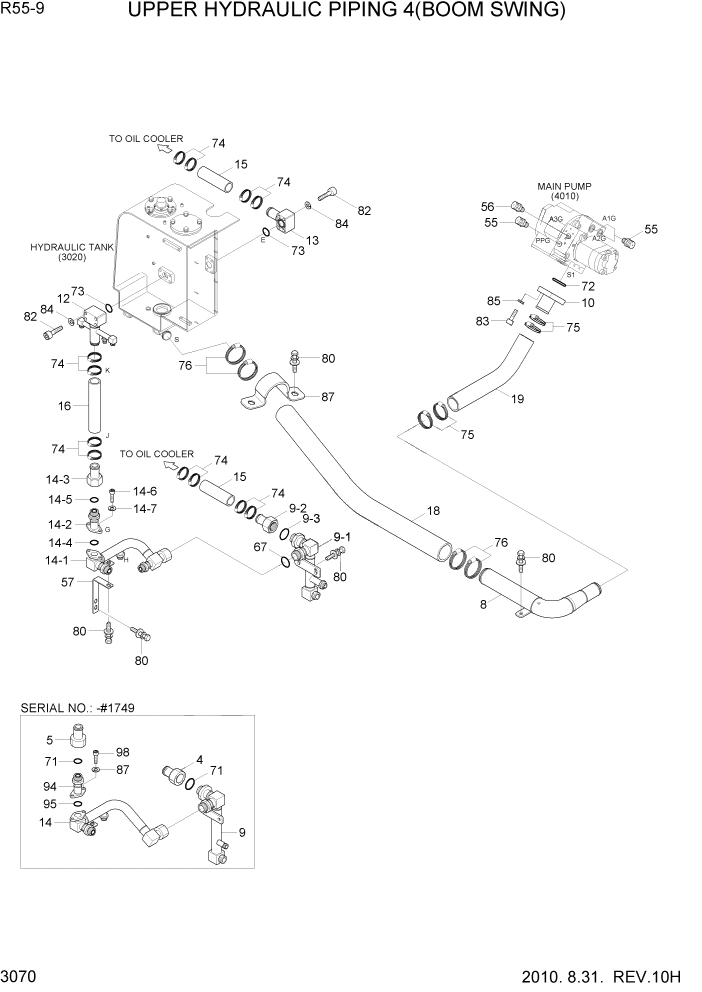

Запчасти Hyundai R55-9 PAGE 3070 UPPER HYDRAULIC PIPING 4(BOOM SWING) ГИДРАВЛИЧЕСКАЯ СИСТЕМА

4

31M5-52121

VALVE-CHECK

1.5K #1749

1шт.

5

31M5-52111

VALVE-CHECK

3.0K #1749

1шт.

8

31M8-10240GY

PIPE WA-SUCTION

1шт.

9

31M9-10261

PIPE ASSY

#1749

1шт.

9

31M9-12230

RETURN PIPE SUB ASSY

#1750

1шт.

9-1

31M9-10261

PIPE ASSY

#1750

1шт.

9-2

31M5-52121

VALVE-CHECK

#1750

1шт.

9-3

S631-029004

O-RING

#1750

1шт.

10

31M8-10760GY

PIPE ASSY

1шт.

12

31M8-10284GY

PIPE ASSY

1шт.

13

31M8-10460GY

PIPE ASSY

1шт.

14

31M8-10473GY

VALVE-CHECK

#1749

1шт.

14

31M9-12210

RETURN PIPE SUB ASSY

#1750

1шт.

14-1

31M8-10473GY

VALVE-CHECK

#1750

1шт.

14-2

31M8-10780GY

FLANGE WA

#1750

1шт.

14-3

31M5-52111

VALVE-CHECK

#1750

1шт.

14-4

S631-029004

O-RING

#1750

1шт.

14-5

Y171-024004

O-RING

#1750

1шт.

14-6

S109-100406

BOLT-SOCKET

#1750

1шт.

14-7

S411-100006

WASHER-SPRING

#1750

2шт.

15

P760-052015

HOSE-RUBBER

1шт.

16

P760-052016

HOSE-RUBBER

1шт.

18

31M9-10230

HOSE-SUCTION

1шт.

19

31M8-10310

HOSE-SUCTION

1шт.

55

31EK-11130

COUPLING-SCREW

3шт.

56

31M6-50860

COUPLING-SCREW

1шт.

57

31M8-10661GY

BRACKET-PIPE

1шт.

67

S621-021001

O-RING

1шт.

71

S631-029004

O-RING

#1749

2шт.

72

S631-045001

O-RING

1шт.

73

S632-035001

O-RING

2шт.

74

S572-460006

CLAMP-HOSE,WIRE TYPE

12шт.

75

S572-630006

CLAMP-HOSE,WIRE TYPE

4шт.

76

S572-750006

CLAMP-HOSE,WIRE TYPE

4шт.

80

S037-102526

BOLT-W/WASHER

9шт.

82

S109-100606

BOLT-SOCKET

8шт.

83

S109-120356

BOLT-SOCKET

4шт.

84

S411-100006

WASHER-SPRING

#1749

10шт.

84

S411-100006

WASHER-SPRING

#1750

8шт.

85

S411-120006

WASHER-SPRING

4шт.

87

31M9-10910

CLAMP-HOSE

1шт.

91

31M8-10780GY

FLANGE WA

#1749

1шт.

92

Y171-024004

O-RING

#1749

1шт.

95

S109-100356

BOLT-SOCKET

#1749

2шт.
