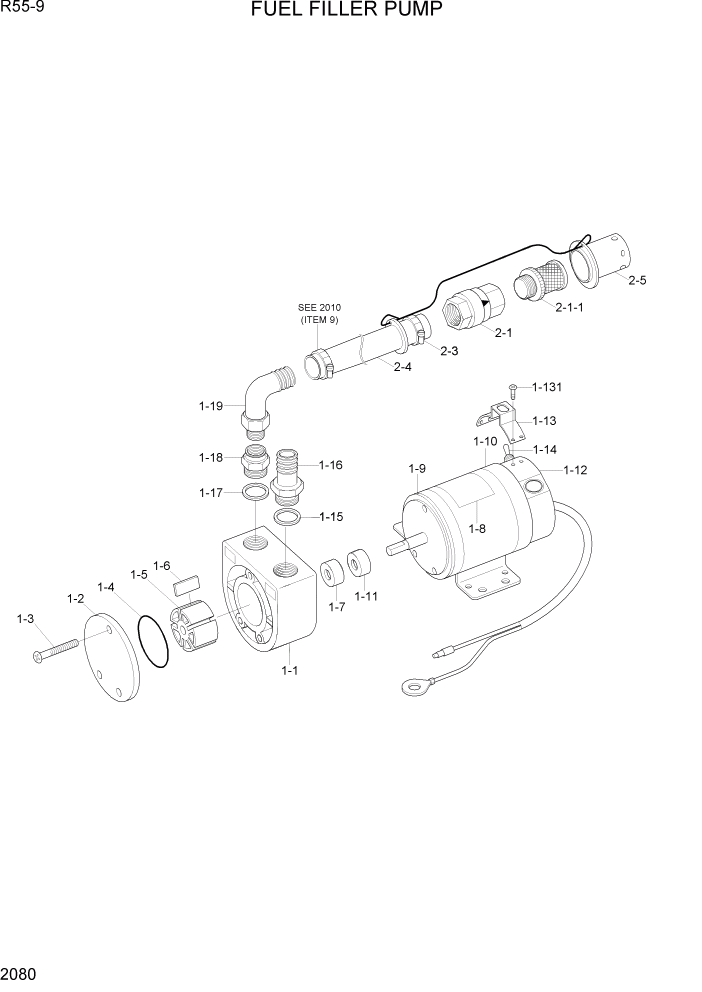

Запчасти Hyundai R55-9 PAGE 2080 FUEL FILLER PUMP ЭЛЕКТРИЧЕСКАЯ СИСТЕМА

*

@

FUEL FILLER PUMP KIT

NOT

1шт.

1

21M8-50062

FUEL FILLER PUMP ASSY

1шт.

1-1

@

BODY

NOT

1шт.

1-2

@

COVER

NOT

1шт.

1-3

@

SCREW

NOT

1шт.

K1-4

21EM-45050

O-RING

1шт.

K1-5

21EM-45060

ROTOR

1шт.

K1-6

21EM-45070

PLATE-VANE

5шт.

K1-7

21EM-45080

SEAL-OIL

1шт.

1-8

21M8-45091

DECAL

1шт.

1-9

@

FRONT COVER

NOT

1шт.

1-1

@

REAR COVER

NOT

1шт.

1-11

@

BEARING

NOT

1шт.

1-12

21EM-45101

BOX-SWITCH

1шт.

1-13

21EM-45300

COVER-SWITCH

1шт.

1-131

S161-050166

SCREW-CROSS R/ROUND

4шт.

1-14

31E2-08302A

TOGGEL SWITCH

1шт.

1-15

21EM-45500

WASHER-AL

3шт.

1-16

33G8-12001

FITTING

3шт.

1-17

21EM-45700

FITTING

1шт.

1-18

21EM-45800

NUT-ELBOW

1шт.

1-19

21EM-45900

ELBOW

1шт.

2

21M6-55030

HOSE ASSY

1шт.

2-1

21M5-50260

VALVE-CHECK

1шт.

2-1-1

2P1-SP-01

STRAINER ASSY

1шт.

2-3

S520-027000

CLAMP-HOSE

1шт.

2-4

21M5-51143

HOSE-INLET

1шт.

2-5

21EM-46300

CAP ASSY

1шт.

K

21EM-46201

SERVICE KIT

1шт.
