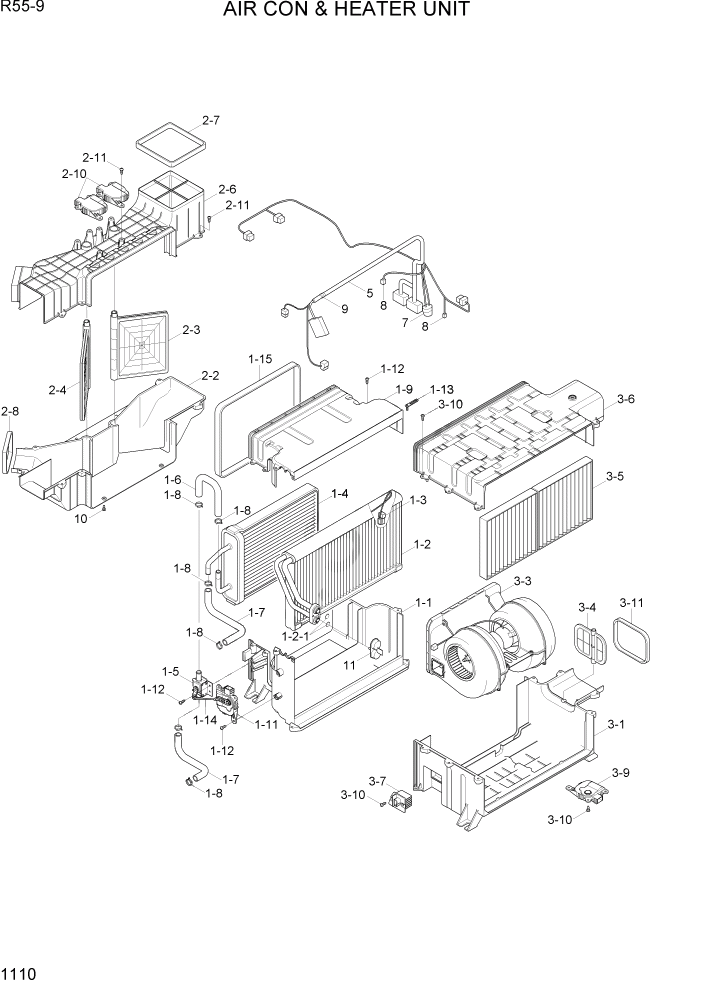

Запчасти Hyundai R55-9 PAGE 1110 AIR CON & HEATER UNIT СИСТЕМА ДВИГАТЕЛЯ

*

11M9-90013

HVAC UNIT(AIRCON & HEAT)

1шт.

1

XKAN-00041

HEATER & EVAP UNIT

SEE 1100

1шт.

1-1

XKAN-00001

CASE-HTR EVAP,LOWER

1шт.

1-2

XKAN-00002

EVAP CORE ASSY

1шт.

1-2-1

XKAN-00003

O-RING

2шт.

1-3

XKAN-00004

THERMISTOR

1шт.

1-4

XKAN-00005

HEATER CORE ASSY

1шт.

1-5

XKAN-00006

VALVE ASSY-WATER

1шт.

1-6

XKAN-00007

HOSE-WATER

1шт.

1-7

XKAN-00008

HOSE-WATER IN OUT

2шт.

1-8

XKAN-00049

CLAMP-WATER HOSE

6шт.

1-9

XKAN-00010

CASE-HTR & EVAP,UPPER

1шт.

1-11

XKAN-00011

M/ACT ASSY-W/VALVE

1шт.

1-12

XKAN-00012

SCREW- HIGH LWR

13шт.

1-13

XKAN-00013

HOLDER-WIRE

1шт.

1-14

XKAN-00014

TEMP-ROD

1шт.

1-15

XKAN-00015

SEAL-EVAP & HTR HVAC

1шт.

2

XKAN-00016

DISTRIBUTOR UNIT-12V

1шт.

2-2

XKAN-00017

DISTRIBUTOR LOWER

1шт.

N2-3

XKAN-00018

DOOR ASSY-VENT

NOT

1шт.

N2-4

XKAN-00019

DOOR ASSY-FOOT & DEF

NOT

1шт.

2-6

XKAN-00020

DISTRIBUTOR-UPPER

1шт.

N2-7

XKAN-00021

SEAL-VENT OUTLET

NOT

1шт.

N2-8

XKAN-00022

SEAL-DEF OUTLET

NOT

1шт.

2-1

XKAN-00023

M/ACT ASSY-W/VALVE

2шт.

2-11

XKAN-00012

SCREW- HIGH LWR

15шт.

3

XKAN-00025

BLW & INTAKE UNIT-12V

1шт.

3-1

XKAN-00026

CASE-INTAKE, LOWER

1шт.

3-3

XKAN-00027

BLOWER UNIT -12V

1шт.

3-3-1

XKAN-00028

FAN & MOTOR ASSY-12V

NOT SHOWN

1шт.

3-4

XKAN-00029

DOOR ASSY-INTAKE

1шт.

3-5

XKAN-00030

FILTER-AIRCON, REC

2шт.

3-6

XKAN-00031

CASE-INTAKE,UPPER

1шт.

3-7

XKAN-00050

FET ASSY

1шт.

3-9

XKAN-00039

M/ACT ASSY-MODE(INT)

1шт.

3-1

XKAN-00012

SCREW- HIGH LWR

12шт.

3-11

XKAN-00033

SEAL-INTAKE FRESH

1шт.

5

XKAN-00034

WIRING ASSY-FATC

1шт.

7

XKAN-00035

RELAY

1шт.

8

XKAN-00040

SENSOR

1шт.

9

XKAN-00051

CLAMP-CABLE

1шт.

10

XKAN-00012

SCREW- HIGH LWR

8шт.

11

XKAN-00037

CAP-EVAP

1шт.
