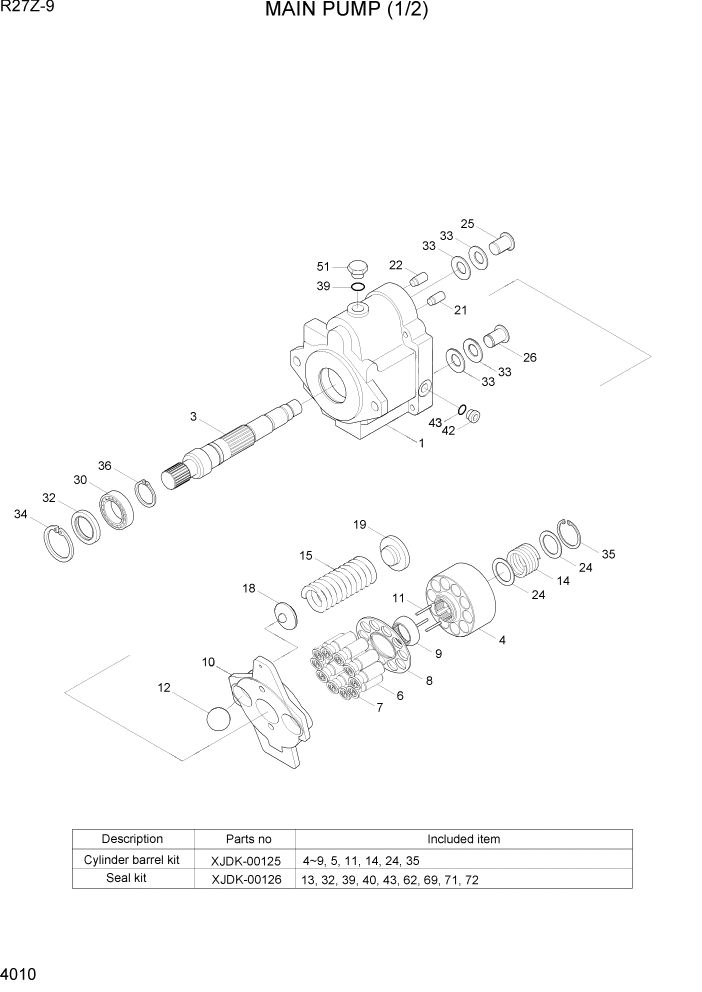

Запчасти Hyundai R27Z-9 PAGE 4010 MAIN PUMP (1/2) ГИДРАВЛИЧЕСКИЕ КОМПОНЕНТЫ

*

31MK-10010

MAIN PUMP

SEE 4020

1шт.

N1

@

BODY S

NOT

1шт.

N3

@

SHAFT

NOT

1шт.

S4

@

BARREL-CYLINDER

NOT

1шт.

S6

@

PISTON

NOT

10шт.

S7

@

SHOE

NOT

10шт.

S8

@

HOLDER-SHOE

NOT

1шт.

S9

@

HOLDER-BARREL

NOT

1шт.

N10

@

PLATE-SWASH

NOT

1шт.

S11

@

NEEDLE

NOT

3шт.

N12

@

BALL

NOT

2шт.

S14

@

SPRING C

NOT

1шт.

N15

@

SPRING T1

NOT

1шт.

N18

@

HOLDER-SPRING

NOT

1шт.

N19

@

GUIDE-SPRING

NOT

1шт.

N20

@

PIN

NOT

1шт.

N21

@

ROD G

NOT

1шт.

N22

@

ROD C

NOT

1шт.

S24

@

RETAINER

NOT

2шт.

N25

@

PIN-A, STOPPER

NOT

1шт.

N26

@

PIN-B, STOPPER

NOT

1шт.

N30

@

BEARING-BALL

NOT

1шт.

K32

@

OIL SEAL

NOT

1шт.

N33

@

SPRING-DISH

NOT

4шт.

N34

@

RING-SNAP

NOT

1шт.

S35

@

RING-SNAP

NOT

1шт.

N36

@

RING-SNAP

NOT

1шт.

K39

@

O-RING

NOT

1шт.

N42

@

PLUG

NOT

1шт.

K43

@

O-RING

NOT

1шт.

N51

@

PLUG

NOT

1шт.

S1

XJDK-00125

CYLINDER BARREL KIT

SEE ILLUST

1шт.

K1

XJDK-00126

SEAL KIT

SEE ILLUST

1шт.

N

@

NOT INDIVIDUALLY SUPPLIED

NOT

ARшт.
