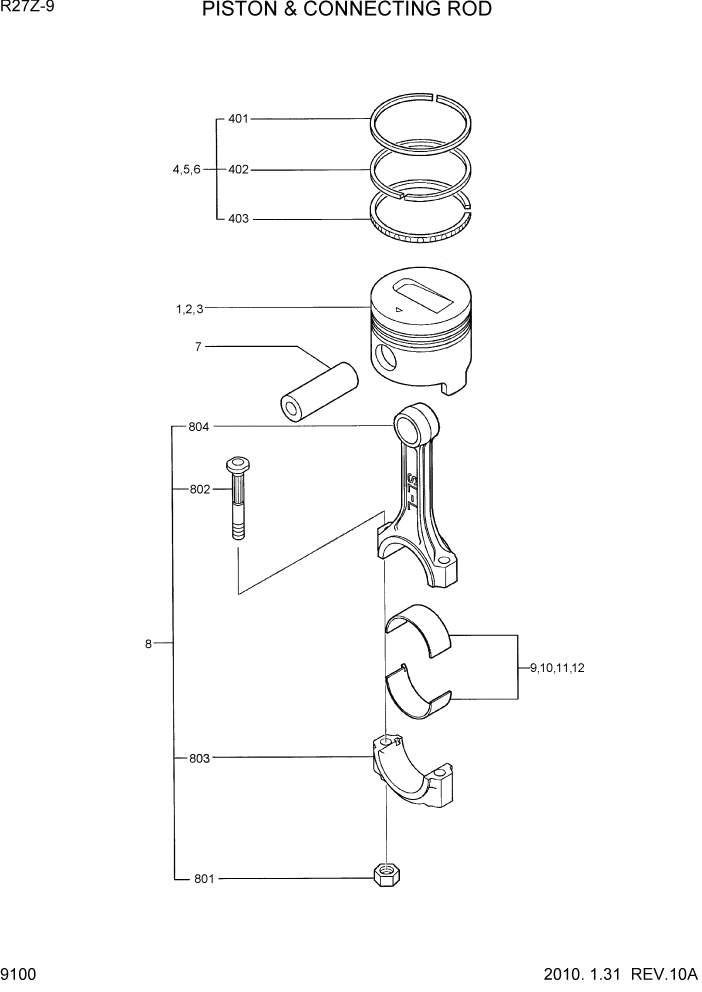

Запчасти Hyundai R27Z-9 PAGE 9100 PISTON & CONNECTING ROD ДВИГАТЕЛЬ БАЗА

1

XJAF-02900

PISTON -STD

STD

3шт.

2

XJAF-02901

PISTON

0.25MM O/S

3шт.

3

XJAF-02902

PISTON

0.50MM O/S

3шт.

4

XJAF-02903

RING SET-PISTON-STD

STD

3шт.

5

XJAF-02173

RING SET-PISTON

0.25MM O/S

3шт.

6

XJAF-02174

RING SET-PISTON

0.50MM O/S

3шт.

N401

@

RING-PISTON NO.1

NOT

3шт.

N402

@

RING-PISTON NO.2

NOT

3шт.

N403

@

RING ASSY-OIL

NOT

3шт.

5

XJAF-02904

RING SET-PISTON

0.25MM O/S

3шт.

6

XJAF-02905

RING SET-PISTON

0.50MM O/S

3шт.

7

XJAF-01656

PIN-PISTON

3шт.

8

XJAF-01717

ROD ASSY-CONNECTION

3шт.

801

XJAF-01942

NUT-CONNECTING ROD

6шт.

802

XJAF-01949

BOLT-CONNECTING ROD

6шт.

N803

@

CAP-CONNECTION ROD

NOT

3шт.

N804

@

CONNECTION ROD

NOT

3шт.

9

XJAF-02906

BEARING SET-CON-ROD

STD

3шт.

10

XJAF-02907

BEARING SET-CON-ROD

0.25MM U/S

3шт.

11

XJAF-02908

BEARING SET-CON-ROD

0.50MM U/S

3шт.

12

XJAF-02909

BEARING SET-CON-ROD

0.75MM U/S

3шт.

N

@

NOT SUPPLIED PARTS

NOT

ARшт.
