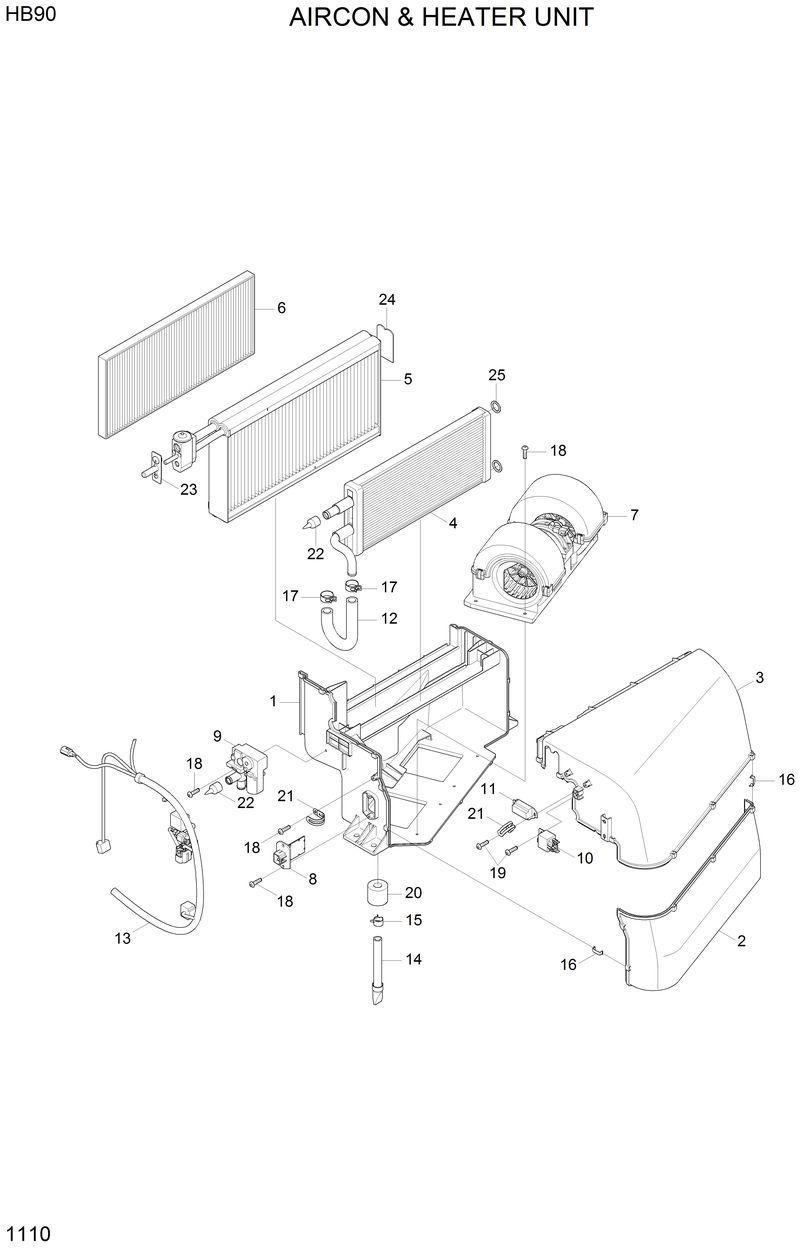

Запчасти Hyundai HB90 AIRCON & HEATER UNIT

*

11U2-90041

11U2-90041-Aircon & Heater Unit

1

C02136D0

C02136D0-. Lower Case

10

C92048G0

C92048G0-. Relay

11

C91143G0

C91143G0-. Thermocon Assy

12

D74238F0

D74238F0-. Rubber Hose-Water

13

C95110G0

C95110G0-. Wire Harness Assy

14

11U2-90190

11U2-90190-. Hose-Drain

15

11U2-90360

11U2-90360-. Clamp-Hose

16

G30006K2

G30006K2-. Case Clip

17

G33100C0

G33100C0-. Hose Clip

19

@

@-. Screw-Tapping

19

@

@-. Screw-Tapping

2

C02137D0

C02137D0-. Upper Case-Rh

20

G50193F0

G50193F0-. Packing-Drain

21

G30198C0

G30198C0-. Harness Clip

22

@

@-. Cap-Heater

23

@

@-. Cap-Eva

24

F10245A0

F10245A0-. Evp Plate

25

G59109F0

G59109F0-. Grommet-H/T Core

3

C02138D0

C02138D0-. Upper Case-Lh

4

B00087A0

B00087A0-. Heater Core Assy

5

B31107A0

B31107A0-. Evap Core Assy

6

11U2-90180

11U2-90180-. Filter-Rec Air

7

M7010

M7010-. Blower Uint

8

C90133G0

C90133G0-. Resistor Assy

9

C30104E0

C30104E0-. Water Valve Assy
