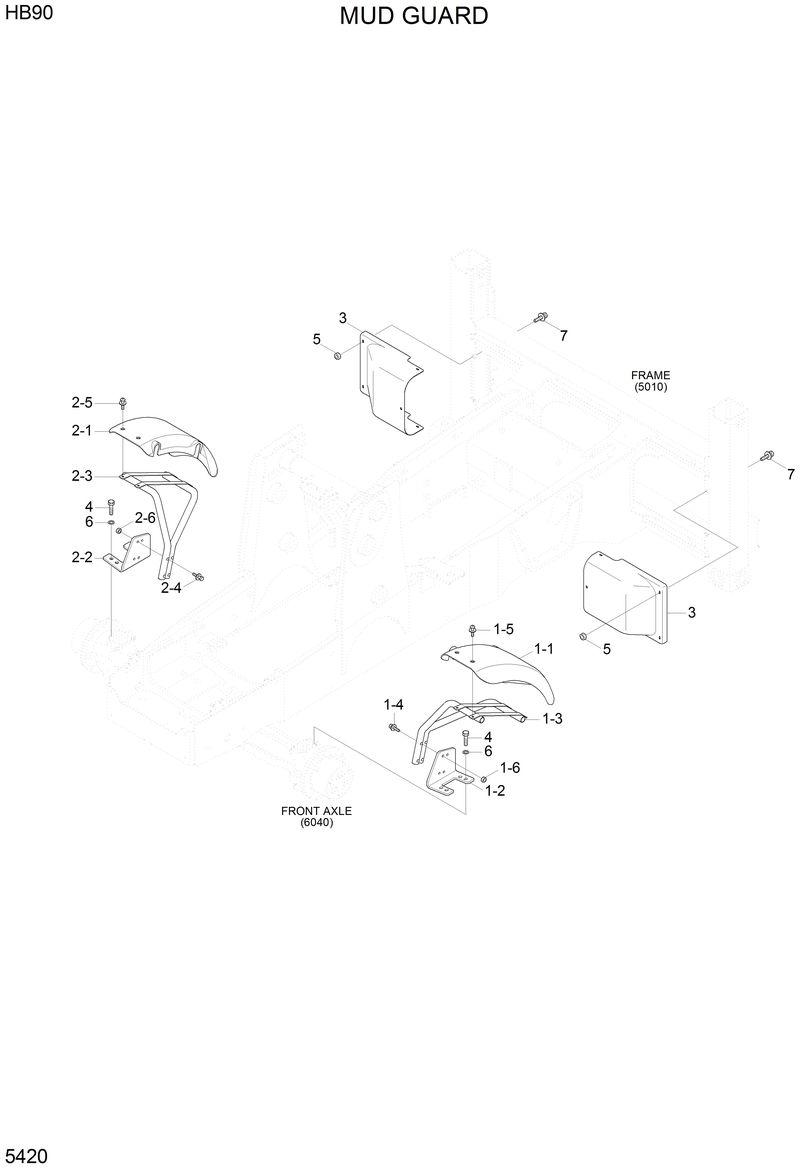

Запчасти Hyundai HB90 MUD GUARD

1

73U2-70010

73U2-70010-Fender Assy-Lh

1-1

73U2-70110

73U2-70110-. Fender-Lh

1-2

73U2-70120

73U2-70120-. Bracket-Lh

1-3

73U2-70130

73U2-70130-. Support-Lh

1-4

S037-106556

S037-106556-. Bolt-W/Washer

2

73U2-70020

73U2-70020-Fender Assy-Rh

2-1

73U2-70230

73U2-70230-. Support-Rh

2-2

73U2-70220

73U2-70220-. Bracket-Rh

2-3

73U2-70210

73U2-70210-. Fender-Rh

2-4

S037-106056

S037-106056-. Bolt-W/Washer

2-5

S132-082056

S132-082056-. Screw W/Washer Cr Rh

2-5

S132-082056

S132-082056-. Screw W/Washer Cr Rh

2-6

S285-10100B

S285-10100B-. Nut-Flanged

2-6

S285-10100B

S285-10100B-. Nut-Flanged

3

73U2-70030

73U2-70030-Guard-Stone

4

S017-16040D

S017-16040D-Bolt-Hex

5

S285-08100B

S285-08100B-Nut-Flanged

6

S441-160006

S441-160006-Washer-Hardened

7

S035-082556

S035-082556-Bolt-W/Washer
